• Model NO.：HZ5374
• Weight：0-100Kg
• Power Source：AC220V
• Power Supply：AC: 220V± 10%· 25A, 50Hz,60Hz
• Current Output：AC: 1000A· 5V or 500A· 10V
• Primary Current Range：0~1100A
• Resolution：0.1A;
• Working Environment：Temperature -10~40
• Accuracy：± 0.5%
• Transport Package：Wooden Box with Foam Inside;
• Specification：CE,ISO,IEC
• Trademark：Huazheng
• Origin：Hebei, China
• HS Code：9030339000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ5374 Weight 0-100Kg Power Source AC220V Power Supply AC: 220V± 10%· 25A, 50Hz/60Hz Current Output AC: 1000A· 5V or 500A· 10V Primary Current Range 0~1100A Resolution 0.1A; Working Environment Temperature -10~40 Accuracy ± 0.5% Transport Package Wooden Box with Foam Inside; Specification CE/ISO/IEC Trademark Huazheng Origin Hebei, China HS Code 9030339000 Production Capacity 100 PCS/Month

Product Description

HZ5374 High Current Generator Primary Current Injection Test Set 4000A

1.Name and Classification
(1) Name: HZ5374 4000A high current generator.
(2) Environmental group: It belongs to the group III instrument in GB6587.1-86 "General Survey of Environmental Measurement of Electronic Measuring Instruments" (that is, it can be used in outdoor environments).
(3) Input voltage: AC380V ±10%
(4) Power: 40KVA
(5) Output current: AC0~4000A stepless adjustable, panel with digital display ammeter
(6) Output voltage:(> 10V
(7) Output waveform: The output current is a standard sine wave with small glitches, which is better than the power system requirements index standard, and the ripple coefficient is less than 0.3%. Standard sine wave.
(8) Measurement accuracy: (Using 0.2S grade material) The actual is about 0.3; each current can be smoothly and continuously adjusted, the accuracy is higher than 0.5. The current and voltage meter shows true and effective value, high accuracy and high stability.
(9) Output current mode: true effective value is continuously adjustable;
(10) Current stability: 0.2%
(11) Structural form: one
(12) Wiring method: according to requirements
(13) Current stability: 0.2%;
(14) Protection settings: overcurrent and overvoltage;



Packing List

No.	Item	Qty
1	Main engine	1
2	Test line	2
3	Power line	1
4	Double core sheathed wire	2
5	Ground lead	1
6	Small clip	5
7	Insert	1

III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.



IV.Customer Visit



V.Exhibition

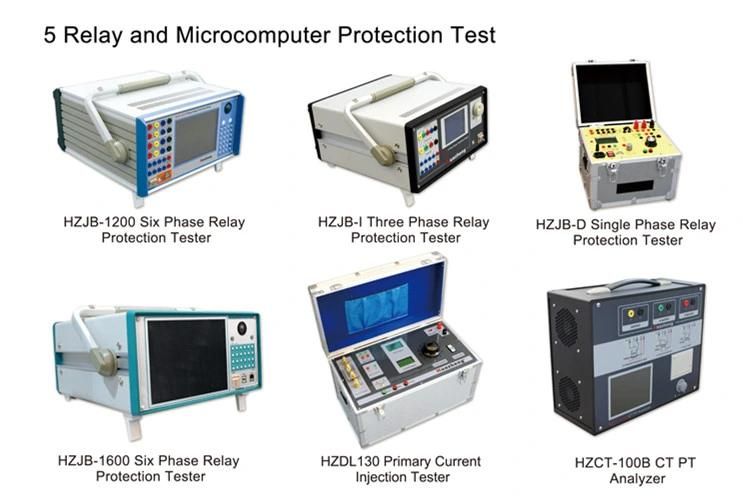

VI.Similar Recommendation
