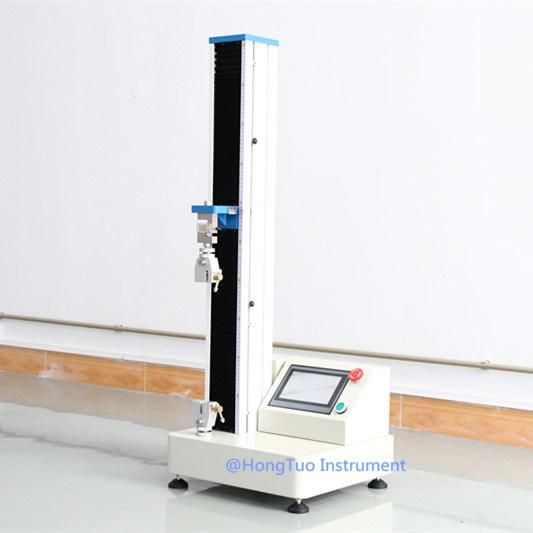

WDW-01S Electronic Universal Testing Machine With Single Column
DongGuan HongTuo Instruments Co., Ltd.- Type：Universal Testing Machine
- Certification：CE,FCC
- Maximum Force Load：0.1 kn
- Delivery Time：5-7 days
- Testing Before Delivery：Yes
- After-sale Customer Service：Yes
Base Info
- Model NO.：WDW-01S
- Stock：Yes
- Transport Package：Standard Exporting Wooden Package
- Trademark：DahoMeter
- Origin：Dongguan, China
- HS Code：9027809900
- Production Capacity：300 Sets,Month
Description
BrandHongTuo Model WDW-S -005 -01 -02 -05 -1 -2 -5 -10 Capacity KN 0.05kN 0.1 kN 0.2 kN 0.5kN 1 kN 2kN 5kN 10KN KG 5kg 10kg 20kg 50kg 100kg 200kg 500kg 1000kg lb Structure Double rail structure Three double rail structure Unit switching G,Kg,lb,N,KN Displacement unit switching Inch cm mm Test machine level 1class Effective force range 0.4%~100%FS Force accuracy Within ±0.5% Force decomposition 1/200 000 Force Power magnification X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting Displacement resolution 0.05mm Displacement accuracy Within ±1% Deformation measurement range 2%~100%FS Deformation indication accuracy Within ±1% Large deformation measurement range (0~800)mm Large deformation resolution 0.05mm Large deformation indication error limit Within ±1% Maximum test speed 500mm/min;optional maximum 1000mm/min Minimum test speed 0.1mm/min Speed accuracy Within ±1% Beam travel
Measuring height standard No grip testing stroke:920mm;With grip testing stroke:320mm optional No grip testing stroke:1320mm;With grip testing stroke:320mm Fixture configuration One set of tensile grip;can choose other grips Returning method Manual or automatic selection, automatically return after the test ends or manually return to the initial position Stop method 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop Safety devices 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake Overload protection Over 10% of maximum load, automatic machine protection Accessories 1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate Optional accessories Anti-splash device (protective door); printer Powder supply 220V.AC/ 50HZ; 110V.AC/60HZ Main host size/ weight Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG
Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG Packing size / weight Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG
Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG
Our Advantages

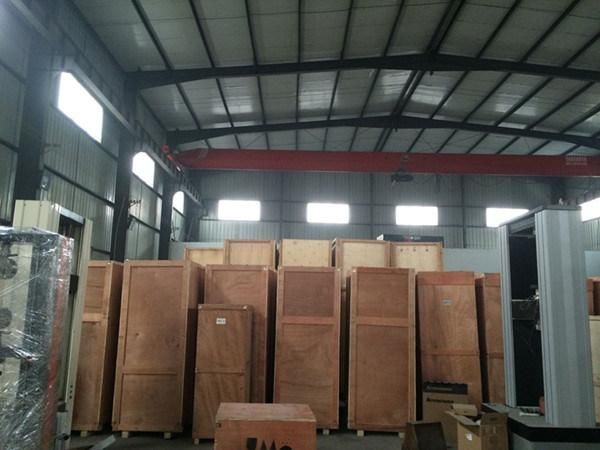

Packaging & Shipping
Company Information
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certification
Measuring height
Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG
Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG
Our Advantages
As leading manufacturer,we guarantee below:
- 100% Competitive price we are the original manufacturer for years, the large scale production make our products more competitive, that's the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.
- High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
- Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance.
- Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
- OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instrument.
