• Model NO.：BDYJ-502
• Measuring Precision：3%Rdg+0.3%Fs
• Test Times Setting：1-9
• Transport Package：Wooden Case
• Specification：71*42*53CM
• Trademark：Gold
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：300PCS,Month

Basic Info.

Model NO. BDYJ-502 Measuring Precision 3%Rdg+0.3%Fs Test Times Setting 1-9 Transport Package Wooden Case Specification 71*42*53CM Trademark Gold Origin Chongqing HS Code 9031809090 Production Capacity 300PCS/Month

Product Description

                              Transformer breakdown voltage BDV analyzer

Introduction:

The BDV analyzer is used to determine the breakdown voltage of transformer oil.It is widely used in power system, power distribution station, railway system, large petrochemical factories and enterprises which have a lot of electrical equipments. Its internal insulation are mostly oil-filled insulation type, so the test of dielectric strength for the insulating oil is necessary.

Functions:

1. Breakdown test of user-defined;
2. Proof test;
3. Calibration interface for customers;
4. Unloading data to PC and making word report automatically;
5. Result print

Specification:


Test standards	IEC156
Output voltage	AC 0~100KV
Rate of voltage rise	2KV/s±5%, 3KV/s±5%
Measuring precision	3%RDG+0.3%FS
Test times setting	1~9
Mixing time setting	0~99 second
Waiting time setting	0-9 minute 59second
Maximum storage capacity	100 groups of test data
Display	256*128 LCD
Rated power supply	AC 220V±10% 50Hz/60Hz
Environment temperatures	0-50°C
Relative humidity	≤80%RH
Size	420×430×330mm3
Weight	41kg
Oil Vessel	1
Printer	Yes

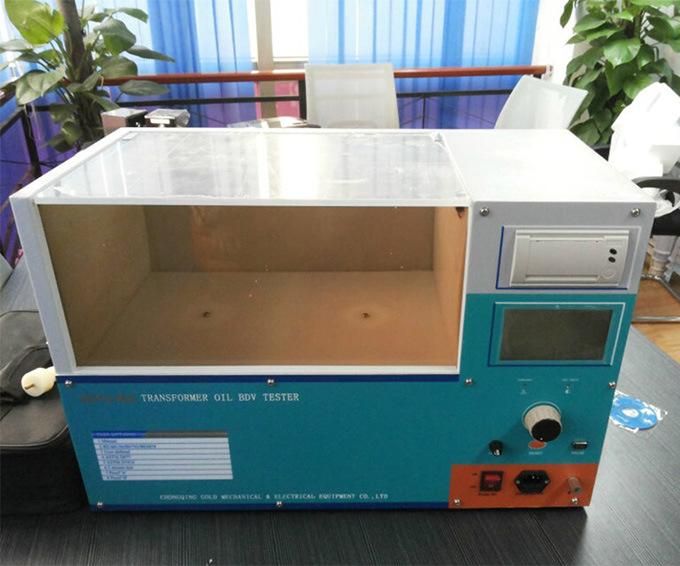

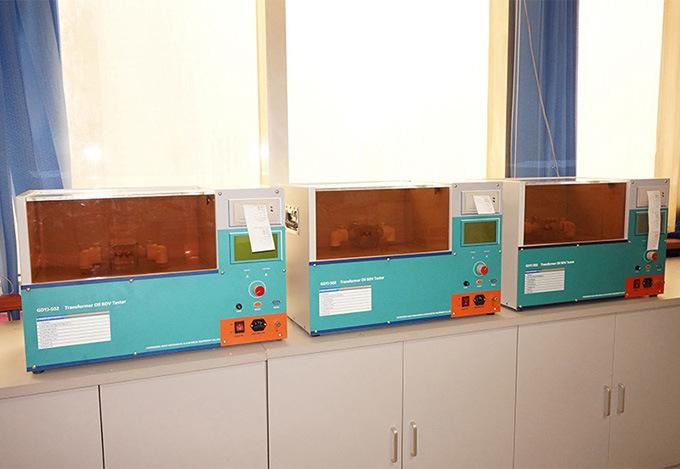

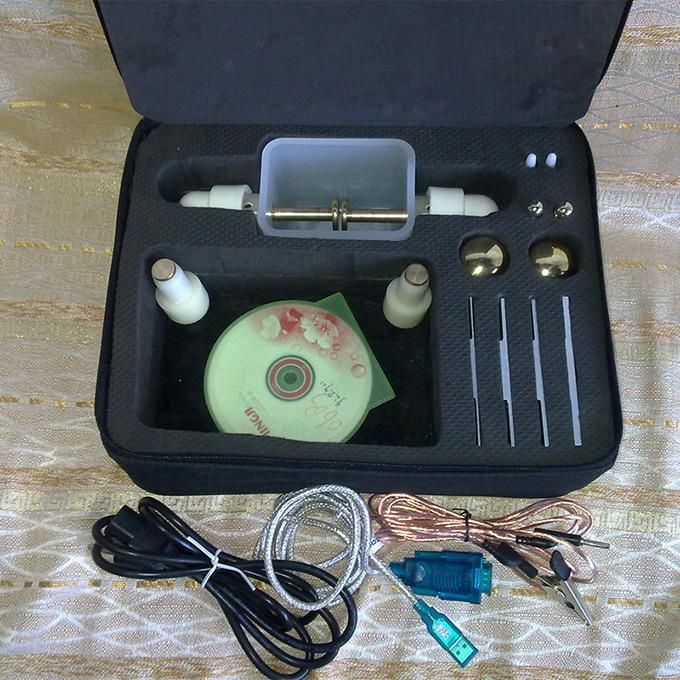

Product show:










About us:
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.

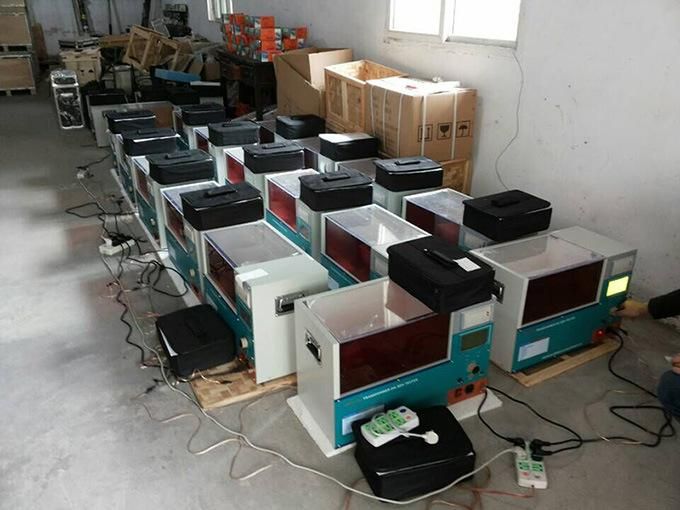

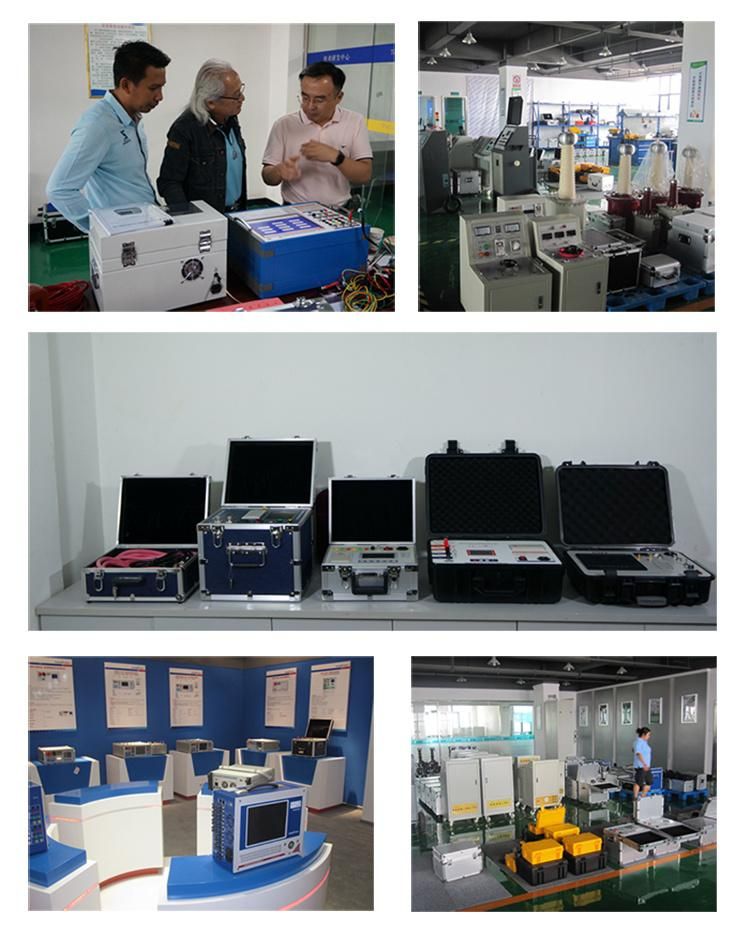

Workshop:




Exhibition:
