• Model NO.：PHW-5000
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：4500 mm
• Width：1100 mm
• Height：1900 mm
• Gross Weight：3800 mm
• Output Power：0.23 DC
• Colour：Jp Standard of Custom
• Package：Packaged in Fumigated Wood Box
• Delivery：Within 30 Days When Confirm The Order
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHW-5000 Loading Method Dynamic Load Display Needle Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Under Length 4500 mm Width 1100 mm Height 1900 mm Gross Weight 3800 mm Output Power 0.23 DC Colour Jp Standard of Custom Package Packaged in Fumigated Wood Box Delivery Within 30 Days When Confirm The Order Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

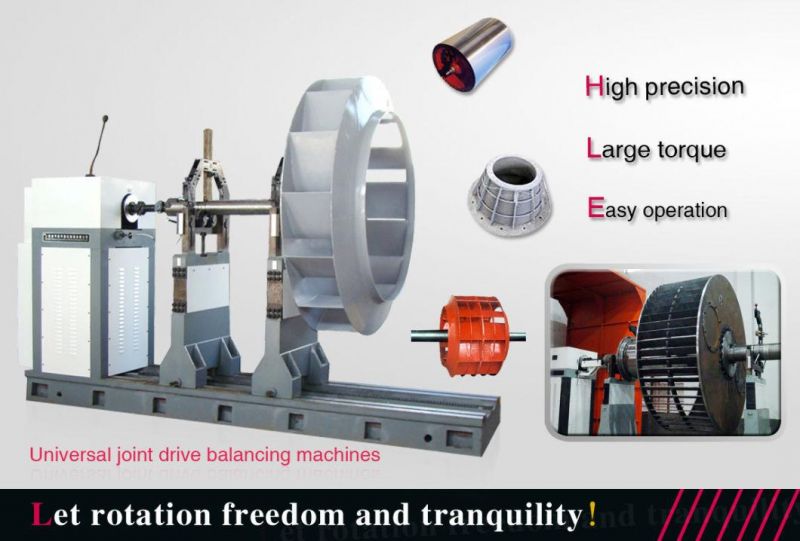

Multi-Stage Centrifugal Fan Impeller Balancing Machine with Good Quality



Production Description:

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface Range of Application:

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc



Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

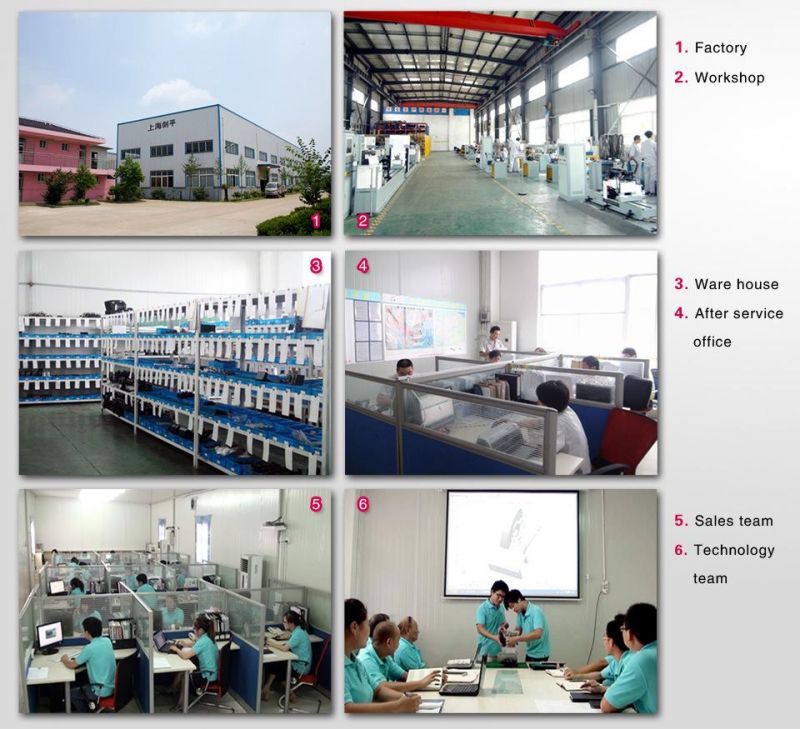

Factory Outlook:



Certificates:


Production Parameters:

Technical data at a glance	PHW-3000	PHW-5000	PHW-10000
Mass Scope of Workpiece (kg)	3000	5000	10000
Max Diameter of Workpiece (mm)	2400	2400	2800
Distance Between Two Support Bearings (mm)	Min:320	Min:320	Min:320
Journal Diameter Scope of Workpiece (mm)	40~380	40~380	40~380
Max Distance between Driving Flange and Right Bearing Support (mm)	1800	2500	2500
Rotation Speed of the Main Axis (r/min)	133,225,396,634, 970 +Stepless speed regulation	192,325,571,915, 1400 +Stepless speed regulation	192,325,571,915, 1400 +Stepless speed regulation
Motor Power (kw)	7.5 Frequency conversion	15 Frequency conversion	22 Frequency conversion
Torque of Universal Joint Shaft (N.m)	700	1250	1250
Min Achievable Residual Unbalance Amount (emar)	≤ 1g. mm/kg	≤ 1g.mm/kg	≤ 1g.mm/kg
