• Model NO.：PHQ-1.6,5
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Length：900 mm
• Width：700 mm
• Height：1150 mm
• Gross Weight：240 Kg
• Number of Pieces：1 Pieces
• Colour：Jp Standard
• Delivery：Within 30 Days When Confirm The Order
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month
• Package size per unit product：95.00cm * 95.00cm * 163.00cm
• Gross weight per unit product：258.000kg

Basic Info.

Model NO. PHQ-1.6/5 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Needle Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Length 900 mm Width 700 mm Height 1150 mm Gross Weight 240 Kg Number of Pieces 1 Pieces Colour Jp Standard Delivery Within 30 Days When Confirm The Order Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Packaging & Delivery

Package size per unit product 95.00cm * 95.00cm * 163.00cm Gross weight per unit product 258.000kg

Product Description

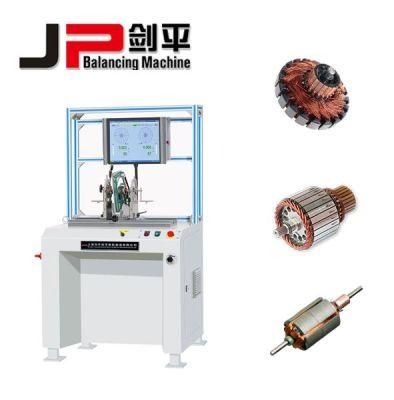

Jp Spinning Cups Rotor Balancing Machine with CE Certificate

High measuring accuracy and efficiency
Automatic measuring run
Automatic indexing
Integral slot counter as option
Over slung or under slung belt drive optional
Ergonomic workplace design for standing or seated operator

Production Description:

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Range of Application:

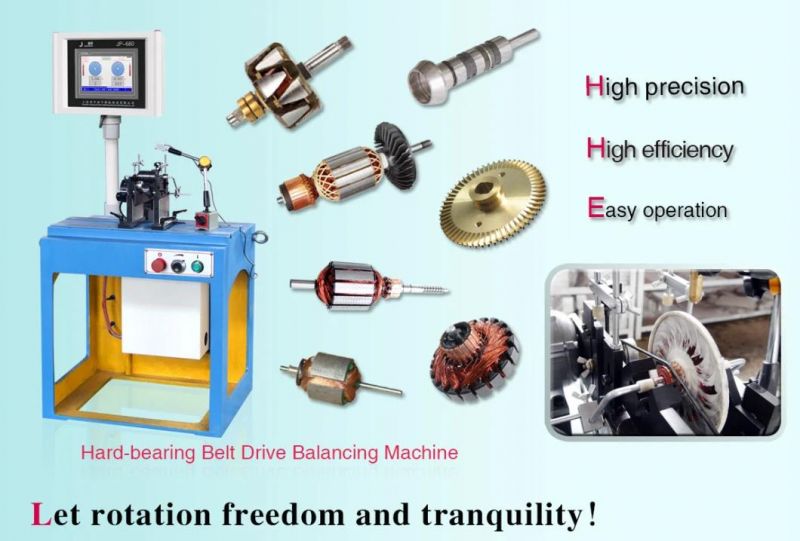

Spinning Rotor Horizontal Balancing Machine (PHQ-1.6)  is also widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

Special Features:

The measuring unit employs JP-380 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.

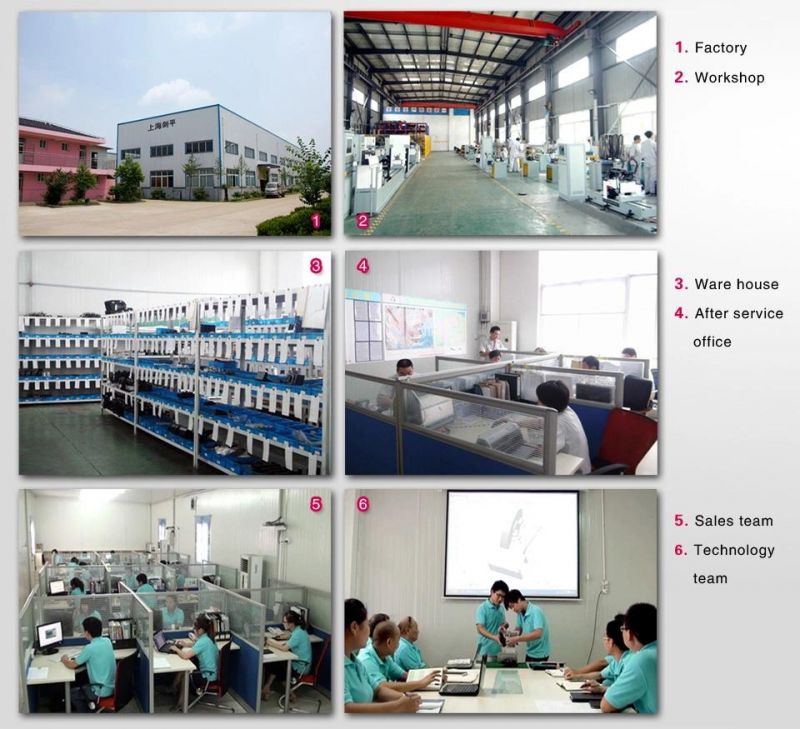

Factory Outlook:

Certificated


Production Parameters:

Technical data at a glance	PHQ-1.6/5
Max Mass of Workpiece (kg)	1.6/5
Max Diameter of Workpiece (mm)	260
Distance between Two Support Bearings (mm)	15-400
Journal Diameter Scope of Workpiece (mm)	3~40
Diameter Scope of Driving Belt (mm)	20~85
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	185,335,390,700 Stepless speed regulation
Motor Power (kw)	0.15DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg

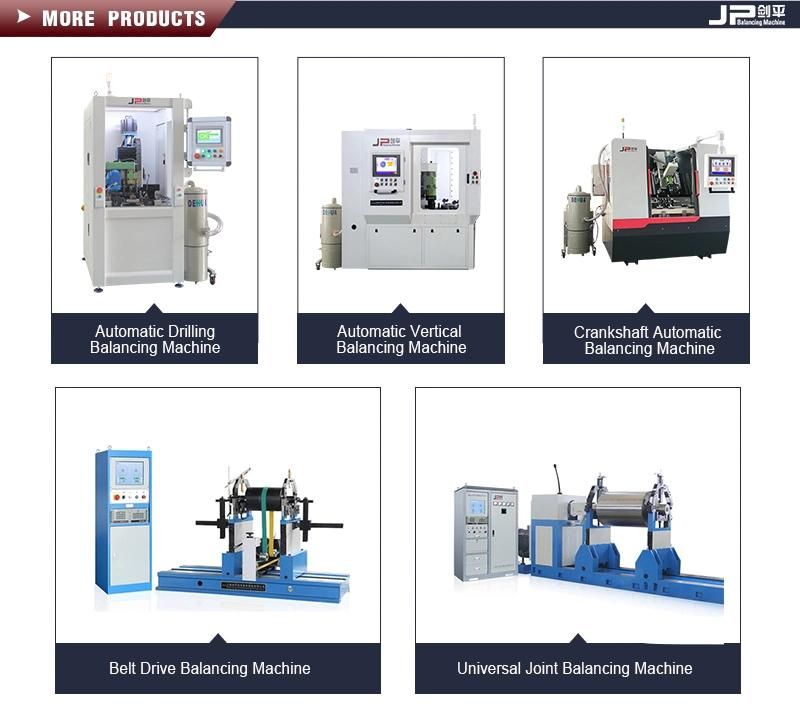

Feature products
