• Model NO.：PHQ-5A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Length：900 mm
• Width：700 mm
• Height：1150 mm
• Gross Weight：240 Kg
• Number of Package：1 Pieces
• Colour：Jp Standard
• Delivery：Within 30 Days When Confirm The Order
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-5A Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Length 900 mm Width 700 mm Height 1150 mm Gross Weight 240 Kg Number of Package 1 Pieces Colour Jp Standard Delivery Within 30 Days When Confirm The Order Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

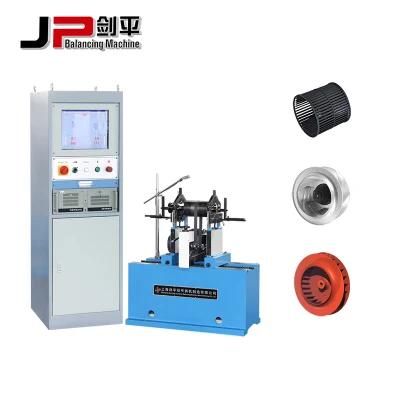

Jp Chemical Fiber Spindle Twister Rotor Balancing Machine

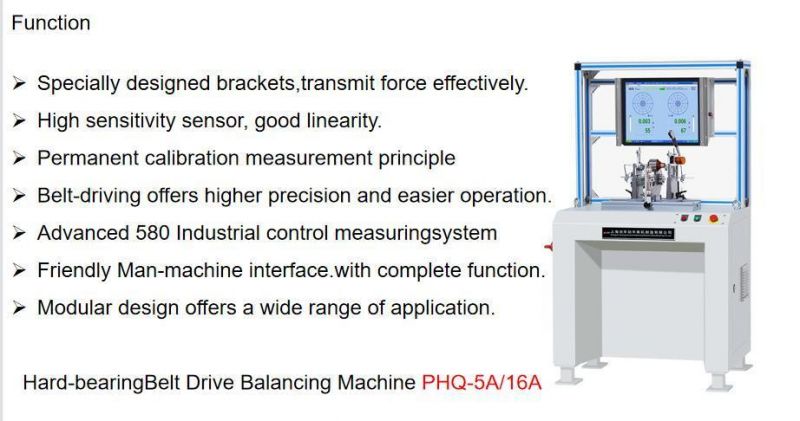

 Production Description


1 Specially designed brackets transmit mechanical force with low vibration damping and high rigidity

2 Durable and reliable sensor possesses good linearity
3 Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4 Belt-driving offers higher precision and easier operation
5 Advanced electrical measuring system and friendly man-machine interface
6 Modular design offers a wide range of application


Range of Application

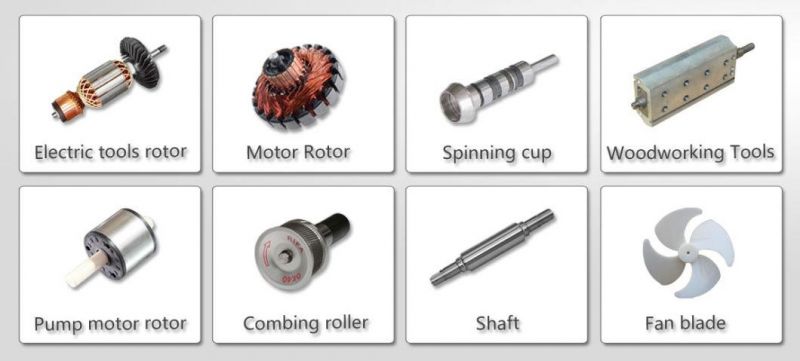

This balancing machine is widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency


Electrical Measuring System (Option)

Technical data at a glance	PHQ-1.6/5
Max Mass of Workpiece (kg)	1.6/5
Max Diameter of Workpiece (mm)	260
Distance between Two Support Bearings (mm)	15-400
Journal Diameter Scope of Workpiece (mm)	3~40
Diameter Scope of Driving Belt (mm)	20~85
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	185,335,390,700 Stepless speed regulation
Motor Power (kw)	0.15DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg
