• Model NO.：Motor Rotor Balancing Machine
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：2280 mm
• Width：850 mm
• Height：1500 mm
• Number of Package：2 Pieces
• Colour：Jp Standard or Custom
• Delivery：Within 25 Days
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Motor Rotor Balancing Machine Loading Method Dynamic Load Display Needle Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Length 2280 mm Width 850 mm Height 1500 mm Number of Package 2 Pieces Colour Jp Standard or Custom Delivery Within 25 Days Transport Package Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

Universally applicable
High balancing accuracy
Easy upgrading through modular structure and a wide range of accessories
Hard-bearing principle ensures fast change-over
JP-580 measuring instrument, with extensive operator prompting
Full range of safety equipment for all protection classes
Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount

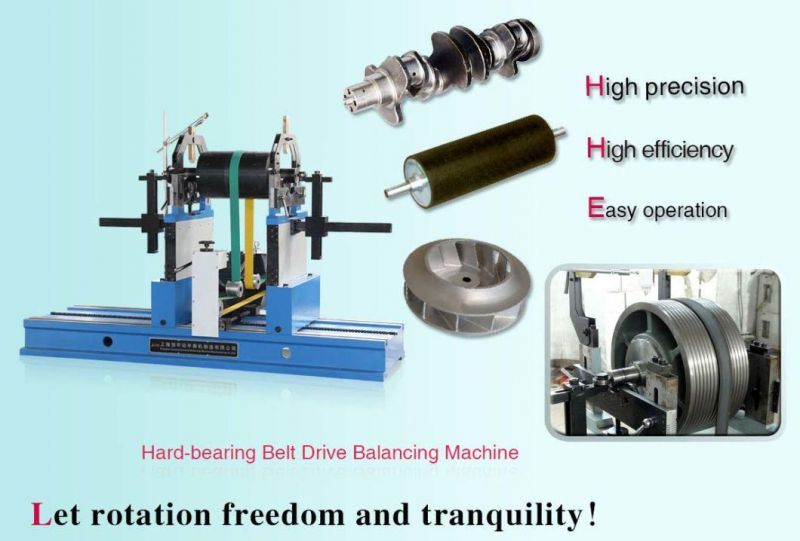

Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application


Range of Application

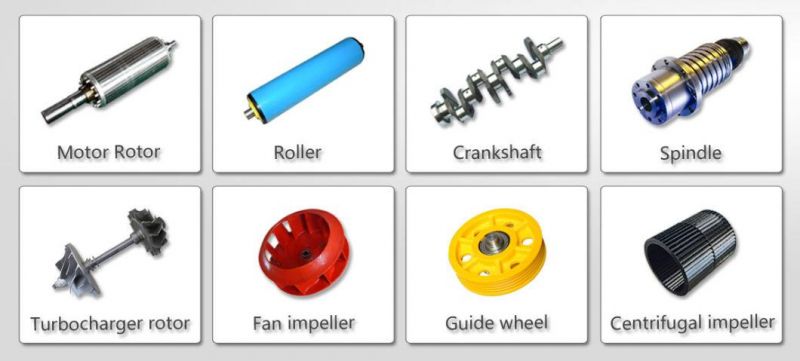

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency


Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

Production Parameters

Technical data at a glance	PHQ-1000H	PHQ-2000H	PHQ-3000H
Max Mass of Workpiece (kg)	1000	2000	3000
Max Diameter of Workpiece (mm)	1600	1800	2100
Distance between Two Support Bearings (mm)	160-1780	160-1780	160~2280
Journal Diameter Scope of Workpiece (mm)	25-240	25-240	25-240
Diameter Scope of Driving Belt (mm)	40-700	40-800	50-900
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	Stepless speed regulation	Stepless speed regulation	Stepless speed regulation
Motor Power (kw)	4 Frequency conversion	5.5Frequency conversion	7.5Frequency conversion
Min Achievable Residual Unbalance Amount(emar)	0.5g. mm/kg	0.5g. mm/kg	0.5g. mm/kg

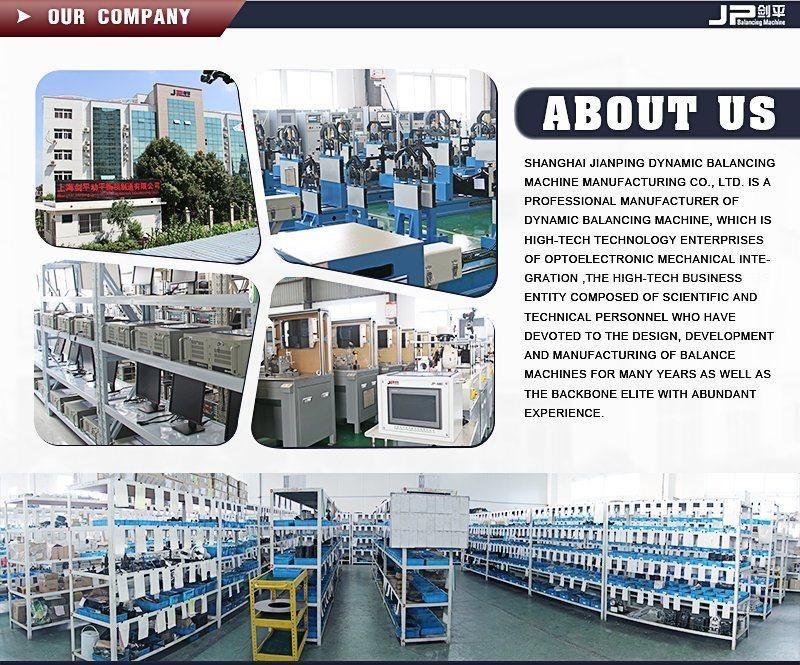

About us



Certificate

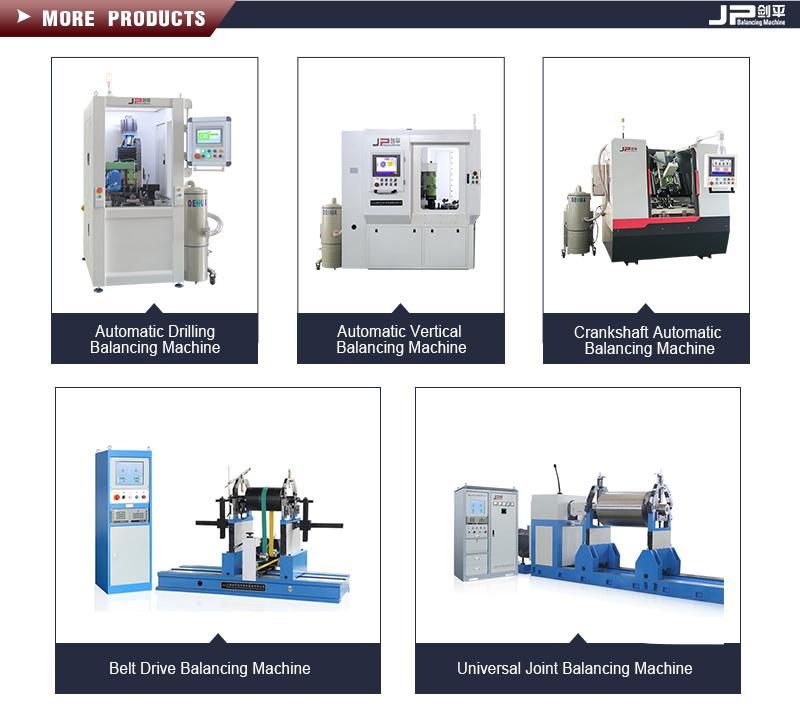

Feature Products
