• Model NO.：PHLD-100,200
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：1400 mm
• Width：1250 mm
• Height：1650 mm
• Gross Wieght：1050 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHLD-100/200 Loading Method Dynamic Load Display Needle Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Length 1400 mm Width 1250 mm Height 1650 mm Gross Wieght 1050 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

Special Balancing Machine with Vertical Drilling Machine (PHLD-100)

Production Description

Specially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
. Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

Range of Application

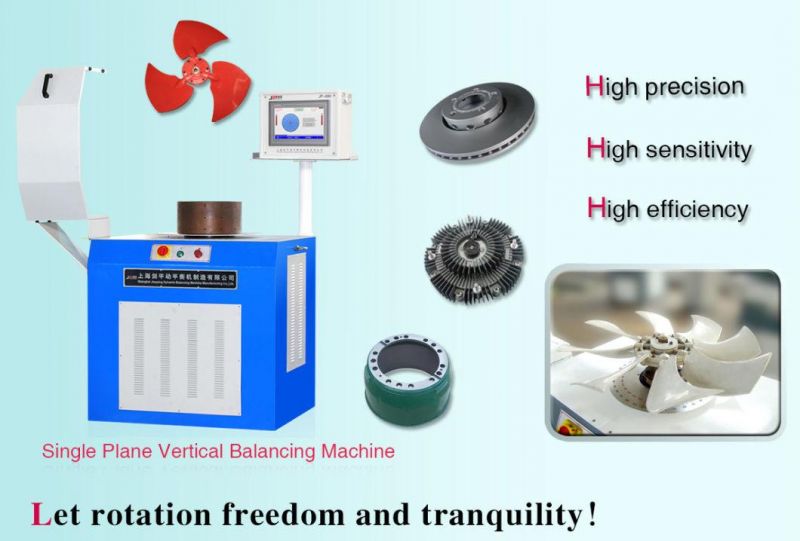

Special Balancing Machine with Vertical Drilling Machine (PHLD-100) is a new and also widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk, brake drum. Saw blade. Clutch, belt pulley, chuck, pump impeller, flywheel, grinding wheel, range hood fan, brake, torque converter, tool etc. High speed and precision are advanages of this balancing machine.
According to user's requirement, The machine can install de-weight device

Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters


Technical data at a glance	PHLD-100	PHLD-200
Max Mass of  Workpiece ( with clump) (kg)	100	200
Max Diameter of Workpiece (mm)	600 With hood 1000 Without hood	600 With hood 1000 Without hood
Height of Workpiecemm	200	200
Rotation Speed of Main Axis(r/min)	~1080	~1080
Motor Power(kw)	3variable-frequency	4variable-frequency
Min Achievable Residue Unbalace Amount (emar )	5g. mm/kg	5g. mm/kg

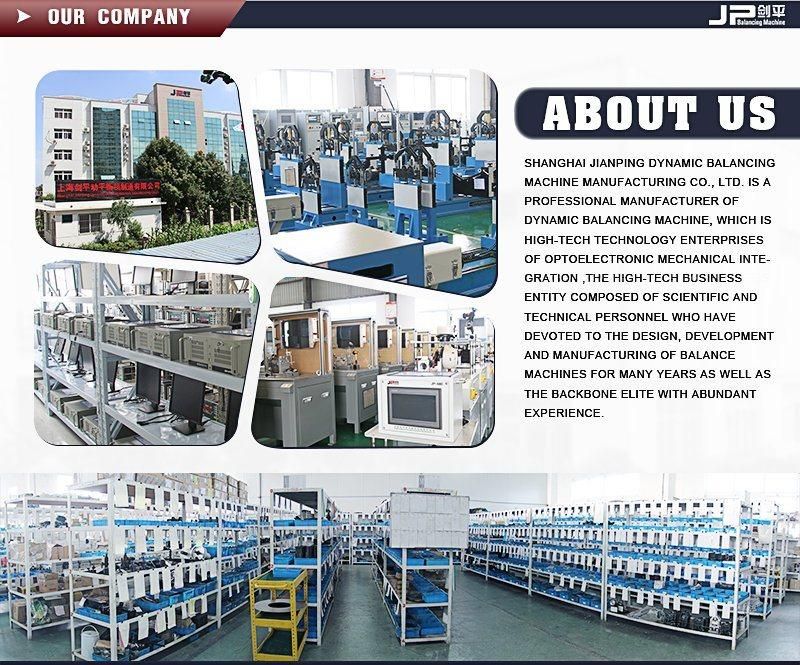

About us



Certifacate



Customers

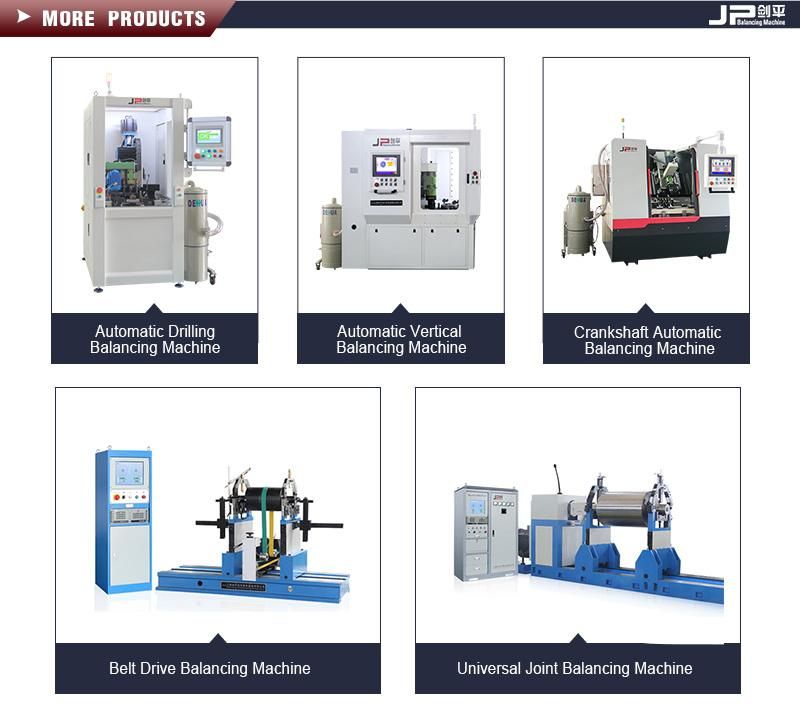

Feature Products
