• Model NO.：PHQ-50
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：1100 mm
• Width：900 mm
• Height：1300 mm
• Gross Wieght：540 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Technical data at a glancePHQ-50PHQ-160HPHQ-300HPHQ-500HMax Mass of Workpiece(kg)50160300500Max Diameter of Workpiece (mm)Φ700Φ1000Φ1220Φ1500Distance Between Two Support Bearings (mm)80~700130~1270130~1270130~1270Journal Diameter Scope of Workpiece (mm)Φ 8~80Φ 15~75³⁾Φ 15~75³⁾Φ 15~75³⁾Diameter Scope of Driving Belt (mm)Φ18~200Φmax400Φmax500Φmax600Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,1050¹⁾756,1176¹⁾756,1176¹⁾756,1176¹⁾Motor Power (kw)0.75²⁾1.5²⁾1.5²⁾2.2²⁾Length of Bed (mm) 150015001500Min Achievable Residual Unbalance Amount (emar)≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg1) Stepless speed regulation
2) Frequency conversion3) Can add to 75-180
4) Can add to 120-240


About us



Certifacate



Customers

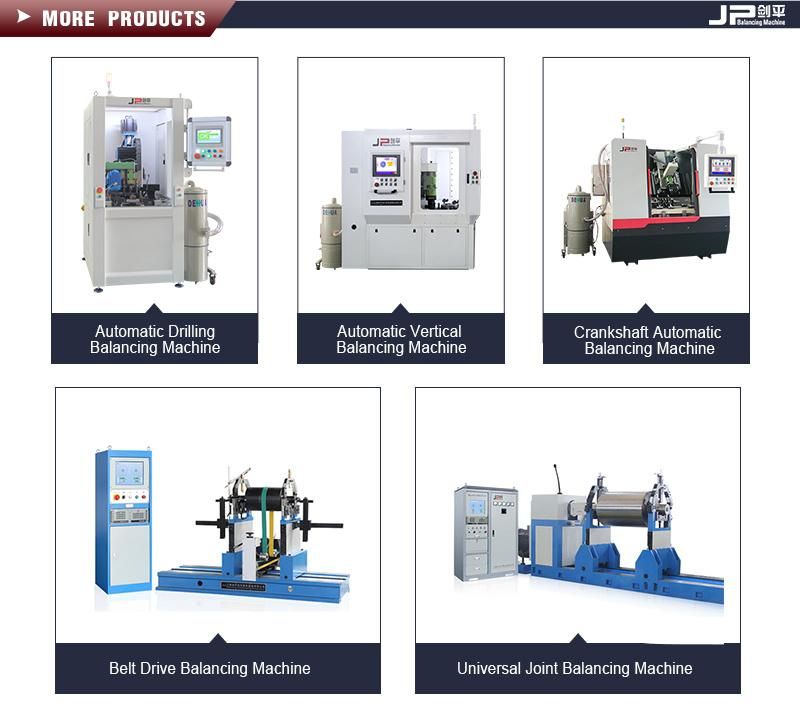

Feature Products
