Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

Shanghai Shinegil Trading Co., Ltd.
  • Max Diameter of Workpiece：2400mm
  • Mass Scope of Workpiece：<900kg
  • Type：Surge, Impact Immunity Test
  • Maxcapacity：Na
  • Accuracy Grade：Na
  • Load Way：Electronic Load

Base Info

  • Model NO.：SUR T10L
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Na
  • Product Name：Combination Wave Surge Generator
  • Application：Surge, Impact Immunity Test
  • Output Voltage：10kv
  • Power Supply：220V 50Hz (Custom)
  • Standard：IEC 61000-4-5
  • Warranty：12 Months
  • Custom Service：Available
  • Certificate：ISO9001
  • Transport Package：Export Wooden Case
  • Specification：weight: 80kg
  • Origin：Shanghai
  • Production Capacity：2000sets,Year

Description

ModelSUR T10LSurge WaveformOpen-circuit voltage wave: 1.2/ 50μs  10/ 700μs
Short-circuit current wave: 8/ 20μs    5/ 320μsOutput Voltage0.2~ ± 10kVPolarityPositive/ negative/ alternatingPhase Angle0~ 359°synchronous, asynchronous, or automaticEffective output impedanceIntegration waveform: 2Ω (common mode 12Ω)
Telecom/ communication waveform: 15Ω/ 40ΩCoupling/ decoupling networkBuilt-in, three-phase five-wire, AC380V/ 16A
(customer specific on demand)Coupling modeDifferential mode 18μF, common mode 9μF/ 10ΩCount1~ 9999Interval10~ 9999sPower SupplyAC 220V ±10% 50/ 60HzOperation Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

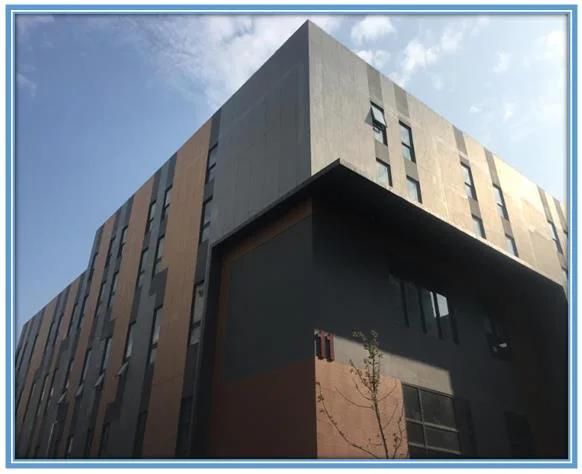

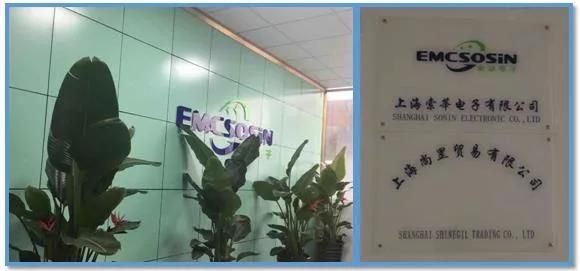

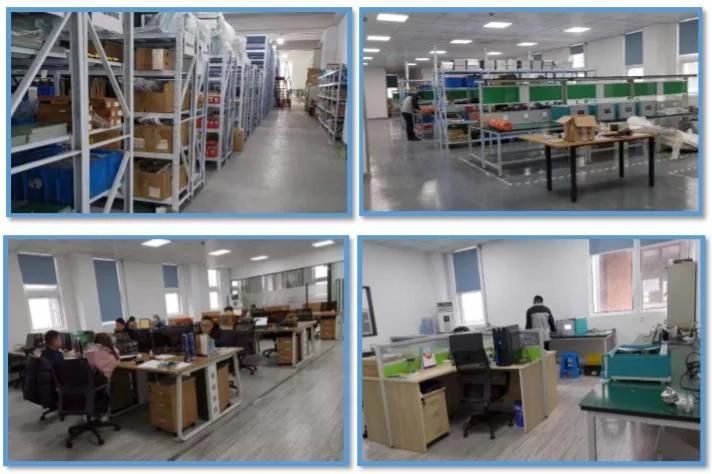

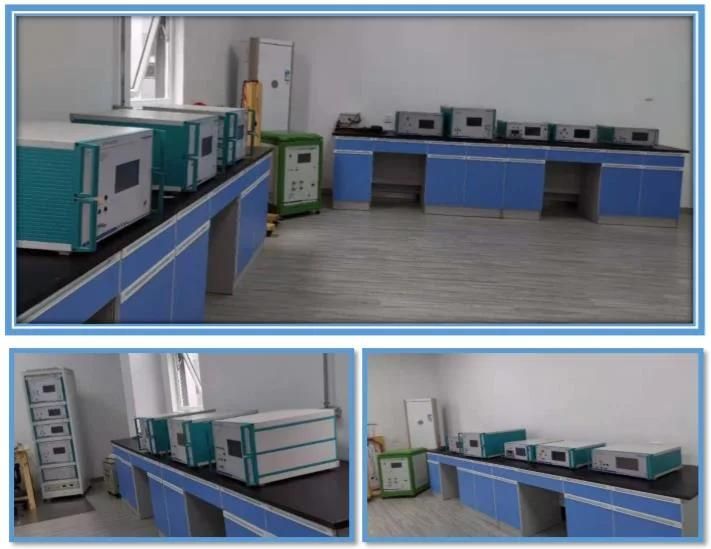

Manufactory and Office
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

Qualification and Certificate
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

Our Client
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

Packing
Combination Wave (Surge) and Telecom Surge Generator up to 10kv (SUR T10L)

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
