Hot and Cold Impact Thermal Shock Test Chamber Environmental Test Chambers
Guangdong Komeg Industrial Co., Ltd.- After-sales Service:24 Hours on Line Services
- Power Supply:380V ,220V
- Certification:CE, ISO
- Warranty:1 Year
- Company Philosophy:Integrity, Innovation, Service, Win-Win
- Customize:Available
Base Info
- Model NO.:KTS-300A
- Temperature Fluctuation:≤1ºC
- Air Door Conversion Time:Within 5 Sec
- Impact Transition Time:Within 5 Min
- Structural Features:Overall Chamber Structure
- Cooling Method:Water-Cooled Condenser
- Compressor:German Bitzer or Copeland Compressor
- Test:Thermal Stress Testing
- Cable Holes:Diameter of 50mm, 100mm, 150mm
- Transport Package:Standard Exported Fumigation Wooden Case
- Specification:Standard and Customized
- Trademark:KOMEG
- Origin:Dongguan China
- HS Code:90321000
- Production Capacity:1000PCS,a Year
Description
SpecificationsNote:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available Model KTS-D Series 72D 100D 150D 200D 252D 300D Interior size W(mm) 450 500 600 670 700 800 H(mm) 400 450 500 600 600 600 D(mm) 400 450 500 500 600 650 Exterior size W(mm) 1490 1540 1640 1720 1750 1850 H(mm) 1790 1840 1890 2000 2000 2000 D(mm) 1600 1700 1830 1850 1930 1980 Test weight ( KG ) 5 10 12 15 18 20 Low Temp. chamber -80 °C~ -10 °C Pre-heat time +20 °C~ -80 °C ,Within 60 mins Test. chamber -65 °C~ +150 °C High Temp. chamber +60 °C~ +200 °C Pre-heat time +60 °C~ +200 °C ,Within 20 min Recovery time High-Temp Exposure 30 min Low-Temp Exposure 30 min Recovery time within 5 min Safety device No fuse breaker, overpressure overheat and over current protection for compressor,over-temperature protection,
overload protection for the blower, dry heat protection Standard accessory Cable port(portΦ50mm)*1, shelves*2 Interior material Stainless steel plate ( SUS 304 ) Exterior material Baked painting steel or stainless steel(SUS304) Insulation material Rigid polyurethane Foam+glass fiber wool Refrigeration system Water Cooled Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 ) Controller Panel:7-inch LCD Touch Screen panel, Chinese or English display selectable Operation model: Program or fixpoint running Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV Ambient Temp. +5 °C~ +35 °C (41 ~ 95 ° F) Power AC 380±10 % 50Hz,3 phase 4 wires +Ground Wires

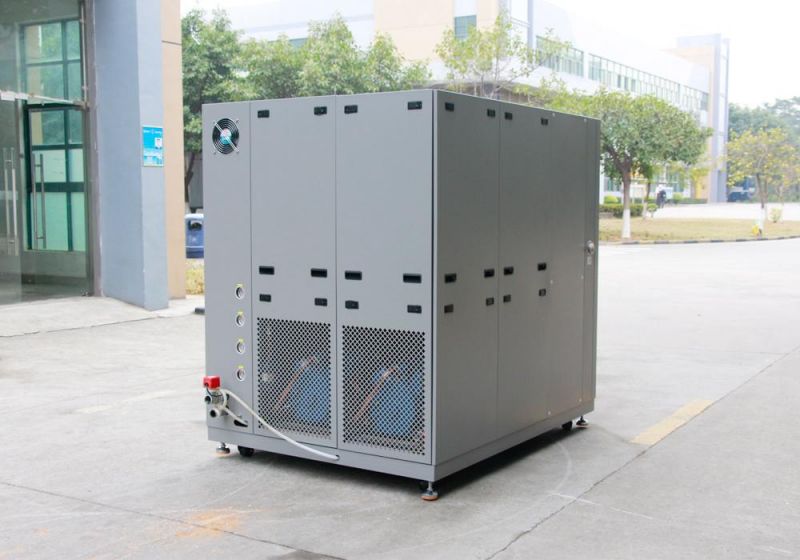

IV.More Details of Thermal Shock Test Chambers


V. Our Company




VI.FAQ
Q1. Quality Control System?
A: KOMEG Technology Ind Co., Ltd strictly perform 6S rule, and apply the ISO9000 and ISO14001 Quality control system and strictly carry out in every production stage: from the materials and spare parts suppliers selecting, checking before stocking, to test chambers commissioning, packing, delivery.
Q2. Trade term supported?
A: KOMEG support EXW, FOB, CNF, DAP, DDU, DDP, etc.
Q3. Payment Supported?
A: KOMEG support T/T, L/C AT SIGHT, etc.
Q4. Main Markets:
A: English and Russian markets like Asia, Europe, Oceania, America;
Mainly customers are from industries of electronics, materials testing labs, battery, automotive, LED, Solar panels, etc.
