• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Needle
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Mechanical
• Function：Steel Bar Strength Testing
• Weight 1：1500-1800kgs
• Bar Diameter：6-40mm 20-50mm
• Rotating Speed：3.7r,Min
• Central Distance：165mm
• Working Plate Diameter：760mm
• Transport Package：Plywood Standard Package
• Specification：1200*1000*960
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：8000 Sets Per Year

Basic Info.

Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Needle Control Manual Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Mechanical Function Steel Bar Strength Testing Weight 1 1500-1800kgs Bar Diameter 6-40mm 20-50mm Rotating Speed 3.7r/Min Central Distance 165mm Working Plate Diameter 760mm Transport Package Plywood Standard Package Specification 1200*1000*960 Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 8000 Sets Per Year

Product Description

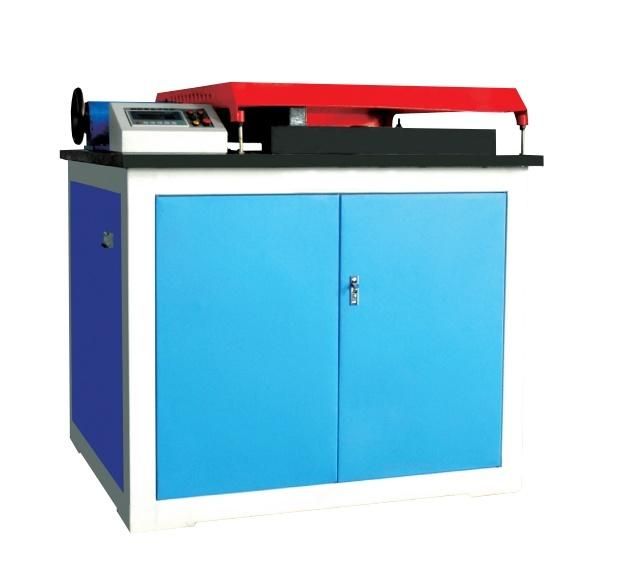

steel bar/rebar Hydraulic Reverse Bending Testing machine for process plane rebend test for Cold Rolled steel bar

1. Feature and Usage
Steel bar bending machine is to flat steel is reverse bend test, test equipment, the equipment main technical parameters and indexes accord with YB/T5126-2003 / / GB5029 GB1499.2-2007-85 "steel flat reverse bend test method" requirement.
For the steel mills and the construction unit test an experimental equipment reinforced bar inflection performance, at the same time to adapt to the fan in the construction industry field of reinforced bending, used to test and construction.Is the original GW - 2/25 type and GW - 2140 type of alternative products, by changing the different parts with one machine can replace the two machine, saved money for our customers.
The complete equipment performance, good quality and have compact structure small volume, simple operation easy to master, 36 v safety voltage control, digital display intuitive bending Angle, smooth operation low noise, use reliable long life, simple design reasonable maintenance convenient lubrication and so on. Characteristic is limit and the vulnerability of a design more reasonable, easy to replace parts, so long service life.

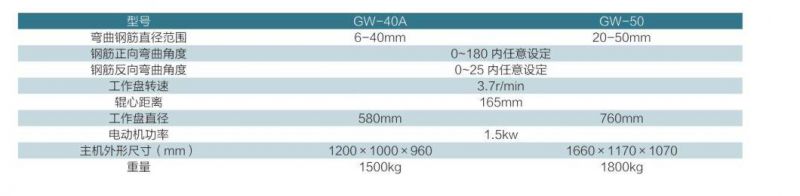

2. Technical Specification :
