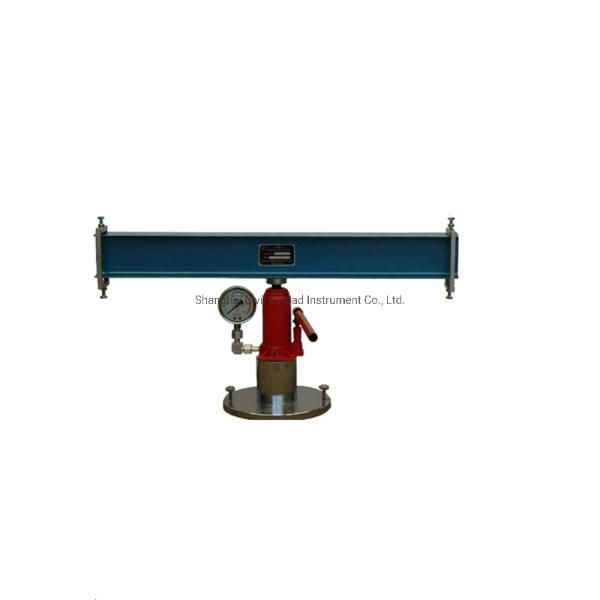

Field Cbr Loading Presses Plate Test Apparatus
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：65kgs
- Type：Field Cbr Loading Presses Plate Test Apparatus
- Maxcapacity：No
Base Info
- Model NO.：STYC-1
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Digital
- Control：Manual Control
- Weight：65kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Styc-1 Field Cbr Loading Presses Plate Test Appara
- Application：Material′s Rebound Modulus on The Road Surface.
- Max. Load：60kn
- Timing Range of The Bearing Plate：Dia 300mm
- Stroke of The Jack：120mm
- Transport Package：Wooden Case
- Specification：0.18CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STYC-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Manual Control Weight 65kgs Power Source AC220V Oil Cylinder Position No Product Name Styc-1 Field Cbr Loading Presses Plate Test Appara Application Material′s Rebound Modulus on The Road Surface. Max. Load 60kn Timing Range of The Bearing Plate Dia 300mm Stroke of The Jack 120mm Transport Package Wooden Case Specification 0.18CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STYC-1 Field CBR Loading Presses Plate Test Apparatus| Product name | STYC-1 Field CBR Loading Presses Plate Test Apparatus |
| Application | It's mainly used for directly determine roadbed soil, full floor road surface material and road surface structure layer material's rebound modulus on the road surface. |
| Max. Load | 60kN |
| Timing range of the bearing plate | Φ300mm |
| Stroke of the jack | 120mm |
