• Model NO.：STDS-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：20kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Motorized Casagrande Method Liquid Limit Device
• Falling Frequency of The Disc：120hit,Min
• Infall Frequency of The Disc：120 Strikes,Min
• Feature：Embedded a Strike Counter
• Standard：Complies to Astmd4318,BS1377:2
• Component：Consist of an Adjustable Crank and Cam Mechanism
• Transport Package：Wooden Case
• Specification：51x39x27cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STDS-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 20kg Power Source AC220V Oil Cylinder Position No Product Name Motorized Casagrande Method Liquid Limit Device Falling Frequency of The Disc 120hit/Min Infall Frequency of The Disc 120 Strikes/Min Feature Embedded a Strike Counter Standard Complies to Astmd4318/BS1377:2 Component Consist of an Adjustable Crank and Cam Mechanism Transport Package Wooden Case Specification 51x39x27cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

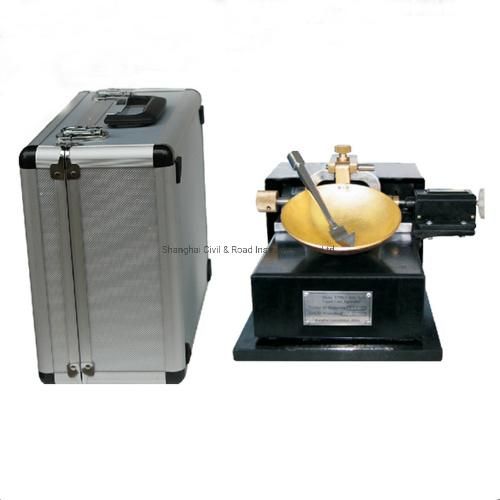

STDS-1 Motorized Casagrande method liquid limit  device
Description: The apparatus contains a brass pan, which is used to accommodate soil specimens, a base made from fine vulcanite, an impacting device, that is to say, a cam, which is used to set the distance between the pan and the base at 1 cm, a calculator and a groove handler.
It is used to determine the liquid limit of the soil, to classify the soil, to provide soil consistency and plastic index needed in design and construction.

Specification:

Falling frequency of the disc	120hit/min.
Infall frequency of the disc	120 strikes/min
Feature	Electric motor as power     Embedded a strike counter
Standard	Complies to ASTMD4318/BS1377:2 The Standard Method of Soil Liquid Limit test.
Component	The devices consist of an adjustable crank and cam mechanism, a blow counter and a removable brass cup fitted on the base
