• Model NO.：HD-F750-2
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Operation：Easy to Operate
• Control and Display：Computer
• Capacity：200kg
• Unit：Kg, N, Lb
• Max Stroke：500mm
• Test Speed：0×500mm,Min
• Motor：Servo Motor
• Power：Single Phase, 220V, 50Hz
• Dimension：790×590×1010mm
• Transport Package：Strong Case
• Specification：ASTM
• Trademark：Haida
• Origin：Dongguan
• HS Code：9024
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HD-F750-2 Control Computer Control Weight 100-500Kg Power Source AC220V Operation Easy to Operate Control and Display Computer Capacity 200kg Unit Kg, N, Lb Max Stroke 500mm Test Speed 0×500mm/Min Motor Servo Motor Power Single Phase, 220V, 50Hz Dimension 790×590×1010mm Transport Package Strong Case Specification ASTM Trademark Haida Origin Dongguan HS Code 9024 Production Capacity 30 Sets Per Month

Product Description

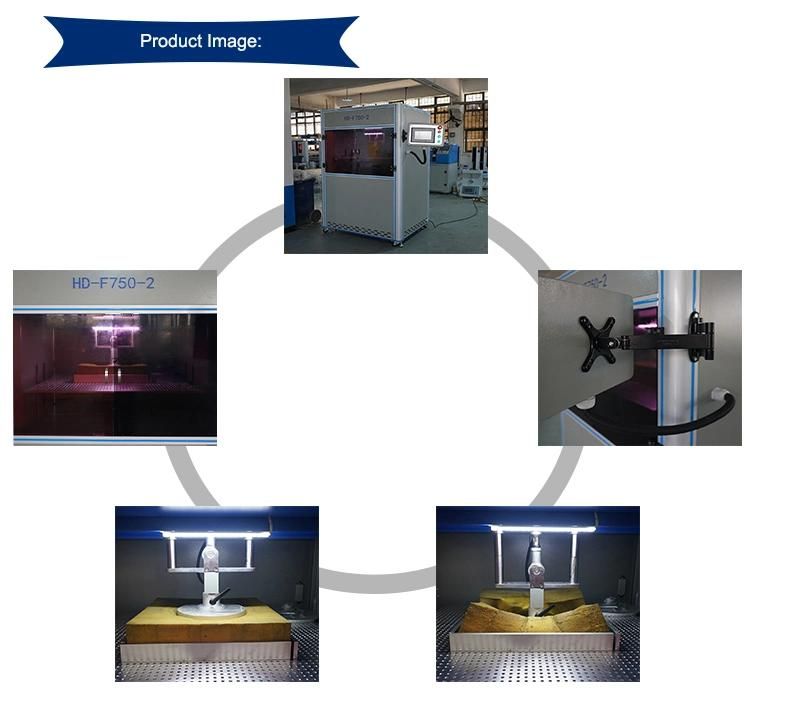

Professional Design ASTM-D3574 Foam Compression Pressure Test Equipment
Principle of equipment:
Foam compression pressure testing equipment is designed to simulate the continuous rolling of human sleep, with a cylindrical or hexagonal loading drum to repeatedly load the test site of a horizontally placed mattress to test its ability to withstand long-term repetitive loads.
The equipment is to place the specimen under the pressure plate, the pressure plate compresses the specimen at the specified speed until the concave degree required by the national standard. The load cell feeds the pressure back to the computer, which handles and displays it, and then measures the indentation hardness of the sponge, foam and other materials.At a specified speed until the national standard requires concave surfaces, load cells feedback pressure to the computer, which processes and displays, and then measures the indentation hardness of sponges, foam and other materials.

Application:
test material compressed indentation hardness, such as sponge, foam and other porous elastic.

Design standard:
ASTM D 3574

Main features:
1. Automatic zeroing: after the computer receives the instruction to start the test, the system automatically zeroing.
2. Automatic return trip: after the sample is fractured, it will automatically return to the initial position.
3. Automatic gear shifting: different gears can be switched according to the size of the load to ensure the measurement accuracy.
4. Change the speed: the machine can change the test speed arbitrarily according to different samples.
5. Indicator calibration: the system can realize accurate calibration of force value.
6. Control method: test force, test speed, displacement, strain and other test methods can be selected according to test needs.
7. Multi-purpose for one machine: equipped with sensors of different specifications, multi-purpose for one machine can be realized.
8. Curve traversal: after the test is completed, the point-by-point force value and deformation data of the test curve can be found with the mouse and analyzed.
9. Display: dynamic display of data and curve test process.
10. Results: the test results can be accessed and the data curves can be analyzed.
11. Limit: with program control and mechanical limit.
12, overload: when the load exceeds the rated value automatically stop.

Specification:

Control and display	Computer
Sensor	Load cell
Capacity	200KG
Unit	Kg, N, LB
Up plate	Diameter 200mm, bottom fillet R1mm
Low plate	420×420mm, holes diameter 6mm, space 20mm
Max stroke	500mm
Test speed	0~500mm/min
Motor	Servo motor
Driver	Taiwan high precision ball screw
Power	Single phase, 220V, 50Hz
Weight	160KG
Dimension	790×590×1010mm
Accessories	One computer with software

The above parameters are machine standard parameters and can be customized according to your requirements



The introduction of Haida


FAQ:

1.What about the after-sale service?
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

2.What about the power supply?
We have Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

3.Are the technical parameters of the instrument in conformity with national standards?
Hello, each instrument of haida is designed and produced in accordance with national standards. If you have specified parameter requirements, we can also design non-standard products for you. You can also bring samples to our factory for testing and inspection.

4.Your factory is in guangdong, and the equipment needs to be used in other provinces or abroad. Will it be difficult for distribution and service?
Hello, our company covers a wide area, in Hong Kong, fujian, hunan, hubei, jiangxi, zhejiang, jiangsu, guangxi, tianjin, chongqing and other places have group branches; If you are an overseas enterprise, you will be assigned a professional international business team. No need to worry about distribution and service.

5.What about the package?
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
