• Model NO.：SYE-2000BS
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Export Standard Package: Wooden Case.
• Specification：2000KN
• Trademark：C-tech
• Origin：China
• HS Code：90248000
• Production Capacity：100sets,Month

Basic Info.

Model NO. SYE-2000BS Control Manual Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position Under Transport Package Export Standard Package: Wooden Case. Specification 2000KN Trademark C-tech Origin China HS Code 90248000 Production Capacity 100sets/Month

Product Description

COMPRESSION TESTING MACHINE

SYE series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load, digital display the value of pressure and ratio of loading. it can save and print the test result directly by the controller. it also can be eqquipped with computer to show the load curve and process the date.


Main features
•  Meet the requirements of EN 12390-4 ASTM C39, AASHTO T22
•  Tests 200, 150 and 100 mm concrete cubes and cylinders up to 320 x 160 mm diameter
•  Platen handling machines include BS 6073-1, EN 772-1 specifi cation rectangular platens.
•  Supplied with Windows download software.




Technical Parameters


Model	SYE-2000BS

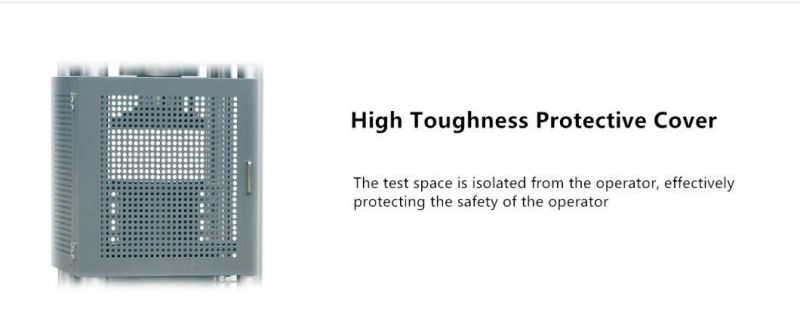

Features	Manual load, Protect cover
Max load capacity	2000kN

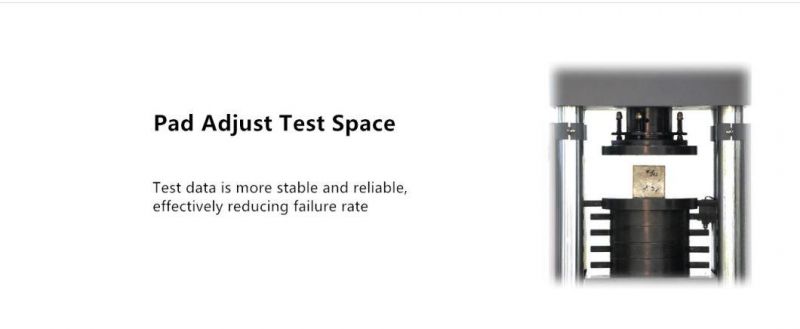

Compression space	360mm
Piston stroke(mm)	120
Size of upper compression plates(mm)	dia.300
Size of lower compression plates(mm)	dia.300
Dimension(load frame mm)	900×400×1250
Power(kW)	380V(220V optional), 50Hz(60Hz optional), 1.3KW
Weight(kg)	900
