• Model NO.：hm801
• Power Source：AC220V
• Power Consumption：< 200 W
• Model：Transformer Oil Bdv Tester
• Transport Package：Wooden Box with Foam Inside
• Specification：420*310*315mm3
• Trademark：GDHM
• Origin：Hubei, China(Mainland)
• HS Code：9027809900

Basic Info.

Model NO. hm801 Power Source AC220V Power Consumption < 200 W Model Transformer Oil Bdv Tester Transport Package Wooden Box with Foam Inside Specification 420*310*315mm3 Trademark GDHM Origin Hubei, China(Mainland) HS Code 9027809900

Product Description

 80kv 100kv Transformer Loss Tangent Tan Delta Test Set

I. Summary

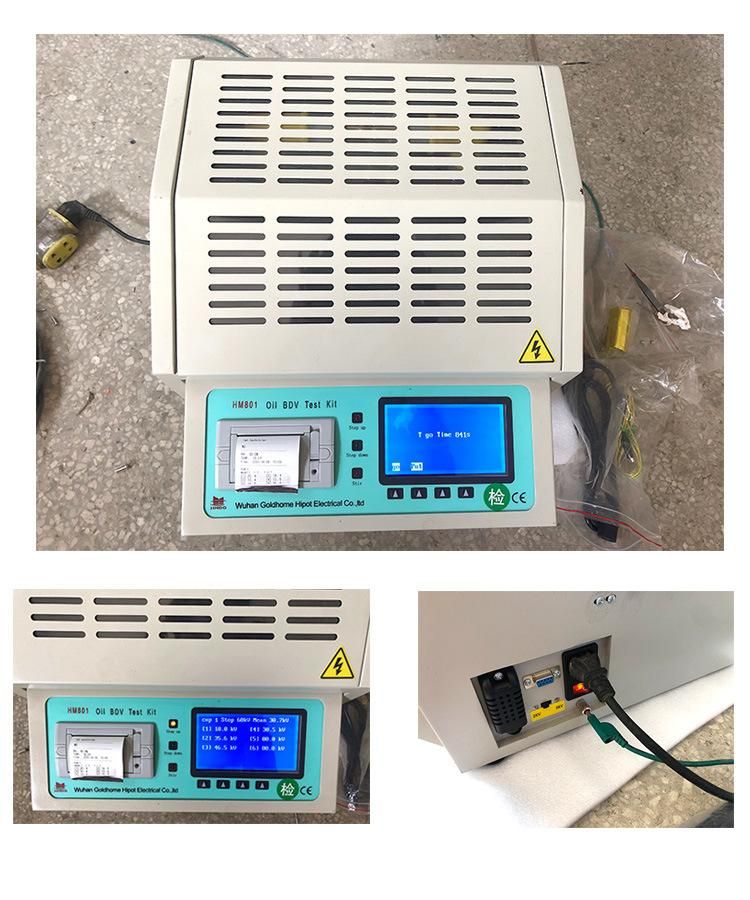

Portable Insulating Oil Breakdown Voltage Bdv Tester  is mainly used for measure breakdown voltage of insulation oil accurately.  It's preprogrammed with worldwide acceptable standards, with colorful large LCD display, available to store test result and built in thermal printer for on-site report.

Hot tags : Oil BDV tester, Oil BDV test kit,breakdown voltage tester
II.Main Features

1. Adopt with big capacity single-chip microcomputer control, quite stable and reliable in test.
2. Available to save 100 tested results and displaying current ambient temperature and humidity.
3. The large LCD display with menbrane key pad for easy operation.
4. Possible to avoid crash due its special wide range circuit design .
5. Avoid oil leakage, due to oil cup is single pouring and finishing by special glass .
6. With over current, over voltage, short circuit protection functions, strong anti-interference ability, and good electromagnetic compatibility.

III. Technical index
1. 1.5 kVA booster capacity
2. The pressure rise rate of 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four gears
3. The output voltage of 0 ~ 80 kV (optional)
4. Voltage accuracy + (2% reading word + 2)
5. Power distortion rate of < 1%
6. The electrode gap standard 2.5 mm
 7. Test 6 times (1-6 optional)
8. Let stand 5 min time (1-9 min optional)
9. Overall dimensions 730 mm * 410 mm * 390 mm
10weight: 38 kg
