• Model NO.：HJ-69
• Weight：0-100Kg
• Power Source：AC220V
• Determine The Maximum Load Range：2, 5, 20, 50kg
• Control Method：Computer Control
• Test Speed：0-200mm,Min
• Minimum Resolution：0.001kg or 0.1g
• Minimum Fine-Tuning Distance：0.01mm
• X Axis Movement Range：0-75mm
• Transmission Mechanism：Ball Screw Drive
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Weight 0-100Kg Power Source AC220V Determine The Maximum Load Range 2, 5, 20, 50kg Control Method Computer Control Test Speed 0-200mm/Min Minimum Resolution 0.001kg or 0.1g Minimum Fine-Tuning Distance 0.01mm X Axis Movement Range 0-75mm Transmission Mechanism Ball Screw Drive Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Features
1. Can do single hole plug test for connector
2. It can be used to connect the entire row of plug and pull tests to accept the connector life test
3. It can be used to test the retention force of a single connector product in the plastic
4. Can do connector NORMAL FORCE test
5. General compression and tensile failure test can be done
6. It can be connected to the side line of the contact impedance machine at the same time (optional)

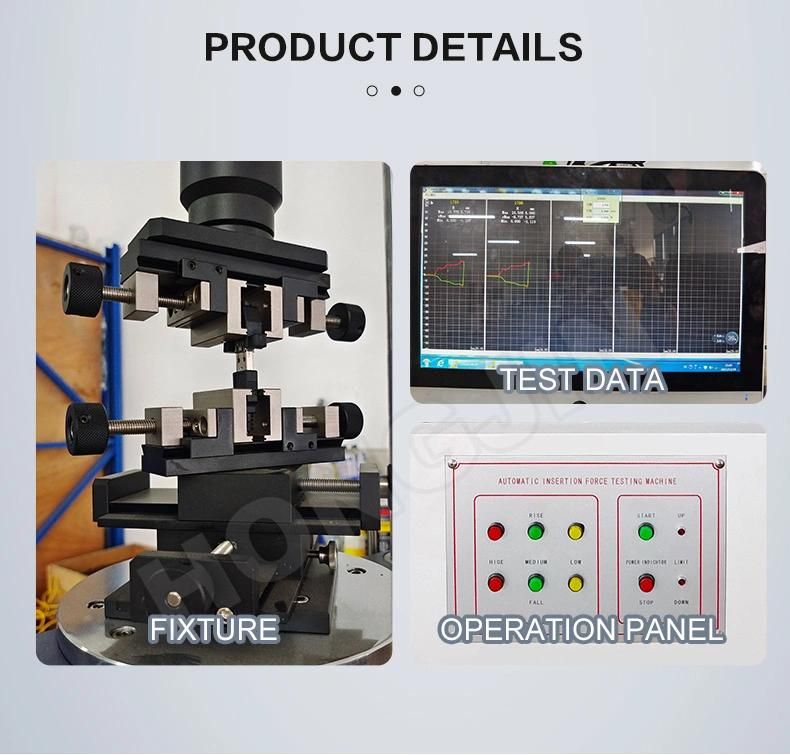

7. Printable and storage graphics (plug displacement curve, life curve, inspection report)
8. The test data is stored in the hard disk (each data can be stored, unlimited times)
9. The test conditions are all set in writing by the computer, which is convenient and fast (including plug-in stroke, speed, pause time, etc.)

Product use/standard

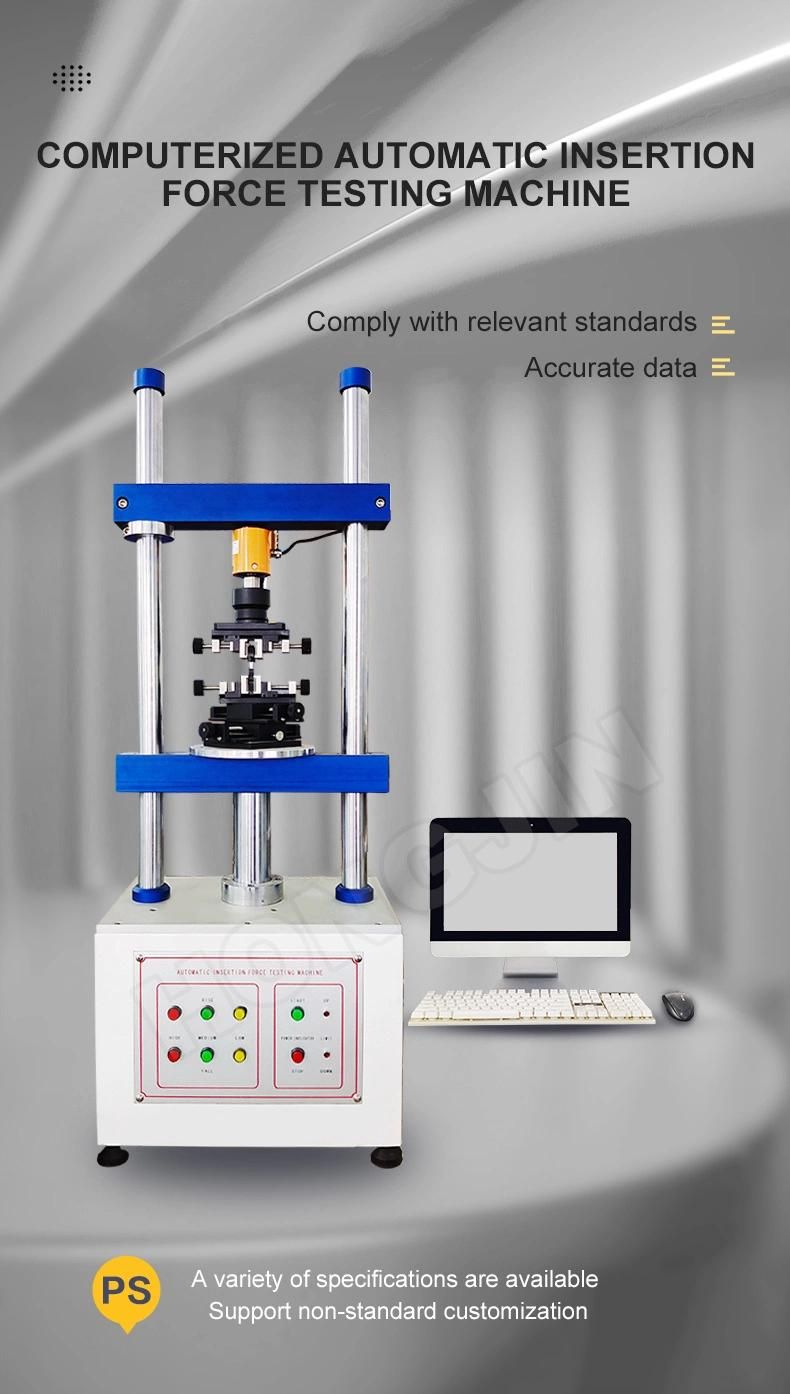

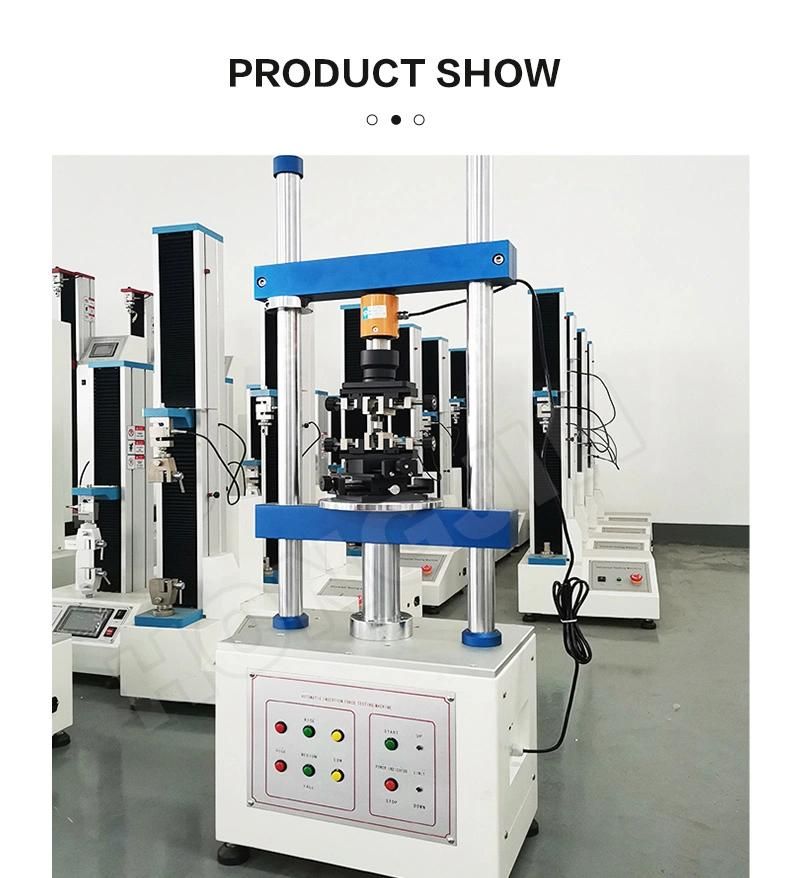

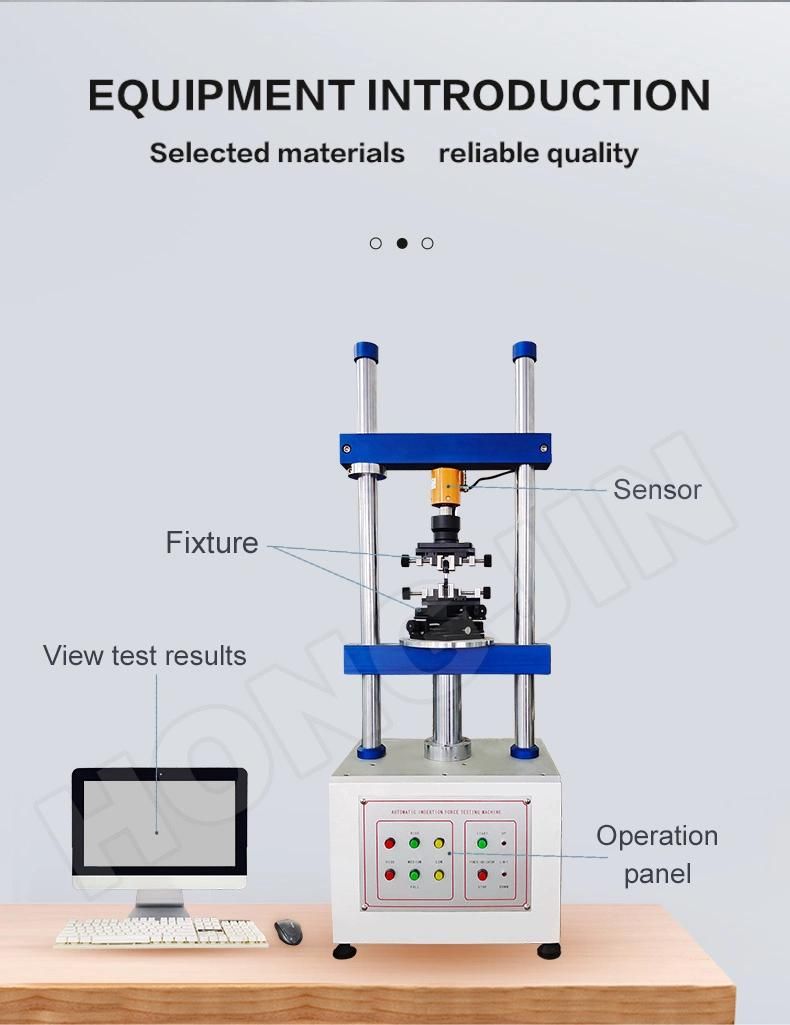

This machine is used to test the insertion force and pull-out force of various connectors. With a dedicated automatic heart-seeking device, it will be able to obtain completely accurate insertion and pull-out force tests, inspection reports, etc. The automatic center finding device is adopted to solve the fixture problems of various connection tests, and the male and female connectors can be automatically aligned during the test, and there will be no single-sided problems.

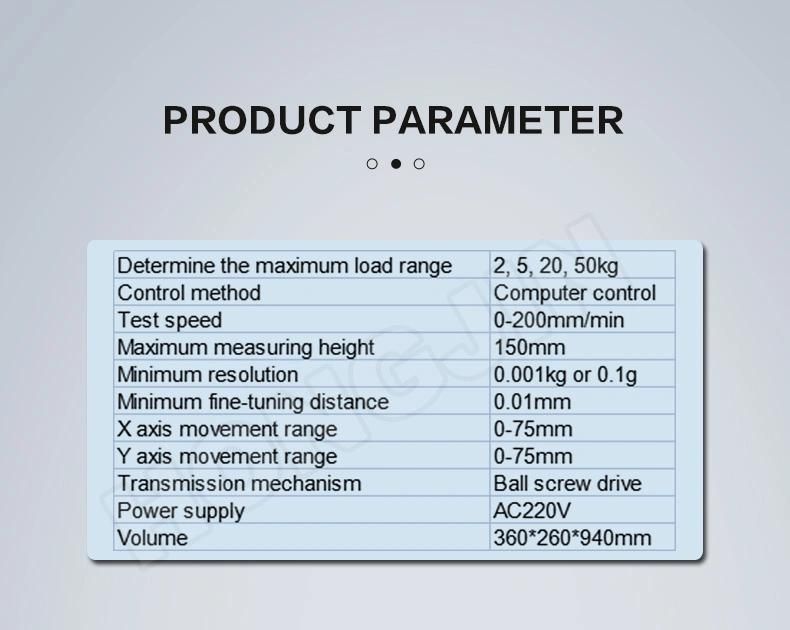

Determine the maximum load range	2, 5, 20, 50kg
Control method	Computer control
Test speed	0-200mm/min
Maximum measuring height	150mm
Minimum resolution	0.001kg or 0.1g
Minimum fine-tuning distance	0.01mm
X axis movement range	0-75mm
Y axis movement range	0-75mm
Transmission mechanism	Ball screw drive
Power supply	AC220V
Volume	360*260*940mm
