• Model NO.：HJ-80
• Power Source：AC220V
• Number of Rollers：1 PCS,2PCS
• Allowable Test Piece Weight：5kg
• Roller Width：350mm
• Swing Speed：5-20 Times,Min
• Number of Trials：1-999999 Times (Can Be Set)
• Machine Size (W*D*H)：1200*850*1200mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-80 Power Source AC220V Number of Rollers 1 PCS/2PCS Allowable Test Piece Weight 5kg Roller Width 350mm Swing Speed 5-20 Times/Min Number of Trials 1-999999 Times (Can Be Set) Machine Size (W*D*H) 1200*850*1200mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Summary

The Automatic Tumbling Barrel Drop Test Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.

The Automatic Tumbling Barrel Drop Test Machine is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.

Feature

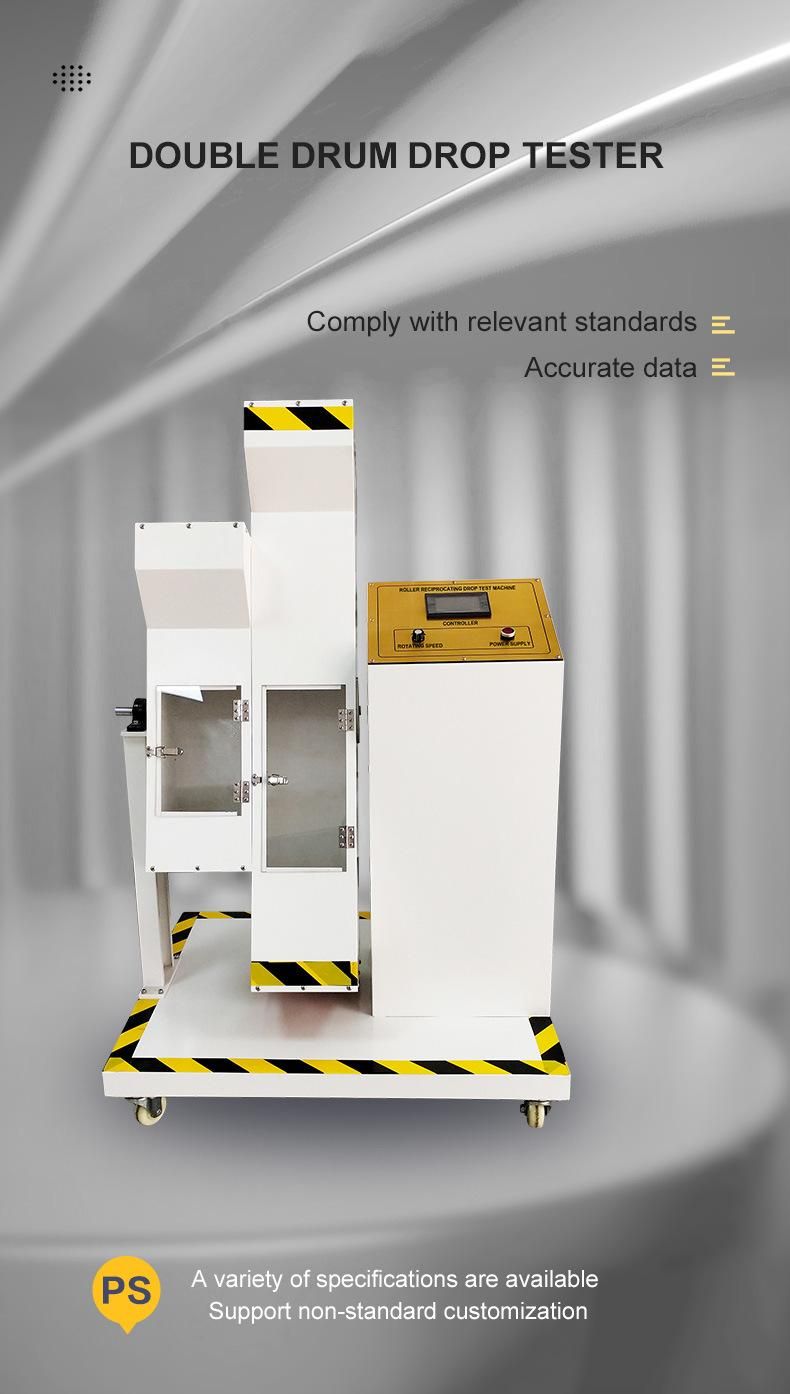

Used for reciprocating test products' drop resistance, the roller drop tester can be divided into three types: single roller drop tester, double roller drop tester, and four roller drop tester.

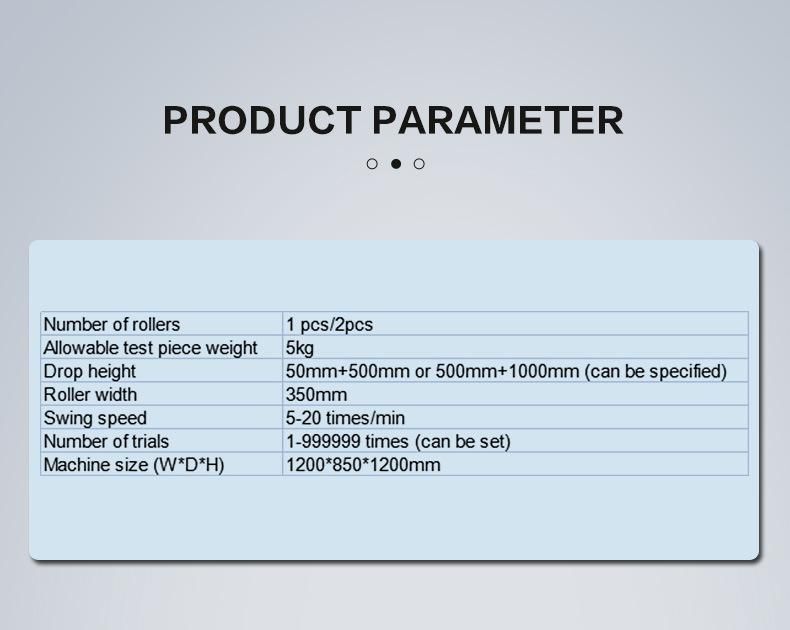

Number of rollers	1 pcs/2pcs
Allowable test piece weight	5kg
Drop height	50mm+500mm or 500mm+1000mm (can be specified)
Roller width	350mm
Swing speed	5-20 times/min
Number of trials	1-999999 times (can be set)
Machine size (W*D*H)	1200*850*1200mm
