• Model NO.：HJ-68
• Weight：0-100Kg
• Power Source：AC220V
• Control Method：Full Touch
• Transmission：Servo Motor + Ball Screw
• Lifting Stroke：0-300mm
• Immersion Time：1-3200s
• Coating Times：1-1000 Times
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Weight 0-100Kg Power Source AC220V Control Method Full Touch Transmission Servo Motor + Ball Screw Lifting Stroke 0-300mm Immersion Time 1-3200s Coating Times 1-1000 Times Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

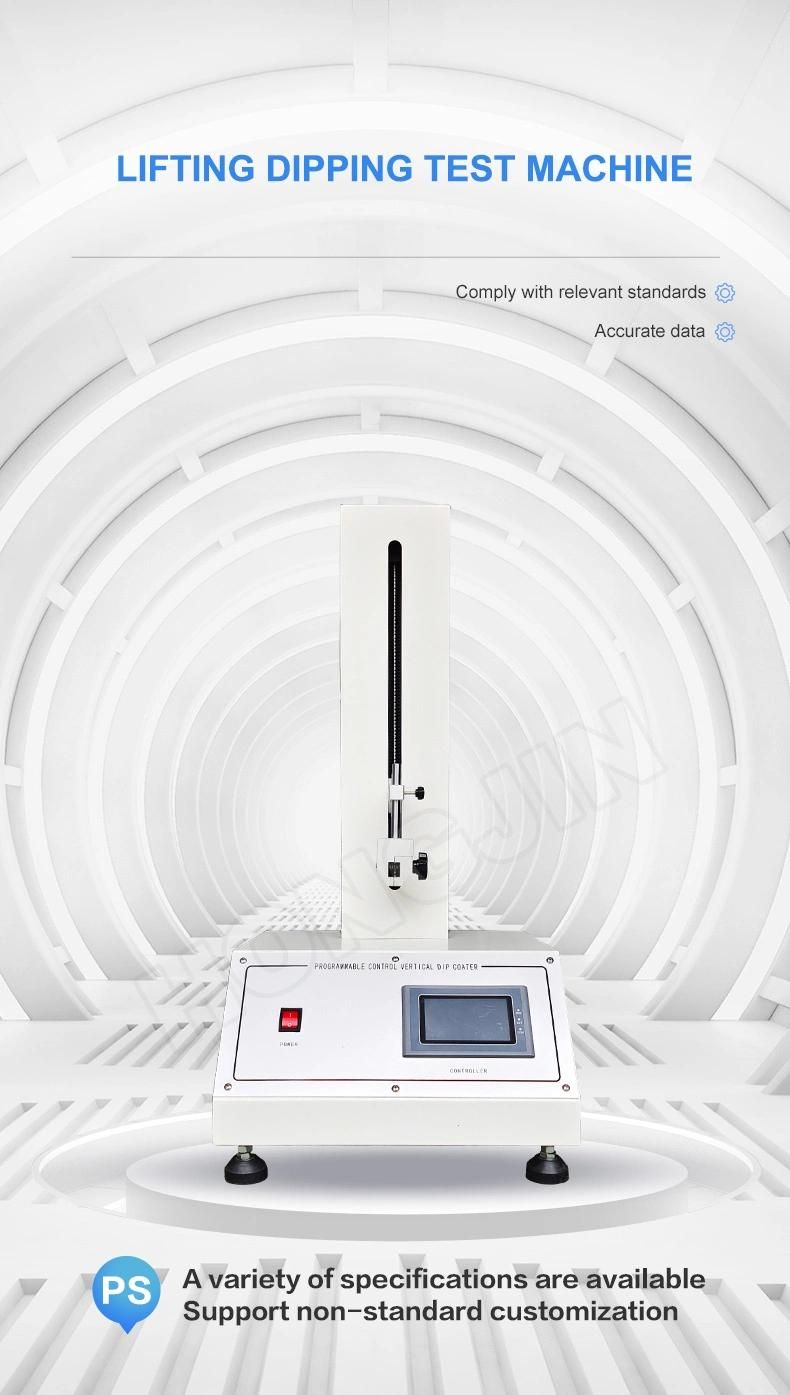

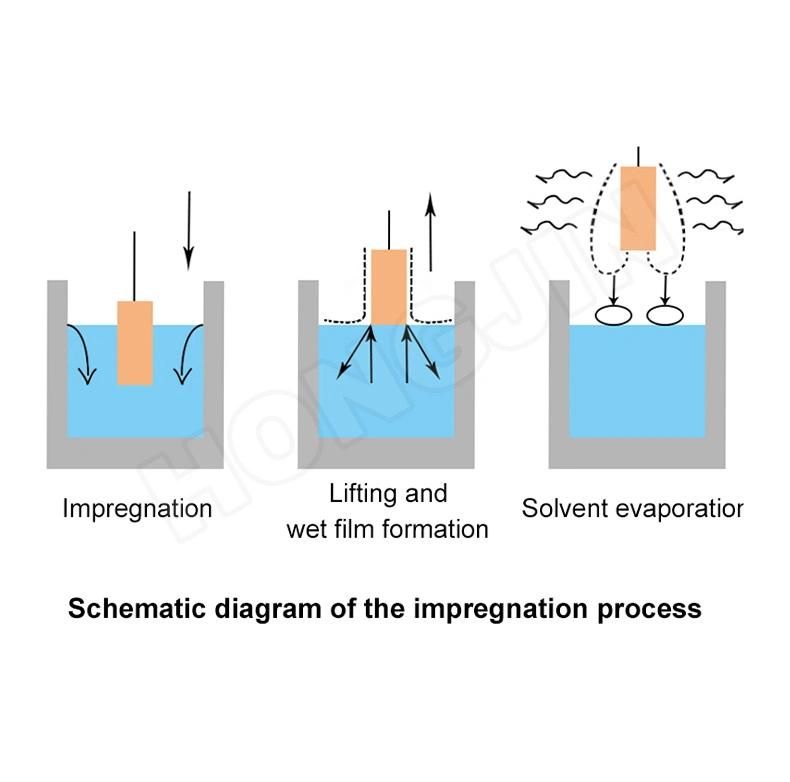

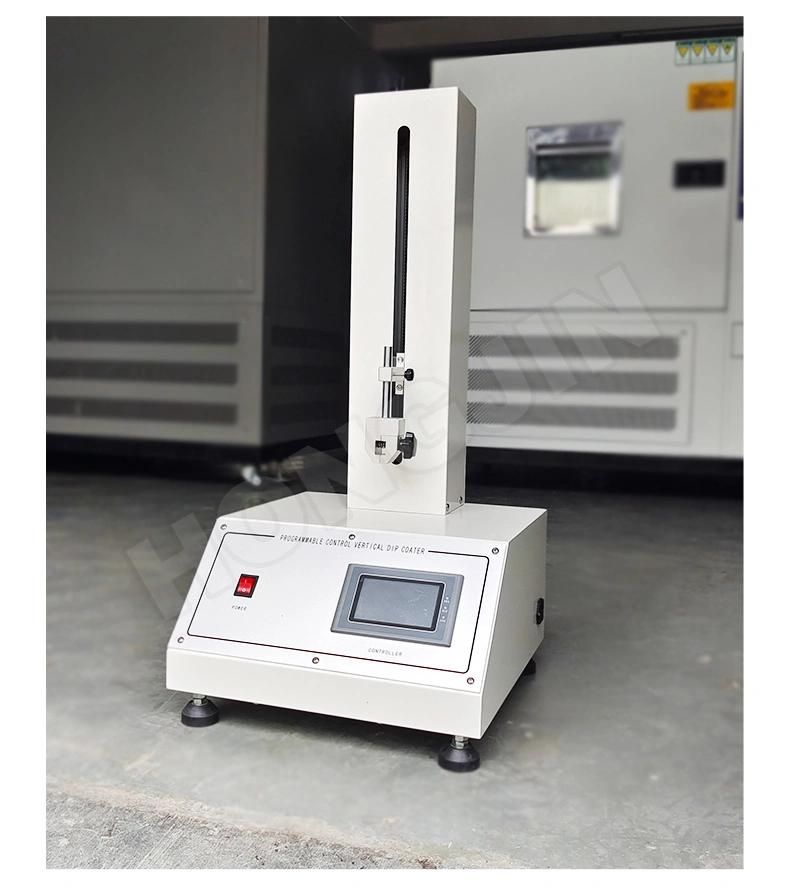

The dipping and pulling coating machine is a high-precision instrument produced by Dongguan Hongjin Testing Instrument Co., Ltd. which is suitable for preparing thin films by dipping and pulling. The dipping and pulling method is one of the common methods for preparing thin films by the sol-gel method (Sol-Gel method, SG method for short). Using high-quality accessories, precise control of the pulling speed, repeated coating without position deviation. The pulling speed, pulling height, cycle coating times, immersion time, descending speed, and residence time can all be precisely controlled by the program. Suitable for common substrates such as glass, Si (100), Si (111), sapphire (Al2O3), porcelain and resin substrates.

The dip-pull coating machine is a high-precision instrument produced by Dongguan Hongjin Testing Instrument Co., Ltd., which is suitable for the preparation of thin films by dip-pull method. Dipping and pulling method is one of the common methods for preparing thin films by sol-gel method (Sol--Gel method, SG method for short). Using high-quality accessories, precise control of the pulling speed, repeated coating without position deviation. The pulling speed, pulling height, cycle coating times, dipping time, descending speed and dwell time can all be precisely controlled by the program. Suitable for common substrates such as glass, Si (100), Si (111), sapphire (Al2O3), ceramic and resin substrates.

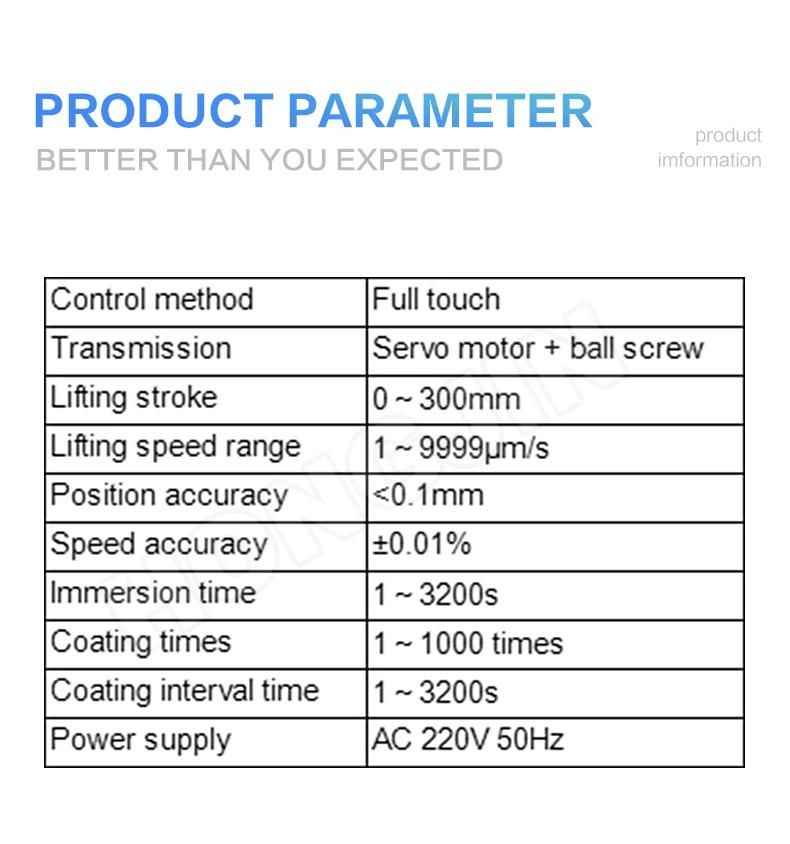

Control method	Full touch
Transmission	Servo motor + ball screw
Lifting stroke	0~300mm
Lifting speed range	1~9999μm/s
Position accuracy	<0.1mm
Speed accuracy	±0.01%
Immersion time	1~3200s
Coating times	1~1000 times
Coating interval time	1~3200s
Power supply	AC 220V 50Hz
