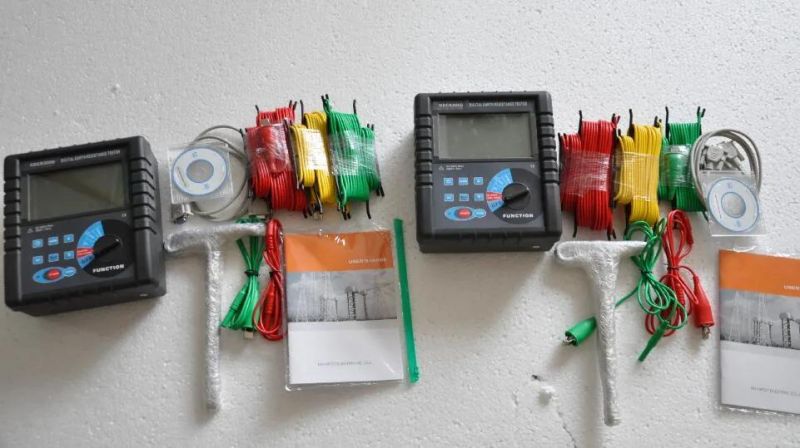

Digital Earth Resistance Meter (GDCR3000)
HV Hipot Electric Co., Ltd.- Earth Ground Voltage：0 ~ 600V AC
- Power Supply：DC 9V(Zi-Mn Dry Battery R14s 1.5V 6 PCS, Continuou
- Measuring Mode：Precise 3-Pole Measurement, Simple 2-Pole Measurem
- Data Mode：Average Value, Maximum, Minimum
- Display Mode：4-Digital Super-Large LCD Display, Blue Screen Bac
- Dimension：215mm*190mm*95mm
Base Info
- Model NO.：GDCR3000
- Testing Wires：Three Wires: Each for Red 20m, Yellow 10m, and Gre
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：9030332000
- Production Capacity：1000PCS,Year
Description
WeightTester : 1443g ( including battery ) Testing Wires : 847g ( including simply testing wires ) Auxiliary earthing rod : 468g ( 2 PCS ) Meter bag : 915g Working Temperature & Humidity -10 ºC ~ 40 ºC ; below 80%rh Storage temperature & humidity -20 ºC ~ 60 ºC ; below 70%rh Overload Protection Measuring earth ground resistance: between each interfaces of E-P , E-C , AC 280V/3 seconds Insulation Resistance Over 10MΩ(between circuit and enclosure it is 500V) Withstanding Voltage AC 3700V/ rms (Between circuit and enclosure) Electromagnetic Features Wireless frequency electromagnetic field Protection Type IEC61010-1 , IEC1010-2-31 , IEC61557-1,5 , IEC60529(IP54) , Pollution etc. 2 , CAT III 300V
