• Model NO.：Relaytestar-1600
• Frequncy：DC--3000Hz
• Resolution：4 Ma
• Binary Input：10 *10-250VDC or Free Contact
• Binary Output：8*AC(0.5A, 250V) , 8 * DC(0.5A, 60V)
• Laptop Control：Available
• Current Output Channel：6 Phases
• Voltage Output Channel：6 Phase
• Testing Software：Free
• Transport Package：Standard Export Wooden Package
• Specification：420*360*210
• Trademark：Relaytestar
• Origin：China
• HS Code：903033900
• Production Capacity：100px,Week

Product Description

High Power 6-phase Protection Relay Test SystemSetting Range

6-Phase AC(L-N)

6x0…40A

3-Phase AC(L-N)

3x0…80A

1-Phase AC(LL-LN)

1x0…240A

DC(L-N)

6x0…±20 A

Power

6-Phase AC(L-N)

6x300VA At 40A

3-Phase AC(L-N)

3x450VA At 80A

1-Phase AC(LL-LN)

1x1000VA At 240A

DC(L-N)

6x120VA At 20A

Accuracy

AC: ±1mA(≤0.2A), ≤0.1% (0.2~40A)

DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~20A)

Resolution

1mA

Setting Range

6-Phase AC(L-N)

6x0…150V

3-Phase AC(L-N)

3x0…300V

DC(L-N)

6x0…±175V

Power

6-Phase AC(L-N)

6x80VA At 150V

3-Phase AC(L-N)

3x100VA At 300V

DC(L-N)

6x80VA At 175V

Accuracy

AC: ±2mV(0.2~2V), ≤0.1% (2~150V)

DC: ±10mV (0.5~5V), ≤0.2% (5~175V)

Resolution

1mV

Auxiliary DCFrequency

Range: 0~1200Hz

Accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1200Hz)

Resolution: 0.001Hz

Phase

Range: -360° ~+360°

Accuracy: 0.1°

Resolution: 0.01°

Harmonic

Superposition Order: 2~24 Times

Distortion: ≤0.5%

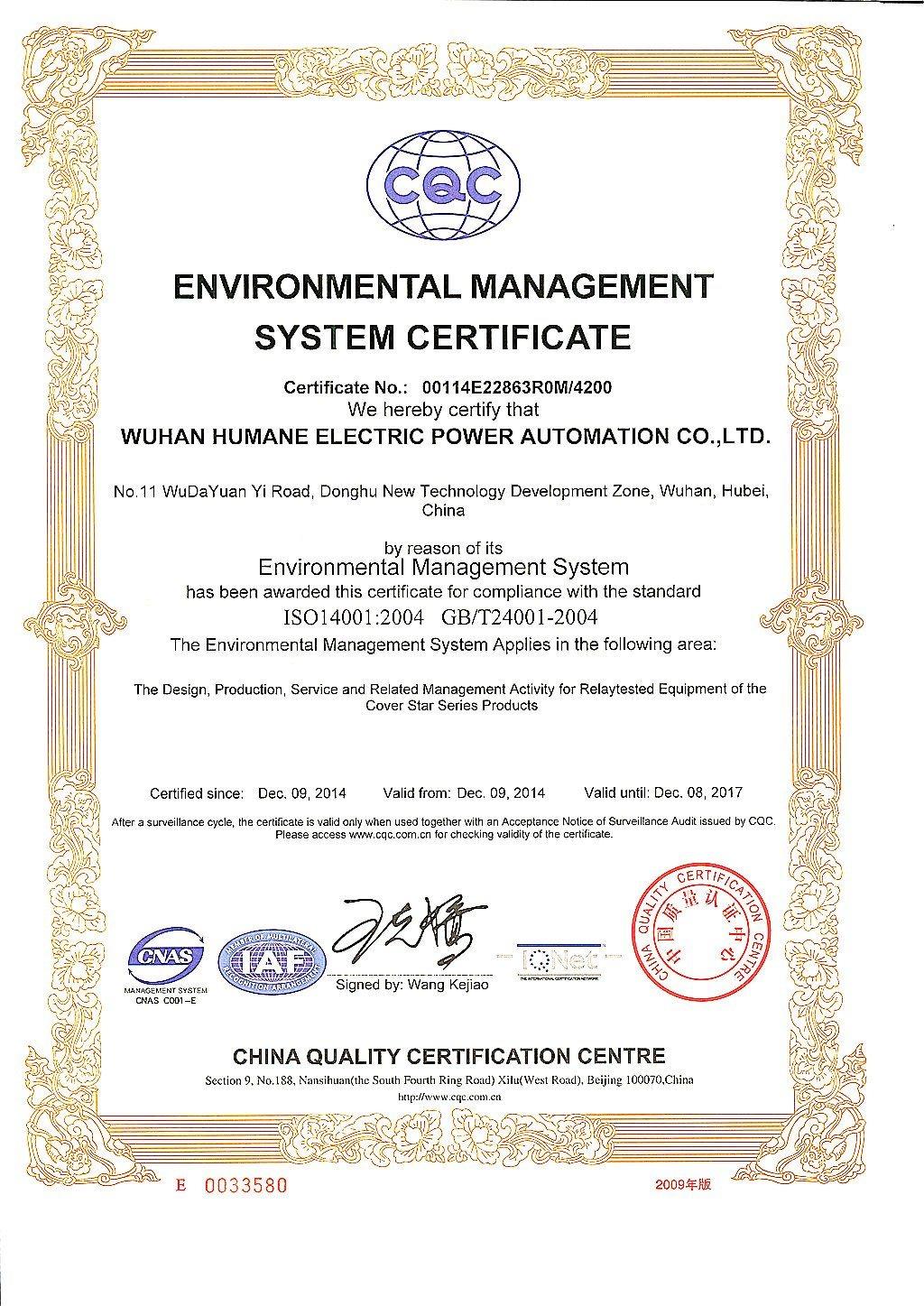

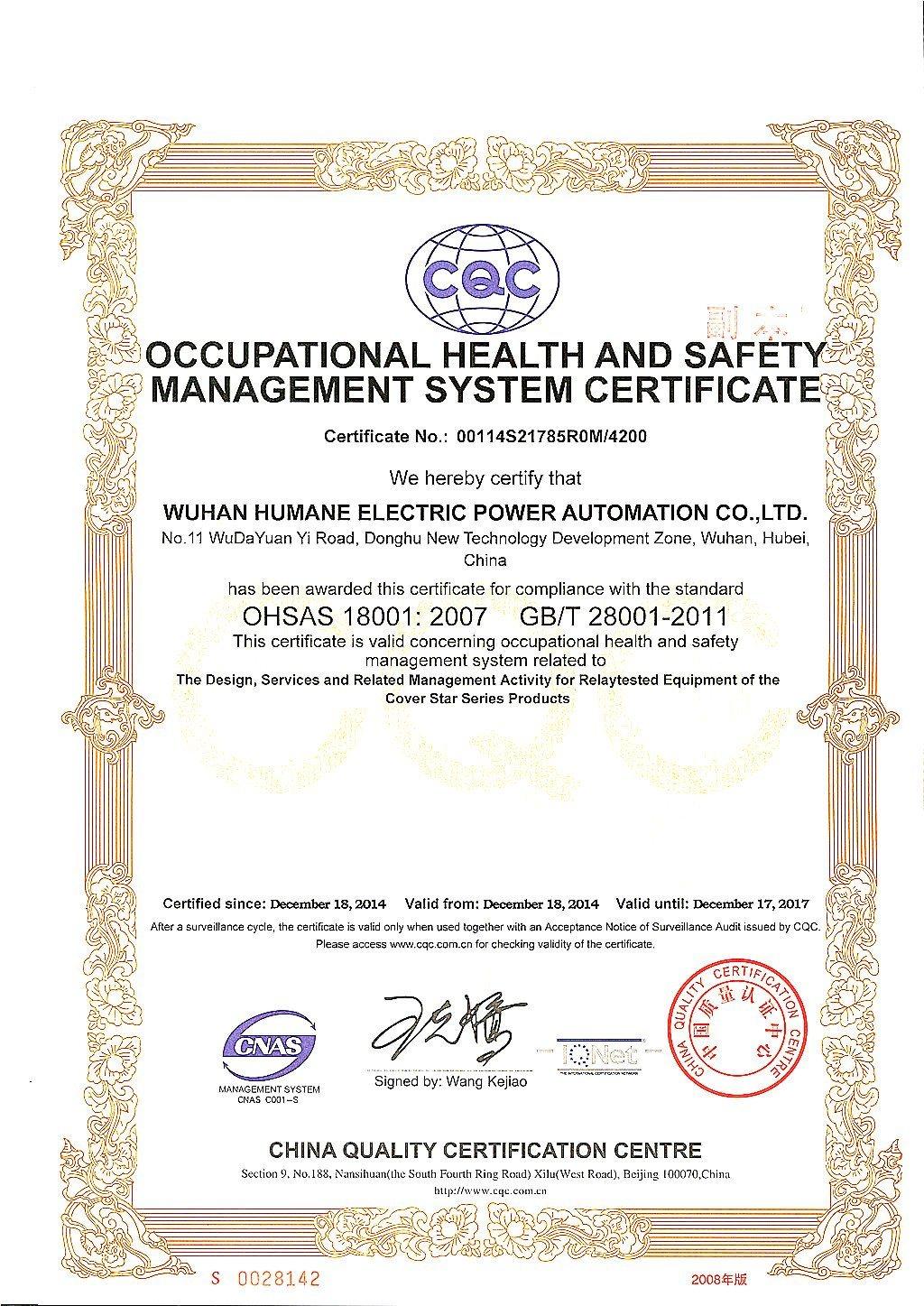

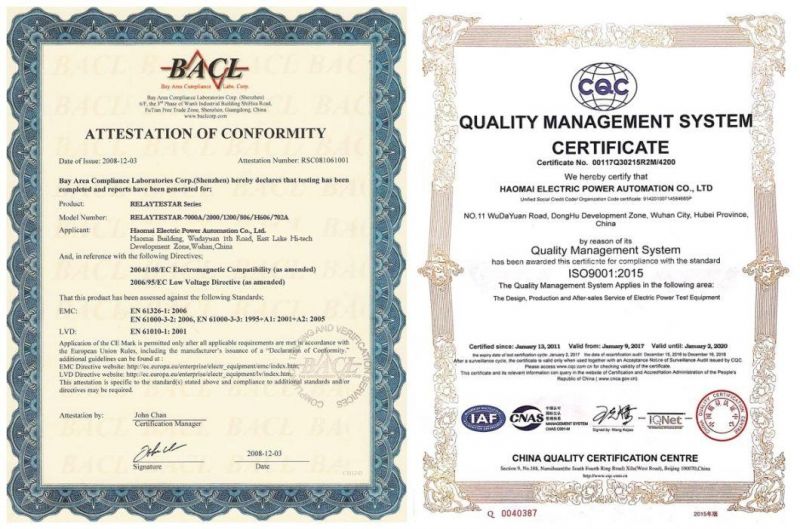

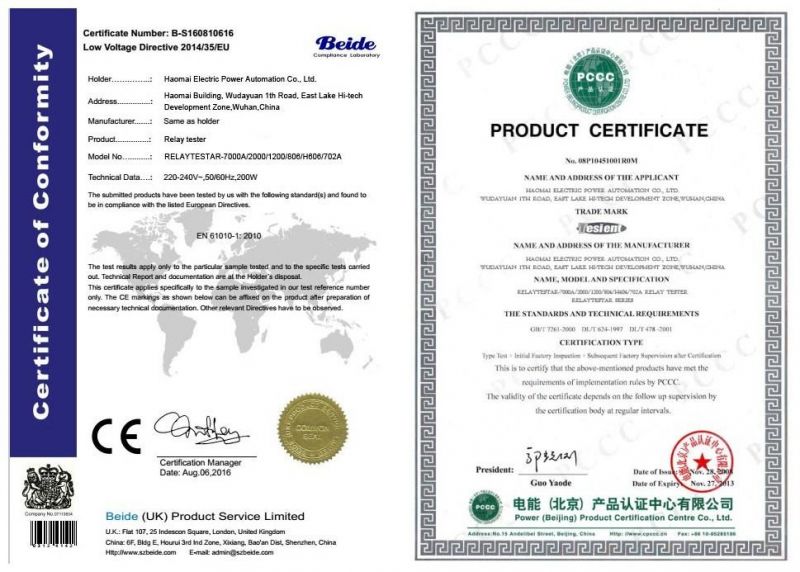

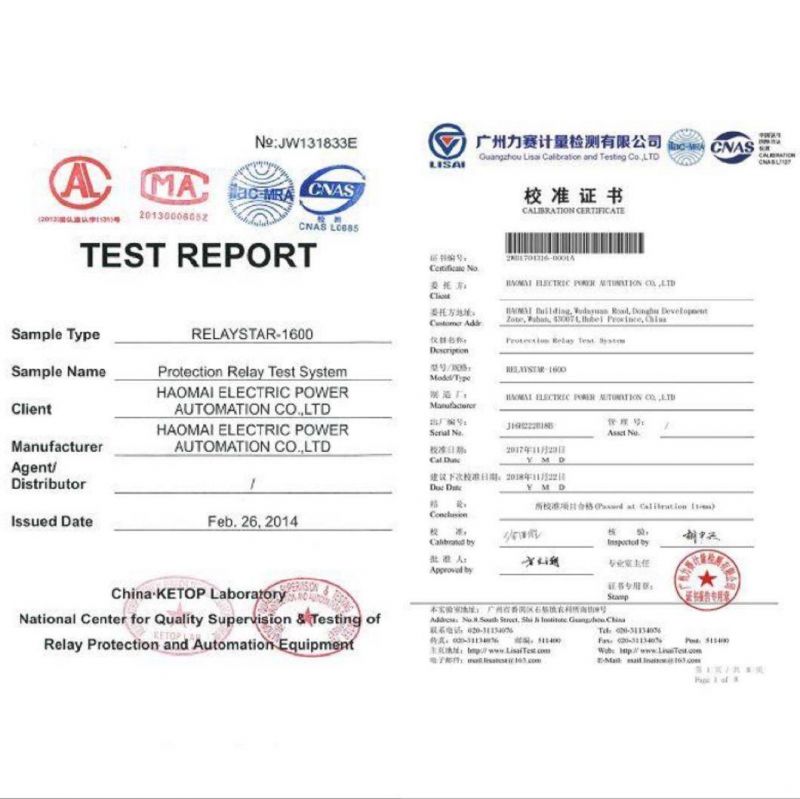

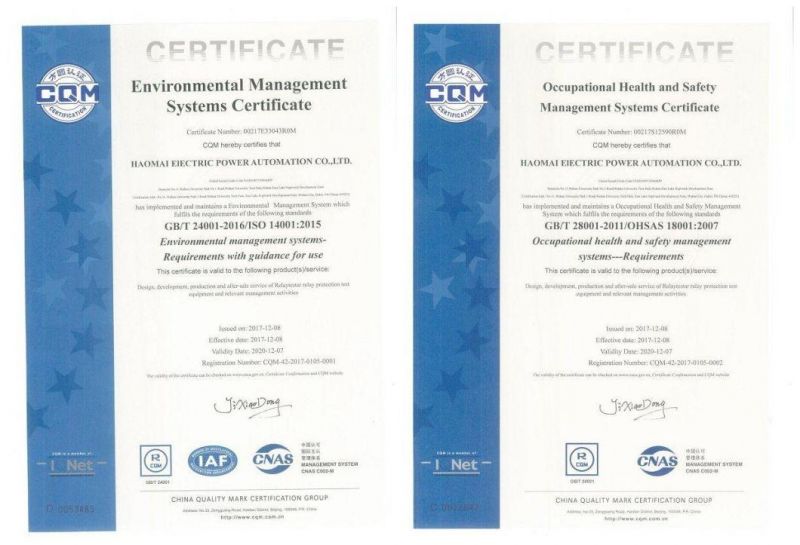

Certifications

Company Profile


HAOMAI ELECTRIC POWER AUTOMATION is established in 1999 and located in Wuhan of China, which is specialized in developing and manufacturing electrical power test and measurement instruments. HAOMAI products are widely used in power grid, petrochemical, metallurgy, railway, coal mine, research institutes and all kinds of large-scale factories or enterprises.mainly focuses on the sales and services of Protection Relay Test System, CT/PT Analyzer, Battery Load Tester, Transformer Testing Equipment, Circuit Breaker Analyzer, Partial Discharge Detector etc. electrical power test and measurement instruments.

HAOMAI follows total quality criteria, and always maintains standardized process and procedures for continuous growth. HAOMAI has been certified by ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007.

HAOMAI builds own RELAYSTAR laboratory and performance test laboratory, and possesses professional production equipment and testing instruments in factory, such as Agilent 34401A 6 1/2 High-precision Meter, FLUKE Multi-meter, EMH Standard Meter, CLOU Standard Power Source, Oscilloscope, Phase Meter, Insulation Test System, High Voltage Dividers, AC High Voltage Generator, Time Calibration Tester, Standard Micro-resistance etc.

HAOMAI is China well-known mark recognized and approved by State Administration for Industry & Commerce of People's Republic of China, and enjoys high reputation in domestic and foreign markets.

HAOMAI now is the key supplier for SGCC(State Grid Corporation of China) and CSG(China Southern Power Grid). Till 2018 HAOMAI products have been sold to 34 different countries.

HAOMAI always sticks to the faith of "cooperation and sharing", takes the "technology and market" as the direction, "creation and innovation" as the soul, listens to clients carefully, and improves the technology, upgrades the products, optimizes the service and tries all to be the global leader in electrical power test and measurement instruments field.
