• Model NO.：KMHW-17
• Specification：CE, SGS
• Trademark：KOMEG
• Origin：China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

ModelKMHW-35.2Volume(m³)35.2CBMInterior DimensionsW3900 x H2100 x D4300mmExterior DimensionsW5050 x H2350 x D4500mmSafety Devices(standard)No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protectionStandard accessoriesSight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicatorControl System Balanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single stage or cascade refrigeration system,CFC free refrigerant ( HFC-507 and HFC-23 )ControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fix point runningMemory capacity120 programs,1200steps, all repeat 999 cycles,part repeat 99 cyclesAccuracyTemp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digitInputTemp.: pt-100, Humidity: pt-100 or ~5V DCVComm.port RS-232 or RS-485 ( Softawre is option)Temp. rangeMaximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºCHumidity Range10%, 20%, 30% ~ 95%Temp. constancy±0.5 ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0 ºCHumidity uniformity±5.0%R.HAmbient Temp.+5 ºC~+35 ºCWiring methodAC 380 ± 10% 50Hz ,3 phase 4 wires + Ground WiresHeat up time +20 ºC~+80 ºC, Within 60 minPull down time +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel ( SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing: W800 x H1800;  Double wing: W1600 x H1800;Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available

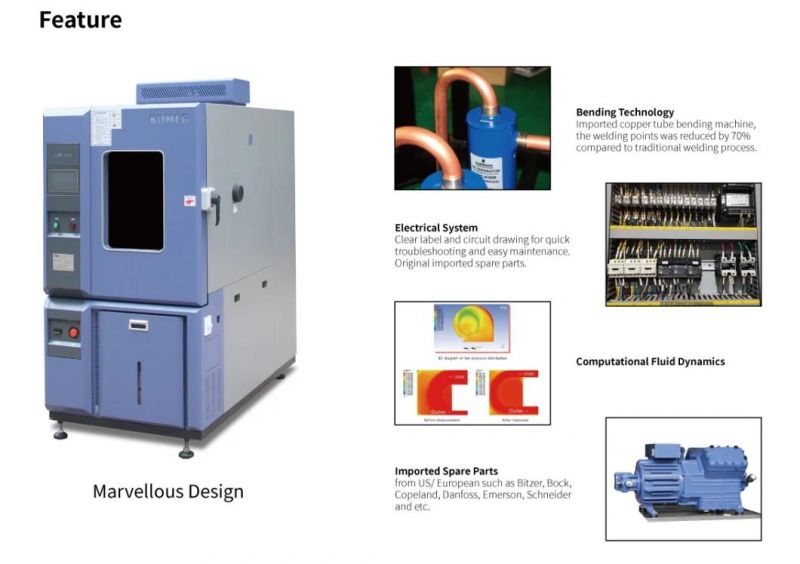

4. KOMEG Temperature Humidity Test Chamber Features:


The refrigerating system is the core/heart part of the test chamber.

For enhance the whole refrigerating system performance, we use professional and advanced copper tube bending machine, this can decrease the welding points over 50%, and decrease right-angles of the tube, Also less welding points can reduce the resistance when the liquid flowing inside, to keep compressor working in higher efficiency, and better energy-saving.

And for welding the copper tube, we use Liquid Nitrogen protection welding technology, this can better protect the tube and keep the cooling system clean.

All this will do good to the compressor.
We use GEA Bock semi-hermetic compressor. According to our over 20 years experiences in this climatic test chambers field, GEA Bock Compressor has excellent performance in refrigerating effect and running stability; has good noise control, also energy-saving.


Widest test range, most customizable
