• Model NO.：GD-61034
• Customized：Non-Customized
• Color：Black
• Apparatus：IEC61034-1, 2 Cable Burning Smoke Density Tester
• Application：Measure The Smoke Density of Cable During Burning
• Applicable Field：Fire Testing, Cable Testing, Laboratory Analysis
• Applicable Standards：IEC61034-1, 2, BS 6853
• Test Chamber Dimension：3m * 3m * 3m
• Light Source：Famous Brand Light Source
• Original：Made in China
• Price：Favorable Price
• Power Supply：220V, 50Hz
• Warranty Period：One Year
• Transport Package：Standard Wooden Case
• Specification：Refer to specifications
• Trademark：Gold
• Origin：Chongqing of China
• HS Code：9031809000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GD-61034 Customized Non-Customized Color Black Apparatus IEC61034-1, 2 Cable Burning Smoke Density Tester Application Measure The Smoke Density of Cable During Burning Applicable Field Fire Testing, Cable Testing, Laboratory Analysis Applicable Standards IEC61034-1, 2, BS 6853 Test Chamber Dimension 3m * 3m * 3m Light Source Famous Brand Light Source Original Made in China Price Favorable Price Power Supply 220V, 50Hz Warranty Period One Year Transport Package Standard Wooden Case Specification Refer to specifications Trademark Gold Origin Chongqing of China HS Code 9031809000 Production Capacity 100 Sets/Month

Product Description

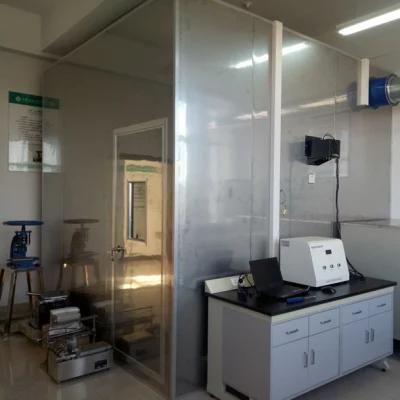

GD-61034 IEC61034-1, 2 Cable Burning Smoke Density Tester

Introduction:

1. GD-61034 IEC61034-1, 2 Cable Burning Smoke Density Tester is the testing equipment measuring the smoke generated when the cable or optical cable is placed horizontally and burn under definite fire resource in the specified condition (3m3 chamber required by IEC61034).
2. GD-61034 IEC61034-1, 2 Cable Burning Smoke Density Tester is important to measure the smoke generation from the value of light source penetration through the smoke generated when the cable exposed to the specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.

Standards:

1. IEC 61034 - 1 & 2: Measurement of Smoke density of cables burning under defined condition;
2. BS 6853: Code of practice for fire precautions in design and construction of passenger carrying trains;

Specifications:

No.	Item Name	IEC61034-1, 2 Cable Burning Smoke Density Tester
1	Frame dimension	3,000(W) × 3,000(D) × 3,000(H)
2	Frame material	Stainless Steel SUS 301
3	Transparent sealed window	100 × 100 mm
4	Foundation Fixed	Fixture unit
5	Light Source Power	DC12V, 100W
6	Light Source Focus Angle	48˚ - 4.5˚
7	Light Source Focus Intensity	1:20
8	Photo Cell Diameter	Ø45 mm
9	Photo Cell Cell Type	Selenium Cell
10	Exhaust Blower Fan Flow	7 m3/min ~ 15 m3/min
11	Exhaust Blower Size	246(W) x 220(D) x 205(H) mm
12	Exhaust Blower Material	Stainless Steel (Inner Fan)
13	Exhaust Blower Power	AC220V, 60Hz, φ1, 210W
14	Exhaust Blower Flow Rate(max)	8.0 m3/min
15	Power Supply	AC220V, 60Hz
16	Torque	normal 300kg.f.cm , max 480 kf.f.cm
17	Rotation Angle	0 ~ 90˚ ± 5˚
18	Wind Velocity	≤ 15m/sec
19	Control Rack Dimension	(W) 730 X (D) 650 X (H) 1,400
