• Model NO.：HTPV-09
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Impact Area：2000mm*1000mm
• Color：Customers′ Requirements
• Ice Ball Speed：23.0m,S±5%
• The Barrel Length：Approx.*940mm
• Speed Catch Range：0~40m,S
• Transport Package：Wooden Case
• Specification：IEC61215
• Trademark：HOTOTECH
• Origin：Guangdong, China
• HS Code：9031809090
• Production Capacity：100000,Years

Basic Info.

Model NO. HTPV-09 Display Digital Control Computer Control Weight 500-1000Kg Power Source AC220V Impact Area 2000mm*1000mm Color Customers′ Requirements Ice Ball Speed 23.0m/S±5% The Barrel Length Approx.*940mm Speed Catch Range 0~40m/S Transport Package Wooden Case Specification IEC61215 Trademark HOTOTECH Origin Guangdong, China HS Code 9031809090 Production Capacity 100000/Years

Product Description

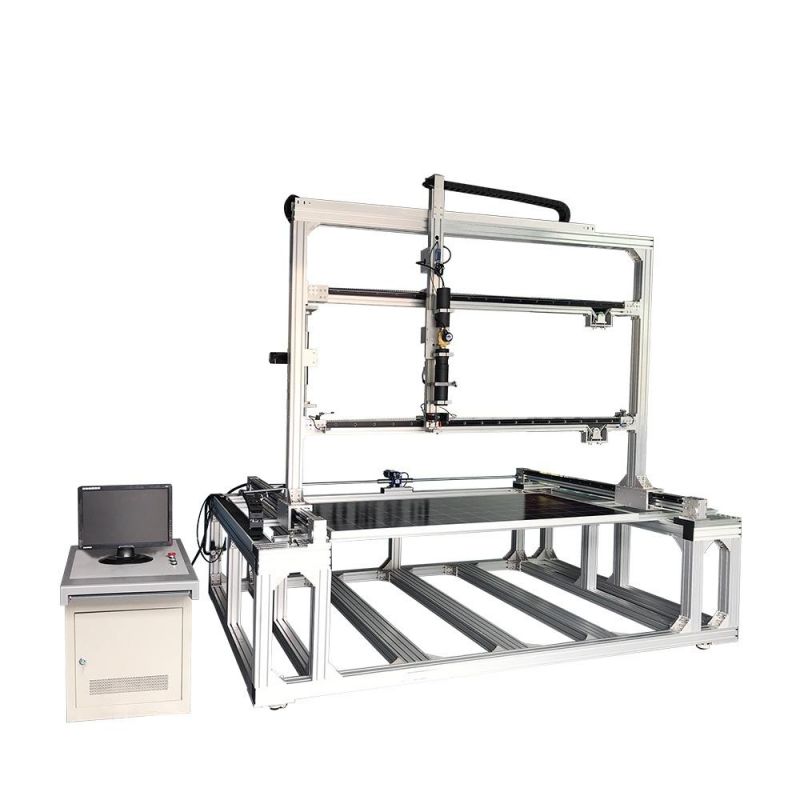

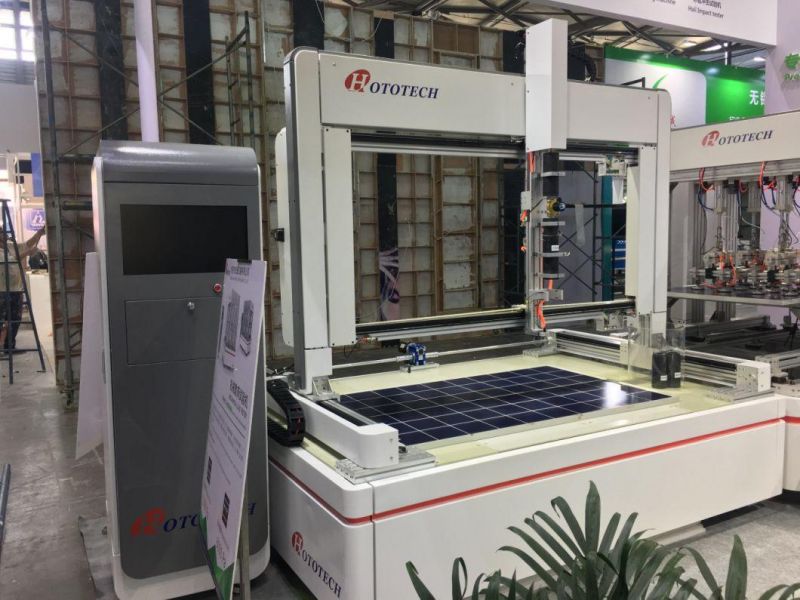

Solar Panels Testing Hail Impact Testing Machine IEC61646 1703 IEC 61215 Standard

Specification

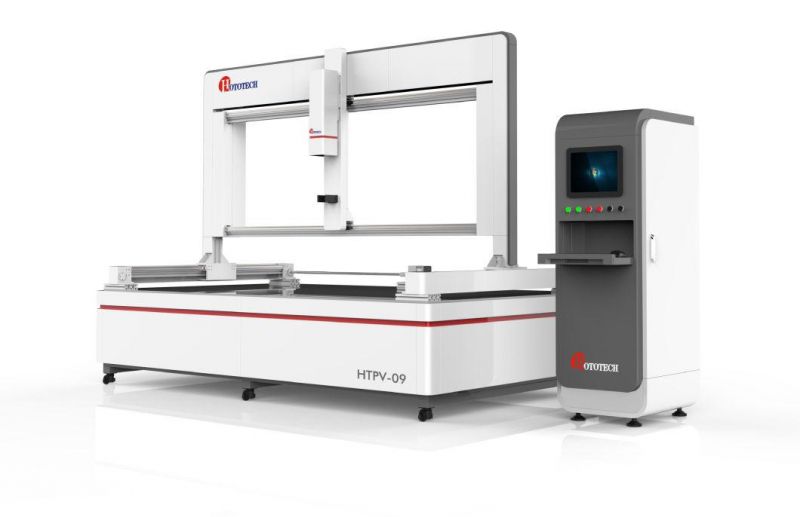

HTPV-09
-Hail Impact Testing Machine
-Standard:According to IEC61215,IEC61646,UL1703 standard requirement
-Purpose:To verify that the module is capable of withstanding the impact of hailstones

 Technical specification:
1.Launch device
a.Power source is air compressor
b.Air pressure:6~8bar
c.Ice ball single filled by manual
d.The barrel length approx 940mm
e.The barrel can change

2.Moving locating device
a.X shaft move distance approx 2100mm
b.Y shaft move distance approx 1000mm
c.Locating accurate:≤1mm
d.Impact area:2000*1000mm
e.Guide ways is high quality import guide rail
f.Driving ways adopt imports servo motor+synchronous wheel
g.Locating control ways is PC control and automatic locating

3.Test velocity system and theory
a.Via determine ice through the infrared test velocity sensor,meanwhile catch by the breaking time T,According to V=S/t calculation ice ball flight velocity
b.Test speed sensor use high accurate infrared test speed sensor
c.Infrared test speed sensor accurate±5%
d.Speed catch range 0~40m/s
e.Ice ball speed:diameter 25mm,ice ball speed 23.0m/s±5%
                            diameter 35mm,ice ball speed 27.2m/s±5%
                            diameter 45mm,ice ball speed 30.7m/s±5%



4.Ice make ways and mould
a.Take the ice mould filled water and placed in the refrigerator freezing chamber,waiting for the water cooling after,take the mould separate take out ice ball,placed in the ice ball storage chamber cold storage spare
b.Mould use special material that does not expand easily
c.Inner cavity diameter 25mm<1%;35mm<1%;45mm<1%
d.One mould have 6 ice balls,one specification at least have 2 sets of mould
e.Mould ineer cavity process technical use high accurate CNC machine processing
f.Ice ball diameter 25mm<5%;35mm<5%;45mm<5%
g.Ice ball weight:7.53g<5%;20.7<5%;43.9<5%
