• Model NO.：HTPV-15
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Temperature Resolution：0.1ºC
• Ozone：No Ozone
• Lamp Life：1000h
• Shipment：by Sea
• Transport Package：Wooden Case
• Specification：2000mm*2000mm
• Trademark：HOTOTECH
• Origin：Guangdong, China
• Production Capacity：100000,Years

Basic Info.

Model NO. HTPV-15 Display Digital Control Computer Control Weight 100-500Kg Temperature Resolution 0.1ºC Ozone No Ozone Lamp Life 1000h Shipment by Sea Transport Package Wooden Case Specification 2000mm*2000mm Trademark HOTOTECH Origin Guangdong, China Production Capacity 100000/Years

Product Description

High Quality Materials IEC 61215 Standard PV module Testing Machine UV Preconditioning Testing Machine

Product Description

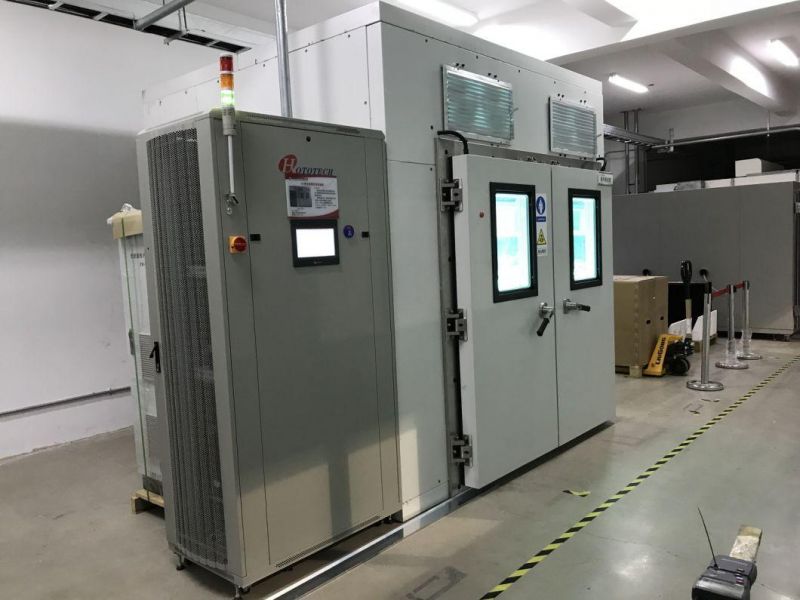

HTPV-15

-UV Preconditioning Testing Machine

-Standard:According to IEC61215,IEC61646 standard requirement

-Purpose:To precondition the module with ultra-violet(UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation



Technical specification:

1.Use material:can completely obstruct ultraviolet rays,tightness,good thermal insulation's high quality materials

2.Machine UV total irradiation area:more than 2000mm*2000mm,meanwhile satisfy 2pcs module(2*1m)

3.Light source life:system use metal halid lamp,lamp life is 1000 hours,delivery offer one set of spare part,use the life ar above 2000 hours

4.Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%~10%

5.Irradiation strength:wavelength 280nm~385nm's irradiation strength can reach about 100W/m,promise the test cycle reduce as far as possible

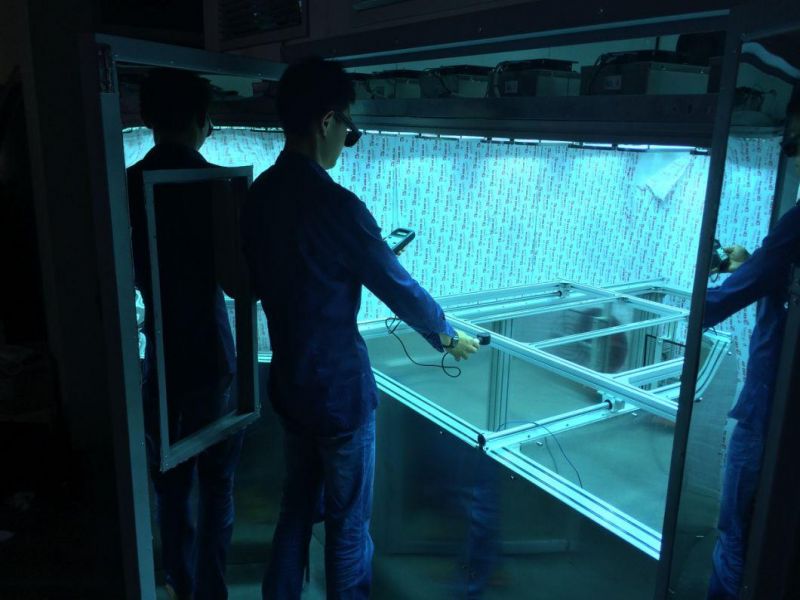

6.Irradiance uniformity:be better than ± 15%

7.Real-time monitor and show UVA and UVB strength

8.UVA(320nm~385nm),UVB(280~320nm)Each one of the fiber optic probes

9.Module surface temperature:60ºC±5ºC

10.Temperature resolution:0.1ºC

11.Ozone:Almost no ozone is produced

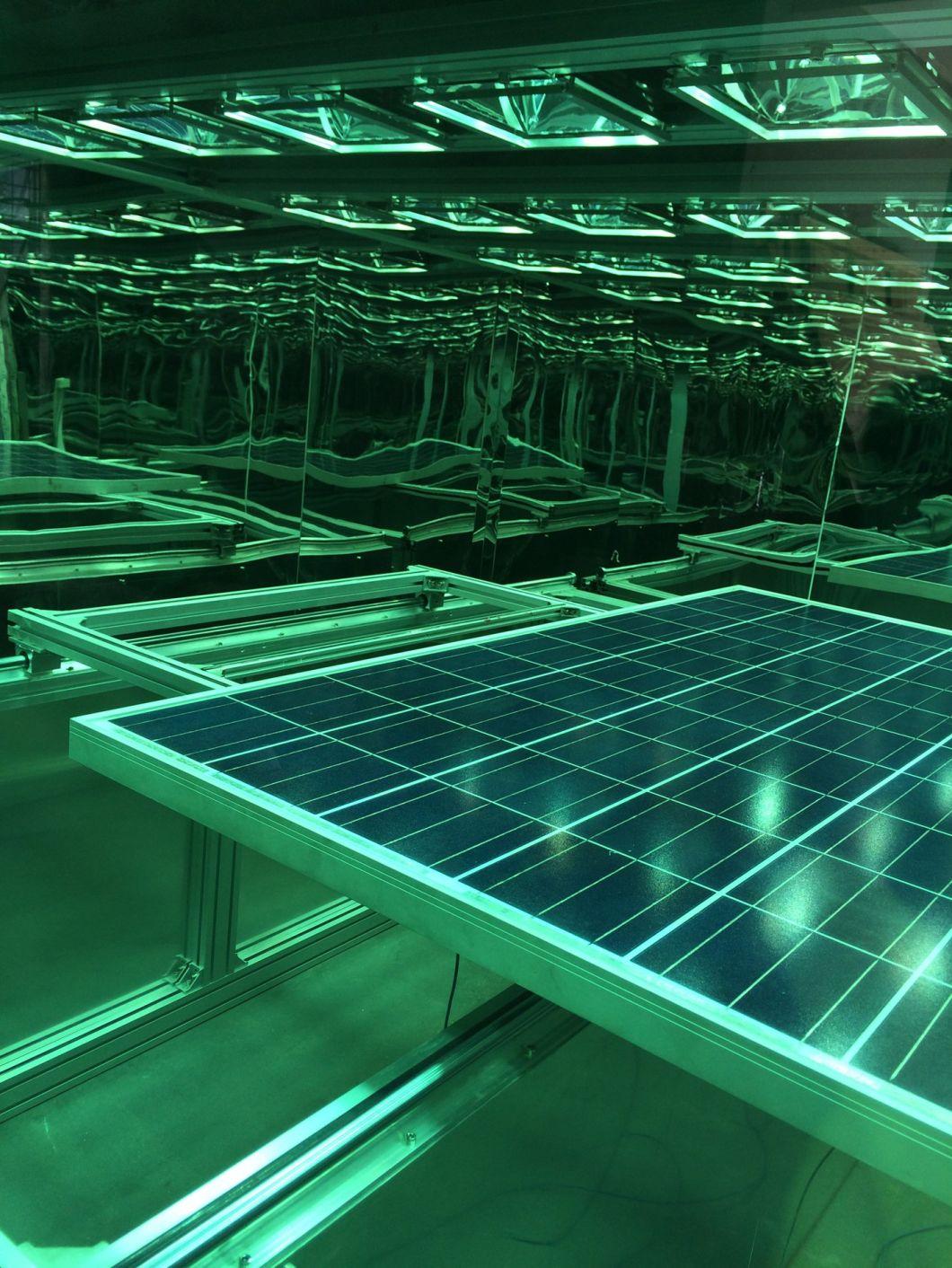

12.Light ways:Upper light,module test plane vertical light source

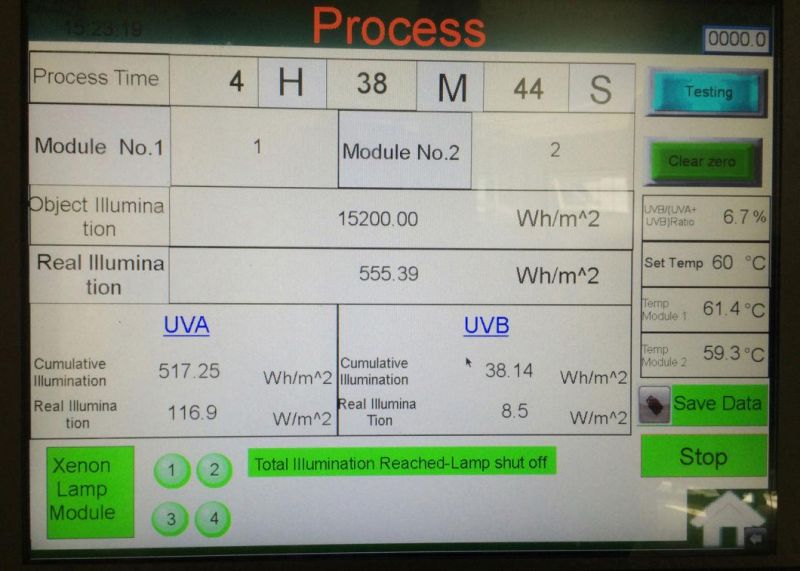

13.Touch screen operate and real-time monitor,when reached the set value will automatic cut off the light source

14.Real-time figure show module surface temperature,measurement accurate ± 0.1ºC
