• Model NO.：GDBT-8610P
• Test Range：0-10.0mΩ
• Volage：0.000V--150V
• Display：240×320 24bit 3.5inch TFT LCD touch screen
• Dimension：190*100*30mm
• Weight：0.5kg
• Communication interface：USB
• power：Rechargeable Lithium battery
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030332000
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. GDBT-8610P Test Range 0-10.0mΩ Volage 0.000V--150V Display 240×320 24bit 3.5inch TFT LCD touch screen Dimension 190*100*30mm Weight 0.5kg Communication interface USB power Rechargeable Lithium battery Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 1000 Pieces/Year

Product Description

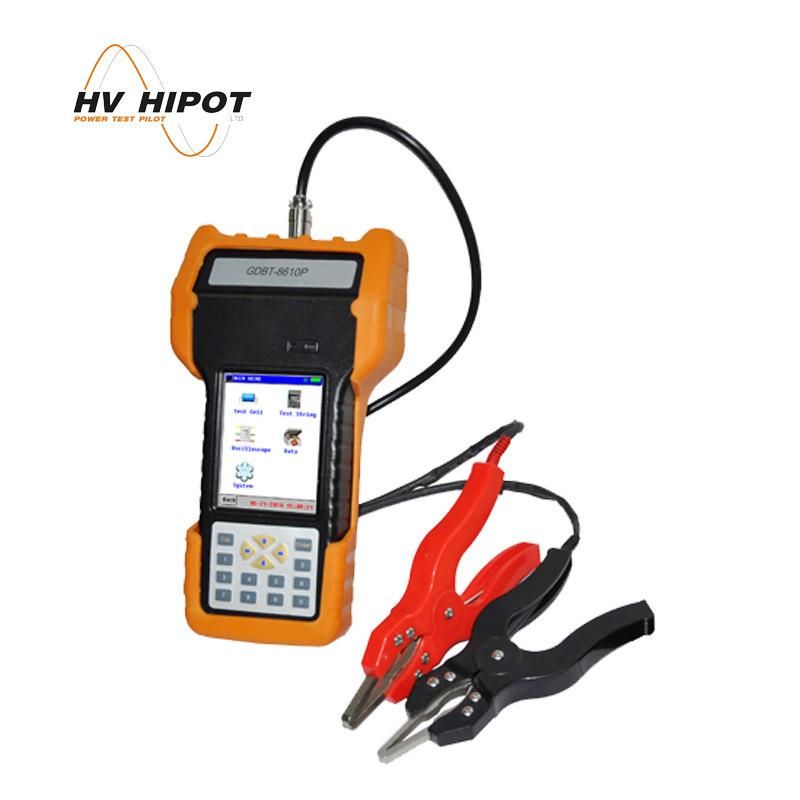

GDBT-8610P Portable Battery Cell Resitance Tester Impedance Tester






General Information

Regular maintenance and test is a "must-have" procedure for standby batteries. The excellent performance of 8610P for testing cell resistance and voltage will help you eliminate the weak batteries and ensure their performance.It is a new generation of battery tester with touch screen and strictly designed to evaluate and maintain all stationary batteries including Uninterruptible Power System.


Features

1. Test Unit battery and group battery.
2. Oscillograph function. Use oscillograph at anytime if necessary.
3. Data management, check and delete, and storage by USB disk.
4. Easy and safe operation.
5. Smart and portable hand-held device, rugged and easy-to-go.
6. Direct USB drive for software update and data transfer to PC for further analyzing.
7. Strong anti-interference in high current with stable and accurate performance.
8. Buzzer Alarm Function and over voltage protection.
9. System management, clock setting, measurement correction, system parameter set, procedure update. Software management function.


Specifications

Model No.	GDBT-8610P
Test range	Internal Resistance: 0.00mΩ -100mΩ; Voltage: 0.000V-16.00V
Min. test resolution	Internal Resistance: 0.01mΩ; Voltage: 1mV
Test accuracy	Internal resistance: ±2.0%rdg±6dgt; voltage: ±0.2%rdg±6dgt
Power supply	AC100~240V / DC8.4V-1A adapter
