• Model NO.：HJ-80
• Weight：0-100Kg
• Power Source：AC220V
• Load：30kg
• Mesa：300*350mm
• Amplitude：0~3mm Adjustable
• Power Frequency：50Hz, Frequency Is Not Adjustable
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-80 Weight 0-100Kg Power Source AC220V Load 30kg Mesa 300*350mm Amplitude 0~3mm Adjustable Power Frequency 50Hz, Frequency Is Not Adjustable Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

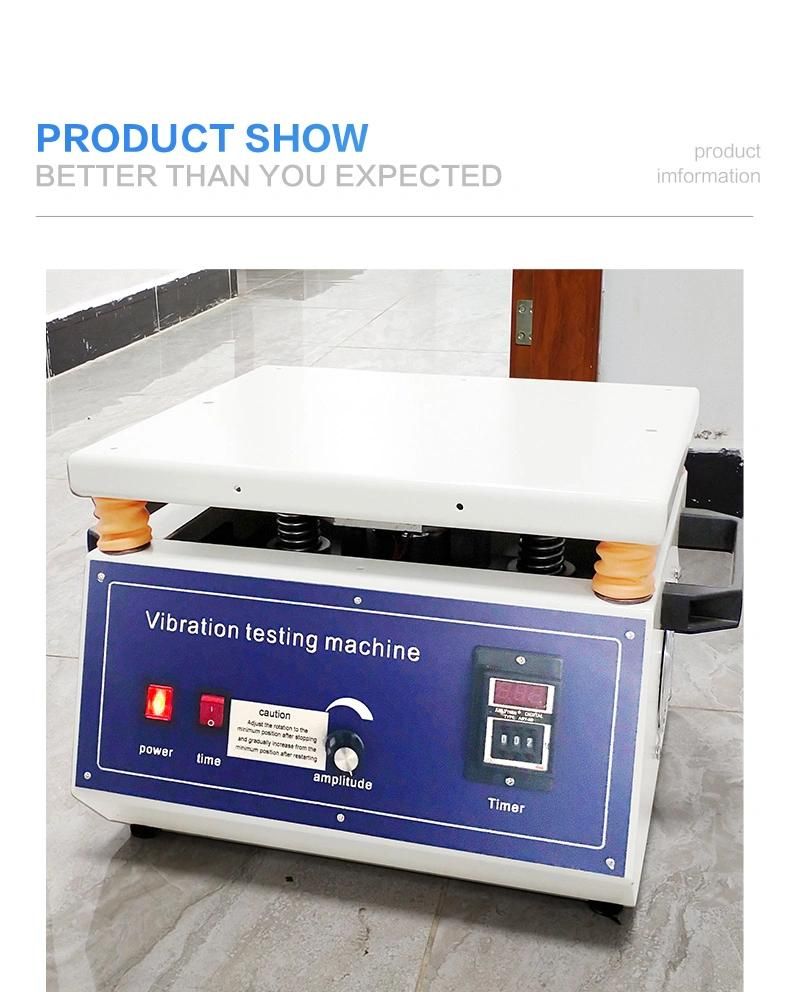

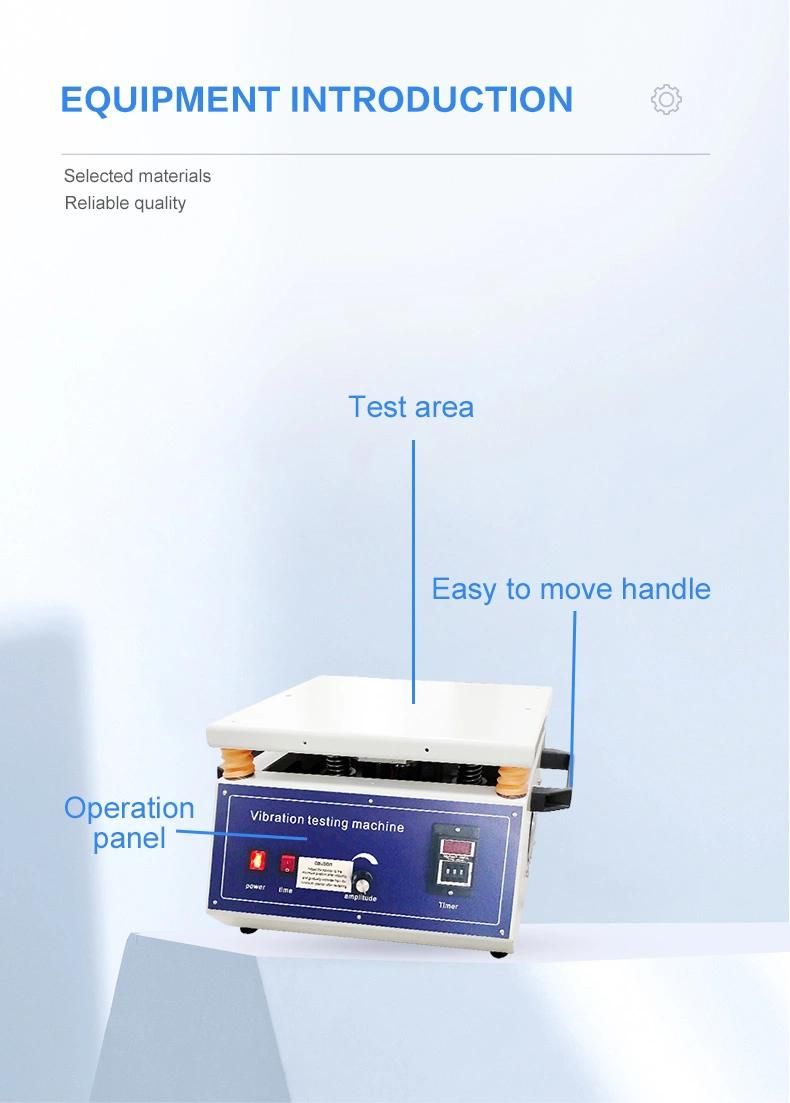

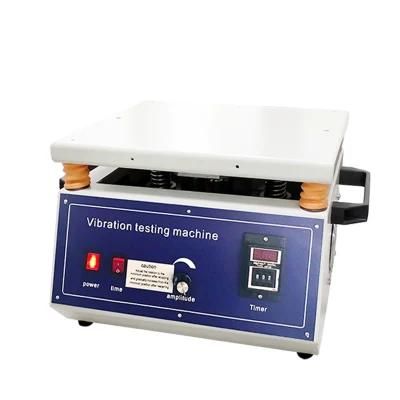

Electromagnetic vibration table is widely used in defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working conditions and structural strength tests. Sine wave, FM, time control

Features
1. Adopt the most advanced and simple operation technology, fixed frequency working mode
2. With time timing and countdown display function
3. Control parameters are displayed synchronously in real time without manual intervention.
4. The base of the machine adopts anti-vibration device, which is easy to install and runs smoothly, without the need to install anchor screws
5. Embedded amplitude prediction program and easy amplitude modulation
7. Four-point synchronous excitation, the table vibrates evenly
8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions to adapt to various test requirements of different industries
9. Increase the anti-interference circuit to solve the interference of the control circuit due to the strong electromagnetic field


Power frequency	50HZ, frequency is not adjustable
Amplitude	0~3mm adjustable
Mesa	300*350mm
Load	30kg
