Vlf Hv Hipot Test Equipment
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Accuracy Grade：0.5
- Power Source：AC220V
- Output Frequency：0.1Hz, 0.05Hz, 0.02Hz
- Output Voltage：30kv, 50kv, 60kv, 80kv or Others
- Capacity：0.6kVA ~ 2.4kVA
- Power Supply：220V 50Hz
Base Info
- Model NO.：VLF
- Loading Method：Static Load

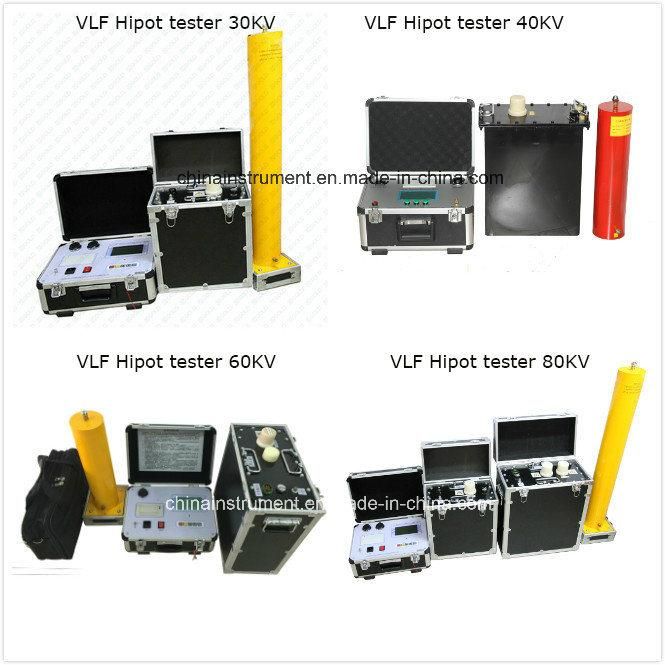

- Product Name：Vlf Hi Pot Test Hv High Voltage Very Low Frequency
- Transport Package：Packed in Container
- Specification：packing in 3 cases
- Trademark：Gold
- Origin：Chongqing
- HS Code：9031809090
- Production Capacity：100PCS,Month Hipot Tester
Description
Fuse
TubeFrequency/
Capacitance Dim.
(cm) Wt
(kg) Dim.
(cm) Wt
(kg) VLF-30 30KV/20mA 0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF 28× 37× 22 4 33× 18× 34 25 5A VLF-40 40KV/30mA 0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF 28× 37× 22 4 35× 20× 36 35 6A VLF-50 50KV/40mA 0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF 28× 37× 22 4 37× 24× 39 45 7A VLF-60 60KV/50mA 0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF 28× 37× 22 4 33× 18× 34
33× 18× 34 25+25 10A VLF-70 70KV/55mA 0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F 28× 37× 22 4 33× 18× 34
35× 20× 36 25+35 10A VLF-80 80KV/60mA 0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F 28× 37× 22 4 33× 18× 34
37× 24× 39 25+45 12A
About our company:
Tube
Capacitance
(cm)
(kg)
(cm)
(kg)
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF
33× 18× 34
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F
35× 20× 36
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F
37× 24× 39
VLF Hipot Tester Features:
- Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
- Overvoltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
- Overcurrent protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
- A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
Notes:
- Power supply requirement: AC50Hz, 220V, stability of frequency: fluctuation less than 0.5%.
- When using it, the capacitance of the sample should not exceed the rated capacity of the instrument. The overlow capacitance of the sample will affect the output wave form. If the capacitance is less than 0.05µF, the instrument cannot output normally.
- When using it, it is prohibited to boost voltage without load, or to connect with resistive load.
