CT PT Characteristic Tester Current Transformer Polarity Ratio Test Set

Huazheng Electric Manufacturing (Baoding) Co., Ltd.
  • Warranty：1 Years
  • Type：CT PT Analyzer

Base Info

  • Model NO.：HZCT-100B
  • Maxcapacity：0.8-10000
  • Accuracy Grade：0.1 Class
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Name：CT PT Analyzer
  • Storage：2000 Group
  • Output：0~100vrms,12arms,36A(Peak Value)
  • Voltage Measurement Accuracy：±0.2%
  • Humidity：≤90%
  • Usage：Class P,Tp CT & Vt
  • Power Supply：AC220V±10%,50Hz
  • Dimensions：340 mm 300 mm 150mm
  • MOQ：1
  • Certificate：ISO,IEC60044
  • Transport Package：Box
  • Specification：ISO,CE
  • Trademark：HuaZheng
  • Origin：Baoding, Hebei
  • HS Code：9030820000
  • Production Capacity：500set ,Year

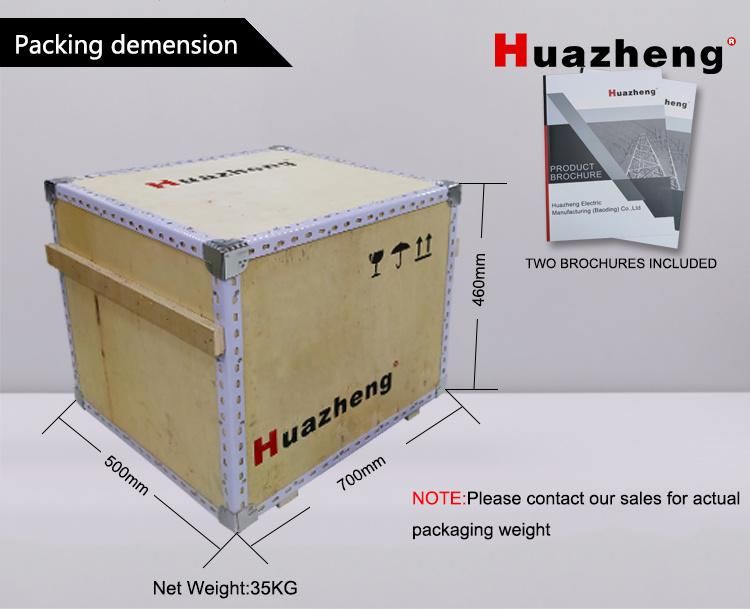

  • Package size per unit product：70.00cm * 50.00cm * 46.00cm
  • Gross weight per unit product：35.000kg

Description

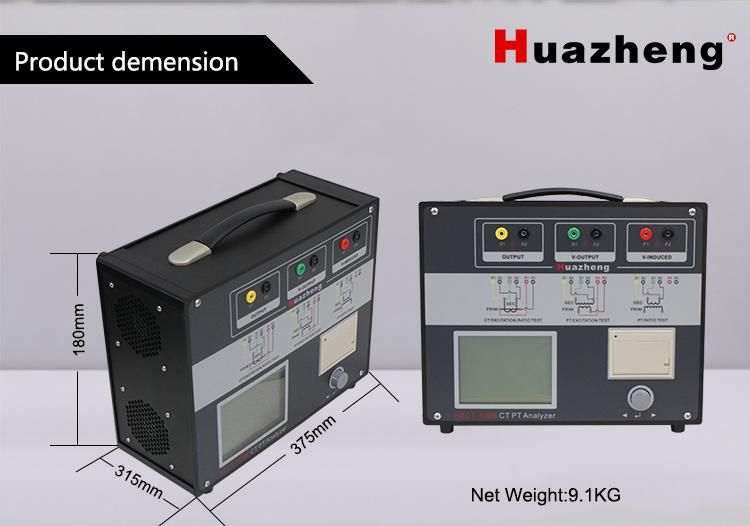

Parameter Weight and DimensionsDimensions:340 mm×300 mm×150mm,Weight<9kg

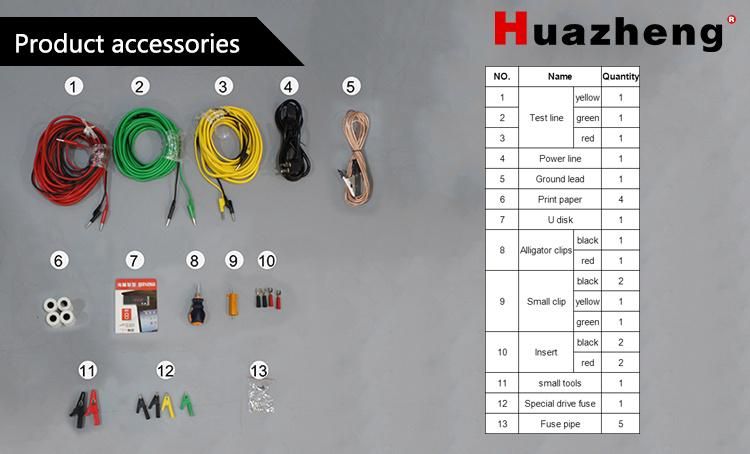

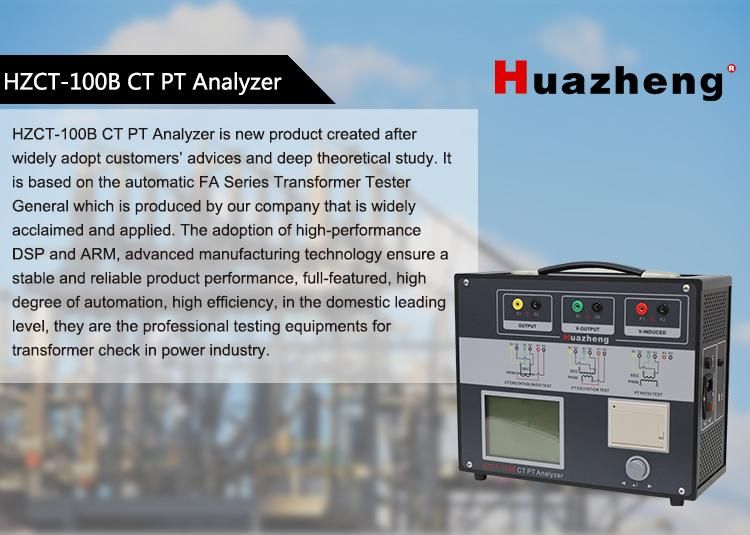

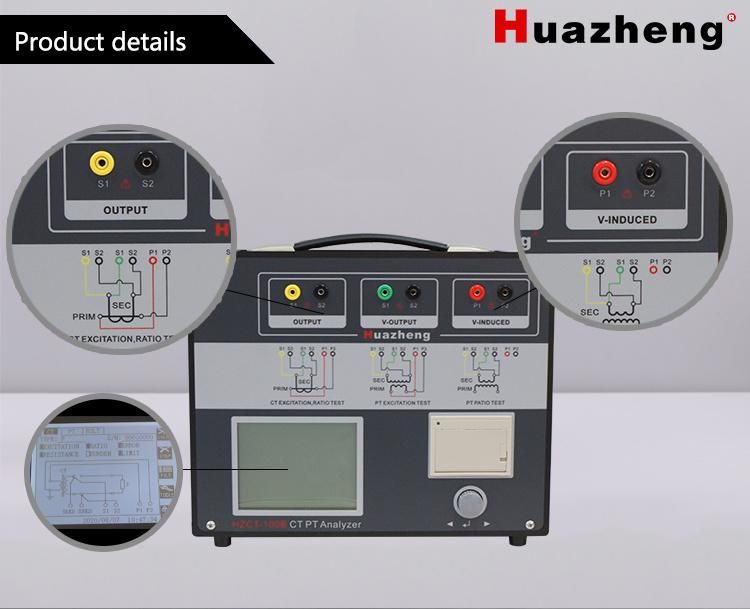

IV.Detailed Photos
CT PT Characteristic Tester Current Transformer Polarity Ratio Test SetCT PT Characteristic Tester Current Transformer Polarity Ratio Test SetCT PT Characteristic Tester Current Transformer Polarity Ratio Test SetCT PT Characteristic Tester Current Transformer Polarity Ratio Test SetCT PT Characteristic Tester Current Transformer Polarity Ratio Test Set
CT PT Characteristic Tester Current Transformer Polarity Ratio Test Set

V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
CT PT Characteristic Tester Current Transformer Polarity Ratio Test Set


VI.Customer Visit
CT PT Characteristic Tester Current Transformer Polarity Ratio Test Set


VII.Exhibition
CT PT Characteristic Tester Current Transformer Polarity Ratio Test Set

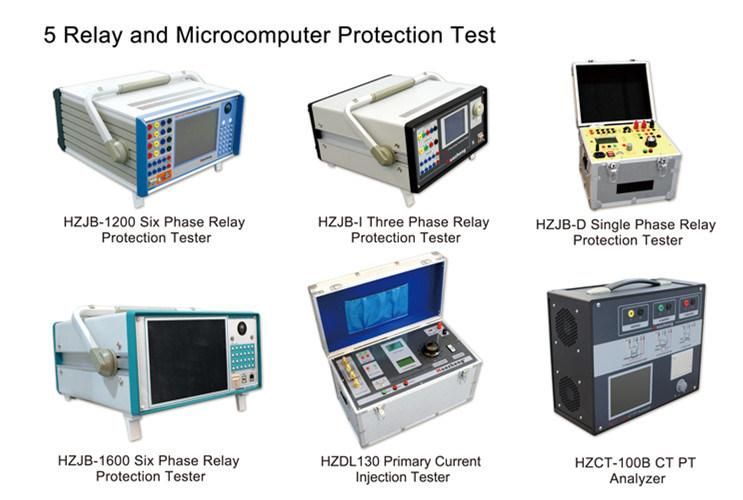

VIII.Similar Recommendation
