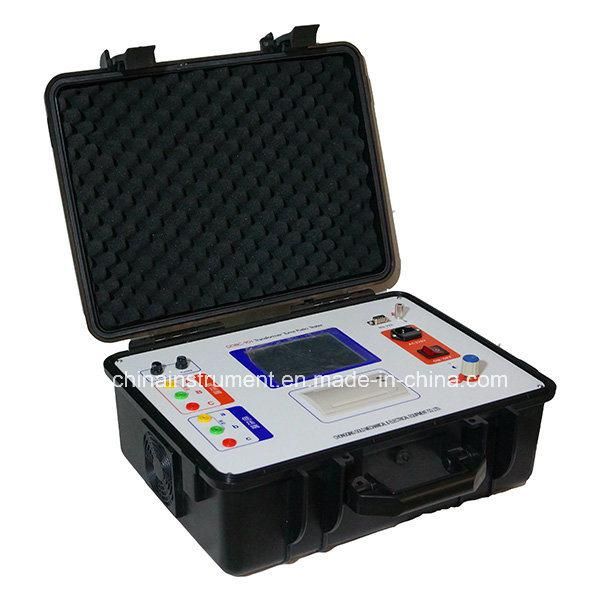

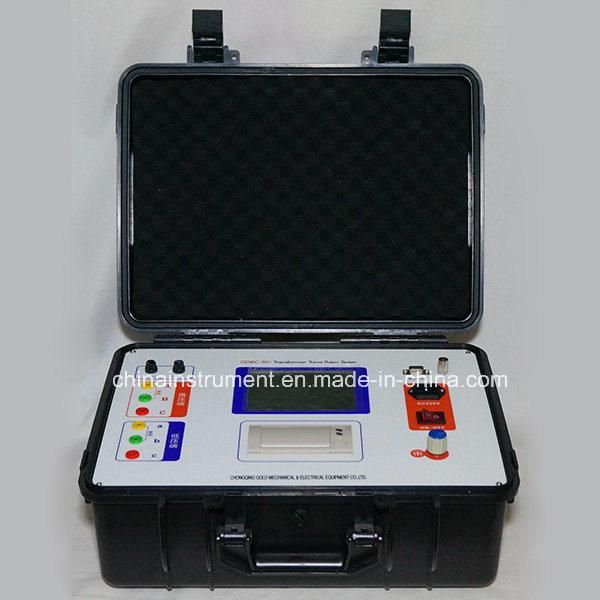

Automatic TTR Transformer Turn Ratio Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Apparatus：Transformer Tester for Turn Ratio , TTR Meter
  • Application：Transformer Turns Ratio Testing Kit TTR Tester
  • Function：Transformer Turn Ratio Meter , TTR Tester
  • Device：TTR Meter for Various Transformers
  • Ratio Measurement Range：1~10000
  • Group Measurement：1~12

Base Info

  • Model NO.：GDBC-901
  • Phase Measurement Error：1 Degree
  • Test Voltage：0~80V
  • OEM Service：Available
  • Warranty：1 Year
  • Transport Package：Wooden Case
  • Specification：ISO Certificate
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

1The voltage ratio measurement for three or singe phase transformer2The group vector measurement for three phase transformer.3The polarity measurement for single phase transformer or CT/PT4Voltage ratio error calculation5Current transformer ratio measurement6Excitation current measurement in ratio testing7Reproduction the AC test voltage from power source to reduce the effects of bad power source8Save the test results in the memory internal the tester9Print the test results by micro printer10Reverse connection detect unit to prevent the high voltage injected to operator11Over current protection unit integrated in software and hardware12Upload the test results to PC by RS232 and make word report by software


Technique Index:

1Ratio measurement range: 1-100002Group measurement: 1-123Phase measurement error: 1 degree4Ratio measurement error: 1-2000 ± 0.2%RDG   2000-10000  ± 0.5%RDG5Test voltage:0~80V, frequency 50Hz6Power supply: AC220V ± 10%, 50Hz/60Hz7Environment temperature: 0-50°C8Humidity: ≤85%RH9Size 400mm*350mm*200 mm     Weight:7kg
