High Voltage Test Transformer / AC DC Hipot Tester

Wuhan Goldhome Hipot Electrical Co., Ltd.

Type：Strength Testing Machine
Accuracy Grade：1
Load Way：Electronic Load
Loading Method：Dynamic Load
Display：Digital
Control：Manual Control

Base Info

Model NO.：hm-GTB
Weight：0-100Kg
Power Source：AC220V
Output Type：AC DC
Power：Electricity
Output Voltage：50-300kv
Output Current：AC From 0 to 50mA, DC From 0 to 38mA
Impedance Voltage：<12%
Surface Temperature-Raising：< 55°c
No-Load Current：< 4%
Continuous Working Time：<=60 Mins
Product Name：AC DC Hipot Tester
Transport Package：Wooden Box with Foam Inside
Specification：customize
Trademark：HMDQ
Origin：Hubei, China(Mainland)
HS Code：850421000
Production Capacity：500sets,Month

Description

120125 8520/12020160 9025/12025200 9530/12030250 100

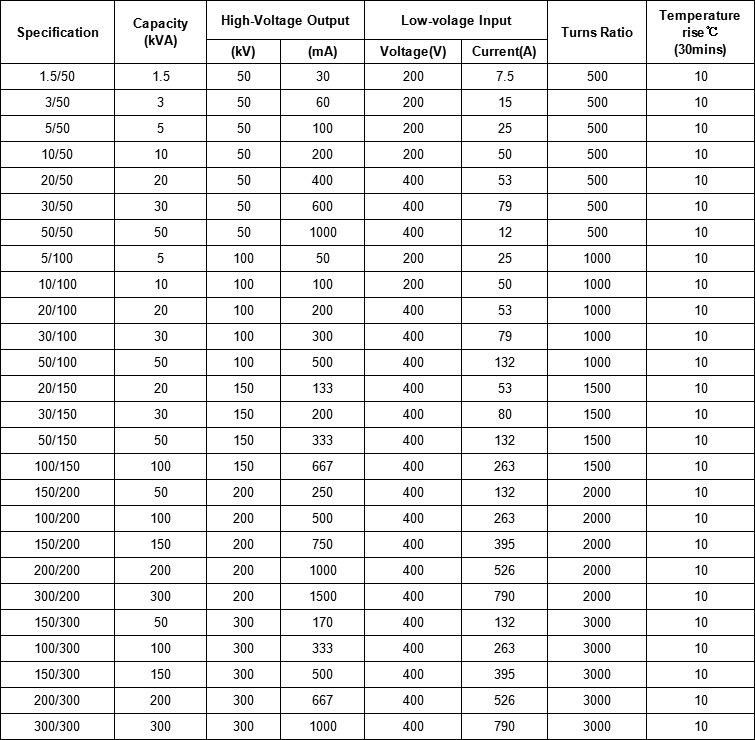

Oil-immersed Testing Transformer Parameter :

Inflatable Type Testing Transformer Parameter :

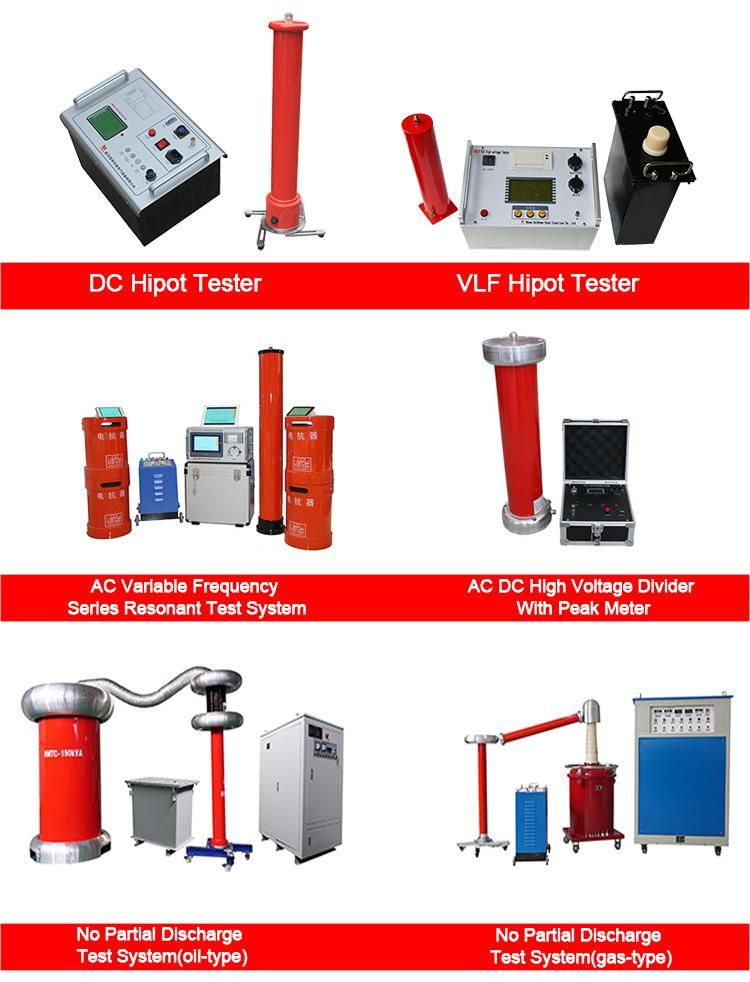

Similar Product :
