• Model NO.：STBM-3
• Loading Method：No
• Display：Digital
• Control：Electronic
• Weight：35kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stbm-3 Skid Resistance and Friction Tester
• Weight of Pendulum：1500g
• Moment of Pendulum′s Barycenter：410mm
• Face-on Static Pressure on Pavement：22.2n
• Distance Between Edge and Center of Pend：508mm
• Pendulum′s Sliding Distance on Pavement：126mm
• Transport Package：Wooden Case
• Specification：0.56CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STBM-3 Loading Method No Display Digital Control Electronic Weight 35kgs Power Source AC220V Oil Cylinder Position No Product Name Stbm-3 Skid Resistance and Friction Tester Weight of Pendulum 1500g Moment of Pendulum′s Barycenter 410mm Face-on Static Pressure on Pavement 22.2n Distance Between Edge and Center of Pend 508mm Pendulum′s Sliding Distance on Pavement 126mm Transport Package Wooden Case Specification 0.56CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

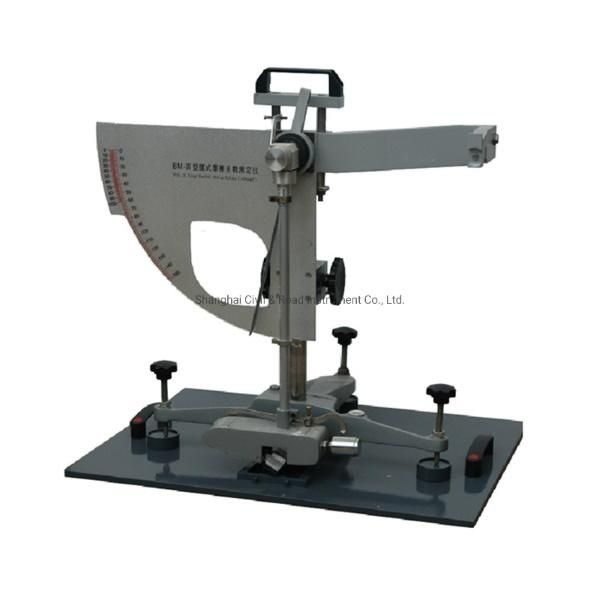

STBM-3 Skid Resistance and Friction Tester

Usage:
It is a kind of determination of pavement, airport runway, marking paint and so on friction coefficient of the instrument.
1. Used to test skid resistance on existing road surfaces,
2. Consisting of a pendulum arm, rotating about a spindle attached to a vertical pillar and mounted on a trianglar base with adjustable feet.

This method provides a measure of the skid resistance properties of a surface either in the field or in the laboratory. This method measures the skid resistance of a small area of a surface (approximately 0.01 m2) and this should be considered when deciding its applicability to a pavement surface which may have variable surface characteristics, e. G. Block paving. This apparatus is used for the skid resistance measurement of asphalt pavement and concrete pavement, in order to evaluate the skid resistance of pavement in moist condition.

The apparatus used for measuring road surface frictional properties. This apparatus come with an adjustable pendulum arm and a spring loaded rubber slider mounted on the end of the arm.The pendulum is raised and allowed to swing freely during operation, allowing the edge of the rubber slider to skid across the surface of specimen.

The pendulum is released from a horizontal position so that it strikes the sample surface with a constant velocity. The distance travelled by the head after striking the sample is determined by the friction of the sample surface.A reading of Skid Resistance is obtained.

Feature:
1.This is aluminium alloy box .
2.In stock, we can de delivery as soon as.


Item name	Pendulum Skid Resistance Tester
Standard	BS 812:114, EN 1097-8
Weight of pendulum	1500g
Moment of pendulum's barycenter	410mm
Face-on static pressure on pavement	22.2N
Distance between edge and center of pendulum	508mm
Pendulum's sliding distance on pavement	126mm
Weight	47Kg
Packing size	90x45x84CM
