15 Ton, 24 Ton, 30 Ton Manual Hydraulic Press
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Wooden Box
- Trademark：C-Tech
- Origin：China
Base Info
- Model NO.：PC-15F
- HS Code：90248000
- Production Capacity：200 Sets,Month
Description
Basic Info.
Model NO. PC-15F HS Code 90248000 Production Capacity 200 Sets/MonthProduct Description

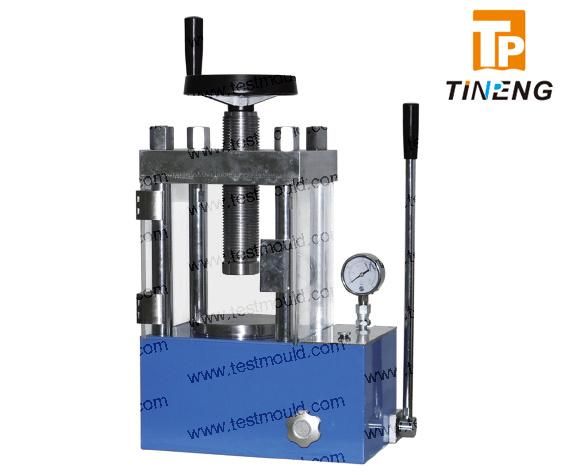

Manual Hydraulic Press 15 Ton,24 Ton,30 Ton
model PC desktop manual pellet press with easy operation and widely used in materials and ceramic research. The built-in hydraulic pump feathers auto return function.
Specifications:
| Model | PC-15F | PC-24F | PC-30F |
| Pressure measurment range | 0-15Ton(0-30Mpa) | 0-24Ton(0-34Mpa) | 0-30Ton(0-31Mpa) |
| Piston Diameter | Chromeplate hydro cylinder 80mm | Chromeplate hydro cylinder 95mm | Chromeplate hydro cylinder 110mm |
| Piston Travel | 30mm | 30mm | 40mm |
| Pressure gauge | two units Ton and Mpa | two units Ton and Mpa | two units Ton and Mpa |
| Weight | 42kgs | 44kgs | 65kgs |
Accessories included oil tin, hex wrenches,fixed spanners,o-rings
Optional accessories:Dies with variable size at extra cost
