ISO 9626 Medical Device Needle Tubing Stiffness Toughness Test Machine China Price
Pubtester Instruments Co., Ltd.- Standard：ISO9626
- Test Item：Bending Deflection Bending Force
- Needle Design：Regular Wall Extra Thin Wall Ultra Thin Wall
- Deflection Range：0-5mm
- Deflection Accuracy：0.01mm
- Setting Load：1-80n
Base Info
- Model NO.：MRT-01
- Force Accuracy：0.01n
- Needle Bracket Distance：0-60mm
- Distance Accuracy：0.1mm
- Loading Speed：0-10mm,Min (Stepless Speed)
- Trademark：Pubtester
- Origin：Jinan, Shandong
- Production Capacity：30 Sets,Quarter
Description
Extended ApplicationsInfusion needle Used to detect the rigidity value of the infusion needle tube Needle tube Determination of rigidity values such as stainless steel needles, blood sampling needles, dental needles and biopsy needles
Technical Specifications
Standards
GB 15811, YBB00092004-2015, GB 18457
Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.
MTT-01 Medical Needle Toughness Tester
MTT-01 Medical Needle Toughness Tester is suitable for measuring the toughness of human intradermal, subcutaneous, muscle and intravenous injection needle tubes and other rigid stainless steel needle tubes for medical equipment.
Technical Features
Test Principle
Fix one end of the needle tube on the fixture, adjust the prescribed span and select bending angles as following, 25° for normal wall, 20° for thin wall, and 15° for ultra-thin wall.
Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle tube.
Applications
Technical Specifications
Standards
ISO9626-1991, GB/T 18457-2015, GB/T 15811-2016
Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.
FAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
Technical Specifications
| Specifications | MRT-01 |
| Deflection Range | 0-5mm |
| Deflection Accuracy | ±0.01mm |
| Setting Load | 1-80N |
| Force Accuracy | ±0.01N |
| Needle Bracket Distance | 0-60mm |
| Distance Accuracy | 0.1mm |
| Needle Tube Specifications | 0.3mm-3.4mm (Normal wall, thin wall, ultrathin wall) |
| Loading Speed | 0-10mm/min (Stepless speed) |
| Speed Accuracy | ±0.1mm/min |
| Instrument Dimension | 300mm (L) x 300mm (W) x 400mm(H) |
| Net Weight | 23Kg |
| Power Supply | 220V/50Hz |
Standards
GB 15811, YBB00092004-2015, GB 18457
Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.

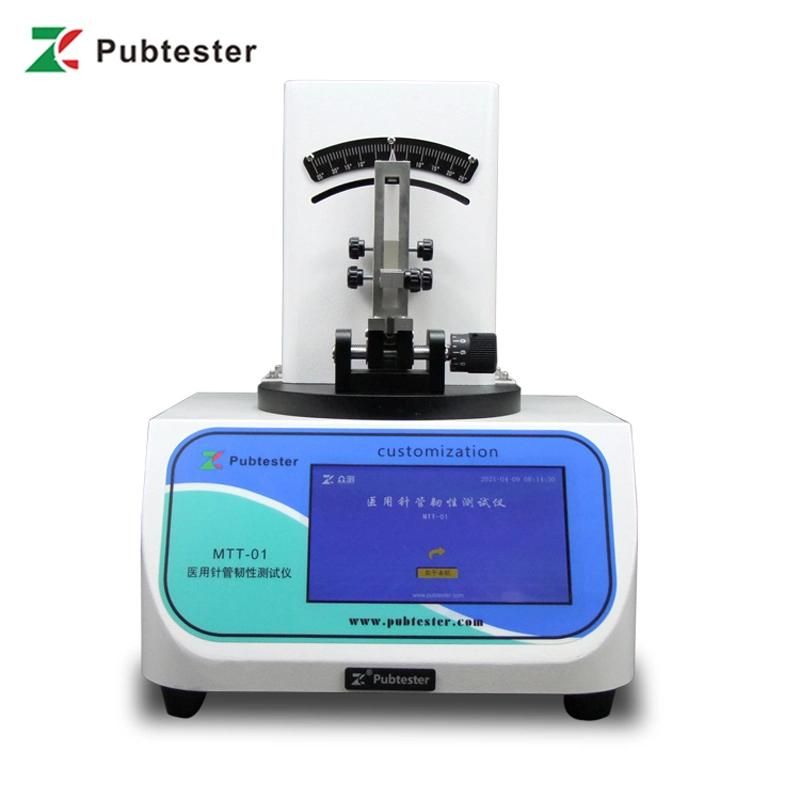

MTT-01 Medical Needle Toughness Tester
MTT-01 Medical Needle Toughness Tester is suitable for measuring the toughness of human intradermal, subcutaneous, muscle and intravenous injection needle tubes and other rigid stainless steel needle tubes for medical equipment.
Technical Features
- 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience
- Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions
- Automatic calibration, simple and convenient operation
- Brand-new UI interface design, intuitive operation interface, greatly improving the operation experience
- Support a variety of specifications sample test, normal wall, thin wall, ultra-thin wall can freely choose
- With automatic data storage, power-off automatic memory function
- Powerful data storage function, which can store more than 6000 data
- The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.
Test Principle
Fix one end of the needle tube on the fixture, adjust the prescribed span and select bending angles as following, 25° for normal wall, 20° for thin wall, and 15° for ultra-thin wall.
Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle tube.
Applications
| Basic Applications | Extended Applications |
| Disposable sterile injection needle | Infusion needle |
| Prefilled injection needle | Needle tube |
Technical Specifications
| Specifications | MTT-01 |
| Test Frequency | 0.5Hz ± 0.025Hz |
| Bending Angle | 15°, 20°, 25° |
| No. of Test | Bi-directional force 20 times |
| Needle Tube Specification | Regular wall, thin wall, ultra thin wall optional |
| Nominal Specifications | 0.2~3.4mm |
| Bending Distance | Accuracy: ±0.1mm |
| Instrument Dimension | 340mm (L) x 230mm(W) x 320mm(H) |
| Net Weight | 12Kg |
| Power Supply | 220V 50Hz |
Standards
ISO9626-1991, GB/T 18457-2015, GB/T 15811-2016
Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.
