• Model NO.：MCT-03
• Specimen：Crayon Lipstick
• Trademark：Pubtester
• Origin：Shandong, China

Basic Info.

Model NO. MCT-03 Specimen Crayon Lipstick Trademark Pubtester Origin Shandong, China

Product Description

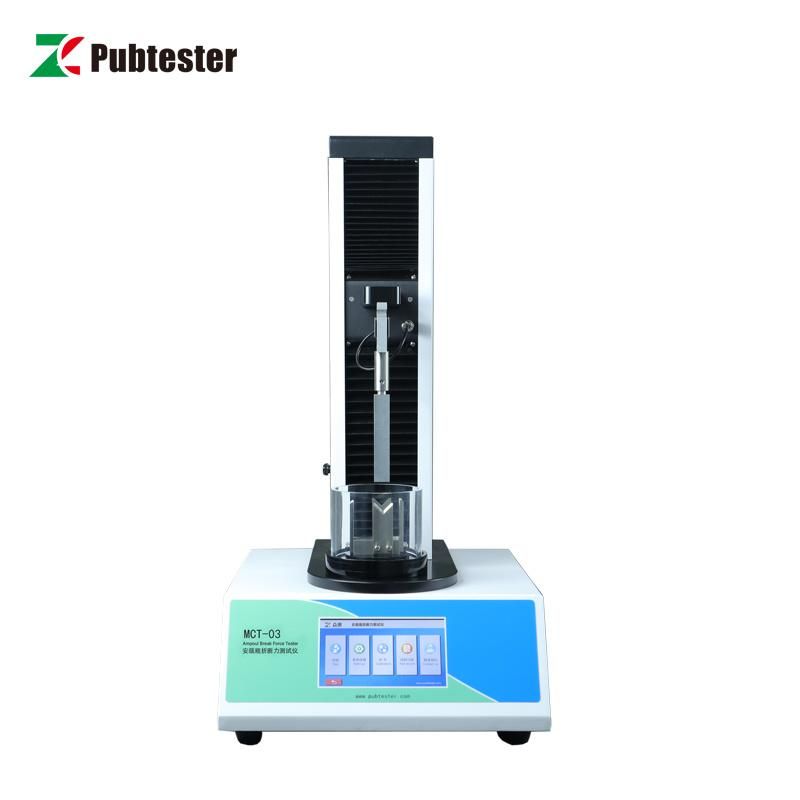

MCT-03 ISO 9187 Pharmaceutical ampouls  breaking force tester

MCT-03 ISO 9187 Pharmaceutical ampouls  breaking force tester  is suitable for measuring the break force of various volumes of ampoules.



Technical Features

• The 7-inch color touch screen with intelligent data processing functions provides users with a comfortable and smooth operating experience
• High-end motor + ball screw drive, stepless speed adjustment
• Simple and intuitive operation interface, convenient user-defined test functions and perfect data analysis and reporting functions
• Equipped with an anti-splash shield to prevent glass debris from splashing
• Automatic calibration, easy operation process
• New UI interface design, intuitive operating interface, bringing a great improvement in operating experience
• With automatic data storage, automatic power-down memory function
• With powerful data storage function, which can store more than 50,000 data
• The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Test Principle

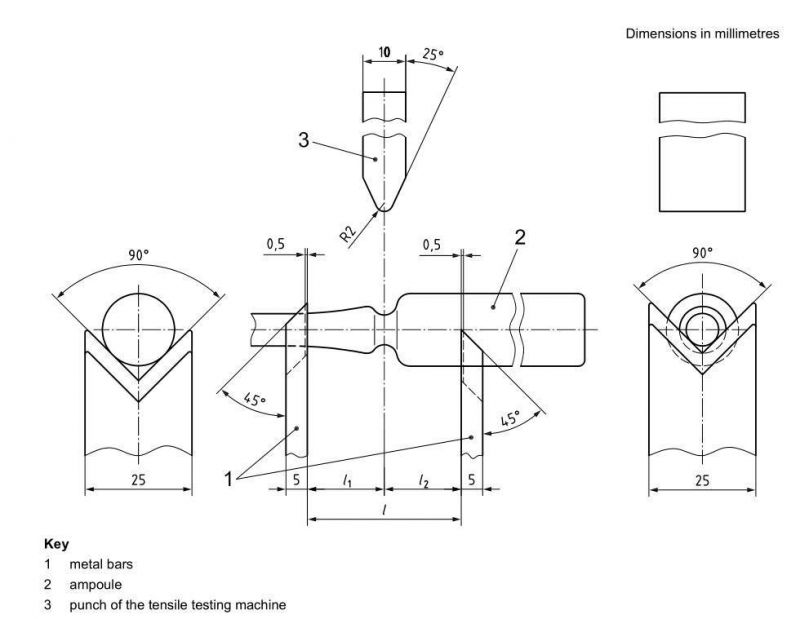

An ampoule specimen is placed on the fixtures and the pressing head is driven down by the power system at the speed of 10mm/min. The breaking strength is detected by the high precision load cell when the pressing head touches the ampoule neck and breaks it.


Applications

Basic Applications	Extended Applications
Ampoules Break Force	Break force, down force for other bottles
	Lipstick break force
	Crayon break force

Technical Specifications

Specifications	MCT-03
Test Item	Break force
Test Range	0.1~300N
Accuracy	0.5% FS
Resolution	0.001N
Test Speed	0.05-600mm/min
Speed Accuracy	1%
Bracket Distance	1-30ml (Customized)
Instrument Dimension	340mm (L) x 230mm(W) x 320mm(H)
Net Weight	15Kg
Power Supply	220V/50Hz

Standards
ISO 9187, GB2637, YY00332002

Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture, protective cover

About Us

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.


FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
