• Model NO.：MCT-04
• Trademark：Pubtester
• Origin：Shandong, China

Basic Info.

Model NO. MCT-04 Trademark Pubtester Origin Shandong, China

Product Description

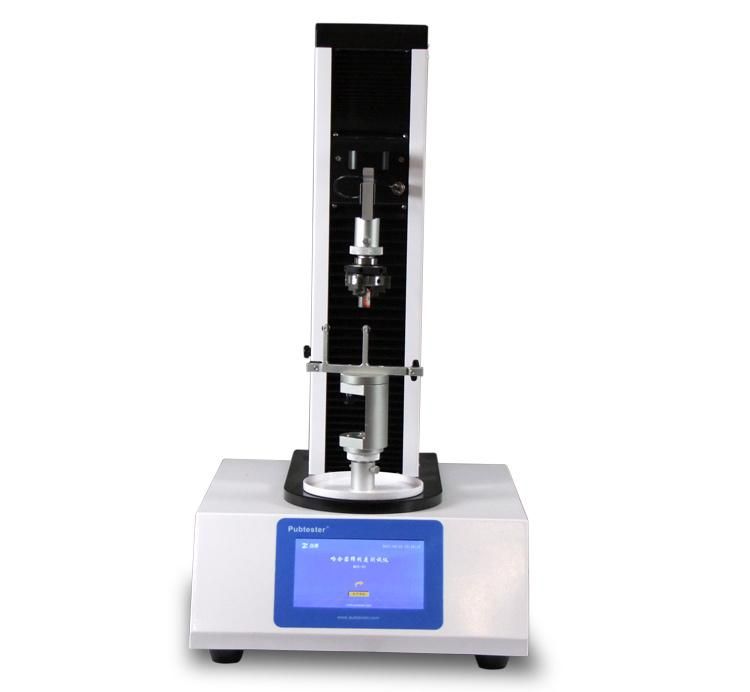

MCT-04 Scalpel Blade Sharpness Tester

MCT-04 Scalpel Blade Sharpness Tester is used to measure the sharpness of scalpel blades, and is suitable for stapler manufacturers, medical equipment inspection institutes, universities, research institutions, etc.


Product Features

• The 7-inch color touch screen with intelligent data processing functions provides users with a comfortable and smooth operating experience
• Simple and intuitive operation interface, convenient user-defined test functions and perfect data analysis and reporting functions
• Can test the three cutting force at front, middle and rear points, calculate the peak force automatically
• Automatic calibration, easy operation process
• New UI interface design, intuitive operating interface, bringing a great improvement in operating experience
• Support a variety of specifications sample testing
• With automatic data storage, automatic power-down memory function
• With powerful data storage function, which can store more than 50,000 data

Applications

Basic Applications	Extended Applications
Scalpel blade	Other shape blades

Technical Specifications

Specifications	MCT-04
Test Item	Sharpness
Test Range	0-50N (100N 250N optional)
Accuracy	0.5% FS
Resolution	0.001N
Testing Speed	0.05-600mm/min
Cutting Material	Suture
Instrument Dimension	340mm (L) x 230mm(W) x 320mm(H)
Net Weight	15Kg
Power Supply	220V/50Hz

Standards
YY0174, YY0876

Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture

About Us

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.


FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
