• Model NO.：TH - 100
• Origin：Jiangsu, China
• HS Code：9025800000
• Production Capacity：231 Sets

Basic Info.

Model NO. TH - 100 Origin Jiangsu, China HS Code 9025800000 Production Capacity 231 Sets

Product Description

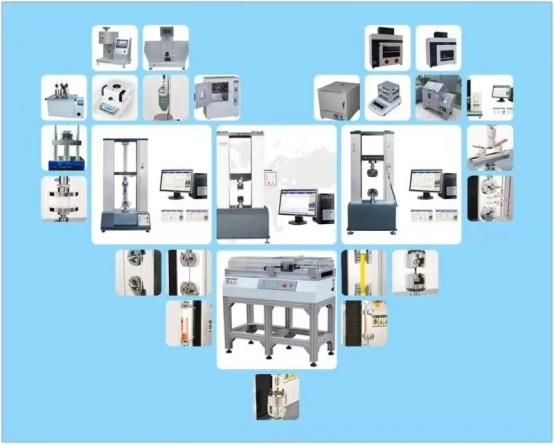

1. Qiantong main scope of testing machinesElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)2. Product
1) Meeting standards:GB/T 2410,ASTM D 1003,ISO 13468,ISO 14782
2) Meeting measurement of haze and total transmittance:CIE-A,CIE-C,CIE-D65
3) Meeting the test of compensation method and can provide the more accurate testing results
4) Have the open measuring area and can satisfy to measure any size sample
5) Used 5.0 inch TFT display screen, have good man-machine interaction interface
6) 2 kinds of placement states, vertical and horizontal, convenient for sample placement
7) Adopt LED light, have long used life
8) No warm-up is needed, the test can be conducted after starting up the calibration, the test time is short, 3 seconds
9)Small size, light weight, easy to carry
 3. Specifications

Type	TH-100
Light source	CIE-A,CIE-C,CIE-D65
Meeting standard	ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Measurement data	HAZE, T
Spectral response	CIE Spectral function Y/V(λ)
Optical structure	0/d
Illumination and sample aperture size	16.5mm/21mm
Range	0-100%
Haze resolution	0.01 Unit
T resolution	0.01 Unit
Haze repeatability	≤0.1 Unit
T repeatability	≤0.1 Unit
Sample size	Thickness≤150mm
Storage data	20000 pieces
Connector	USB connector
Power	DC24V
Working temperature	+10 - 40 °C (+50 - 104 °F)
Storage temperature	0 - 50 °C (+32 - 122 °F)
L*W*H	310mmX215mmX540mm
