• Model NO.：GD-0618B
• HS Code：903180900
• Production Capacity：10 Sets , Month

Basic Info.

Model NO. GD-0618B HS Code 903180900 Production Capacity 10 Sets / Month

Product Description

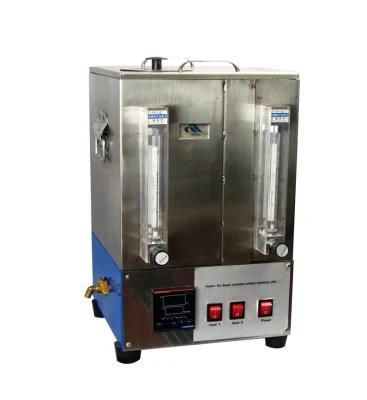

GD-0618B ASTM D4124 Petroleum Asphalt Four-Component Tester


Introduction:
GD-0618B ASTM D4124 Petroleum Asphalt Four-Component Tester is based on the industry standard of the people's Republic of China 0509-2010 JTG and ASTM D4124 "petroleum asphalt four-component determination method" ,JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering in T 0618-1993 "Asphalt chemical composition test (four-component method)" provides the design and manufacture of it. It is the ideal instrument for measuring petroleum asphalt saturate, aromatic, resin and asphaltene four components.

Asphalt Four-Component Teste can also refer to People's Republic of China industry standards SH / T 0266-1992 (1998) " Petroleum asphaltene content determination method" to measure diesel, fuel oil, lubricating oil, asphalt and remove low boiling point fractions of crude oil asphaltene before 260 ºC.


I. Main technical specifications:
(I) Heating furnace
1. Electric heater power range: 100W ~ 1000W, stepless adjustable;
2. Dimension: 270mm × 160mm × 115mm (length × width × height);
3. Total power consumption: less than 1200W.
(II) Circulating water bath --HWY-10 multifunction circulation water bath
1. Bath volume: 10L;
2. Temperature range: -10 ºC ~ 95 ºC;
3. Constant temperature accuracy: ± 0.2 ºC;
4. The cycle of water: ≥4L / min;
5. Dimensions: 530 mm × 400 mm × 430 mm (length × width × height);
6. Total power consumption: less than 1100W.
(III) Base and column
1. Base size: 345mm × 210 mm;
2. Column total height: 1120 mm.



II. Optional accessories
1. Vacuum drying oven: a vacuum of 267Pa (2 mm Hg);
2. High temperature furnace: 0 ºC ~ 1000 ºC, there is an automatic temperature controller;
3. Balance: Weighing 120g, the sense of the amount of 0.1mg.
