• Model NO.：NOC-02
• Gas Supply Pressure：0.25-0.7MPa
• Port Size：8 mm PU Tubing
• Trademark：Pubtester
• Origin：China

Basic Info.

Model NO. NOC-02 Gas Supply Pressure 0.25-0.7MPa Port Size 8 mm PU Tubing Trademark Pubtester Origin China

Product Description

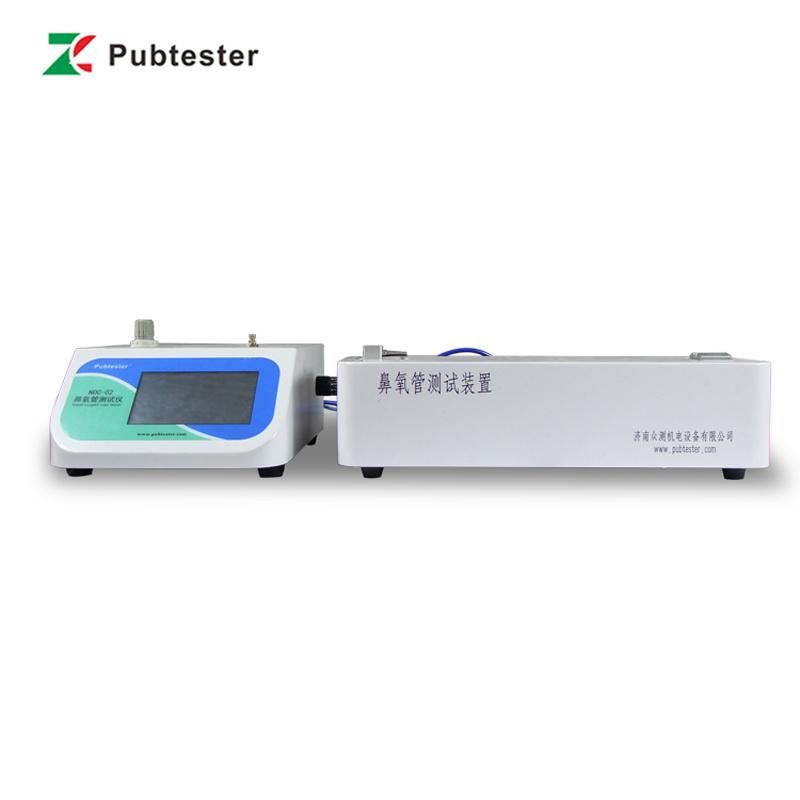

NOC-02 Nasal Oxygen Cannula Tester

NOC-02 Nasal Oxygen Cannula Tester, meets the test requirements of YY/T 1543-2017 "Nasal Oxygen Cannula ", is used to test the airflow resistance, flatness resistance, leakage test, compressive strength, patency and other properties of the nasal oxygen cannula. NOC-02 is suitable for all nasal oxygen cannulas, disposable one or connected to a humidification bottle and a mask.


Technical Features
Specialty Design

• Five test functions: airflow resistance, flatness resistance, leakage test, compressive strength, and patency
• 7-inch color touch screen control, intuitive operation interface, which brings a great operating experience
• Equipped with a micro printer, print the test results in real time
• With high-precision pressure sensor, the output pressure can be controlled stably by rotating the pressure knob
• High-precision flow meter can test the flow through the catheter accurately
• The unique rotating wheel design can meet the flatness resistance of nasal oxygen cannulas with various inner diameters
• Universal cone test interface, compatible with most products
• Powerful data storage function, which can store more than 50000 data
• Micro printer and USB interface, convenient for data output and transmission
• Overload protection and power-down memory functions ensure users' safety
• The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail (optional)
• Pubtester also provides professional customization services to meet the individual needs of users in fixtures, software, etc.
• Free software upgrade lifetime

Test Principle:
Airflow resistance: Adjusting the test pressure and rated flow, record the pressure change before and after the nasal oxygen tube is inserted (△P=P2-P1), which is the airflow resistance.
Flatness resistance: After completing the airflow resistance test, bend the end of the nasal oxygen cannula into a U shape, and record the flow change after stabilization (△Q=Q1-Q2).
Patency: Ensure the oxygen flow rate of no less than 15L/min to pass under normal oxygen pressure.

Applications
Five test functions: airflow resistance, flatness resistance, leakage test, compressive strength, and patency of nasal oxygen cannulas

Technical Specifications

Specifications	NOC-02
Test Range	0~600 KPa; 0~87psi (standard)
Specification of Inflatable Head	Inner diameter: Φ5.5~8.5 mm(standard) (Others can be customized)
Gas Supply Pressure	0.25 Mpa ~0.7 Mpa(Not in supply scope)
Port Size	Φ8 mm PU Tubing
Mainframe Dimension	325mm(L)×430mm(W)×205mm(H)
Test Chamber Dimension	550mm(L)×200mm(W)×168mm(H)
Power Supply	AC 220V 50Hz
Net Weight	Mainframe: 8.8kg; Test chamber: 6.4kg; 15.2 kg in total

Standards
YY/T 1543-2017

Configuration
Standard configuration:Mainframe, Test Chamber, Micro Printer
