Lsst-01 Gross Leak Tester for Medical Package
Pubtester Instruments Co., Ltd.- Warranty：12 Months
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V
- Test Range：0~600kpa; 0~87psi (Standard)
- Test Range 2：0-10kpa 0-1.45psi
Base Info
- Model NO.：LSST-02
- Gas Supply Pressure：0.4MPa~0.7MPa
- Trademark：Pubtester
- Origin：China
Description
Extended ApplicationHigh-pressure Test The maximum pressure applied can be 1.6MPa Pilfer-proof Closure Seal performance tests of various pilfer-proof closures Three-sided Sealing Materials Tests of packaging bags with three-sided seal and one-sided open Compression Resistance of Medical Blister Pack Tests of various blister packs Soft Tubes Tests of various soft tubes for daily chemical products including toothpaste, facial cleaner, cosmetics as well as medical creams and some food products Aerosol Valves Tests of various aerosol valves, e.g. vales of pesticide, hair spray, auto spray paint and medical spray packages
Technical Specifications
Standards
ASTM F2096, ASTM F2054, ASTM F1140, ISO 11607-1, ISO 11607-2, GB 18454, GB 19741, GB 10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005
Configuration
Standard configuration: Instrument, dual load cell, Test Frame, Micro-printer, Gross leak test fixture
Optional Configuration: Professional software, Communication cable, Test Accessories (Fixtures for Closed Package Restraining Test, Open Package Unrestrained Test, Fixture for Plastic Pilfer-proof Closure Test, Flexible Tube Test and Aerosol Vale Seal Performance and Test Device for Blister Pack Seal Performance).
Note: 1. The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers will need to prepare for gas supply.
ABOUT US

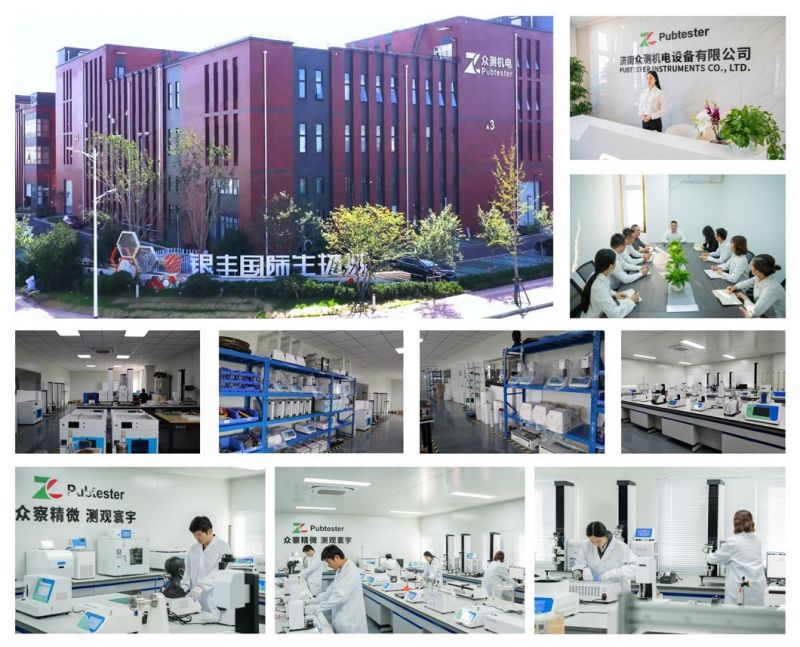

Established in Jinan, China, Pubtester Instruments Co., Ltd has developed into a major manufacturer and supplier of flexible packaging testing instruments in China. In the year of 2020, Pubtester launched a series of testing instruments specilized in medical device (medical dressings, syringes, catheters, gloves and aseptic packaging, etc), which meet the increasing testing demand for medical industry since 2019. Pubtester has its own packaging testing center, equipped with more than 80 sets of testing instruments, which can perform barrier, force and strength, heat sealing, hot tack, coefficient of friction, thickness, tearing, impact, heat resistance, leakage, flex durability , adhesion, color, fastness and other testing items, and provide testing services to customers. By 2021, Pubtester instruments have been exported to more than 40 countries and areas including UK, Germany, Portugal, Spain, Turkey, Greece, Ukraine, UAE, Saudi Arabia, Tunisia, Nigeria, Morocco, Kenya, Thailand, Malaysia, India, Indonesia, Vietnam, Columibia, Mexico, etc. Pubtester has a great technical team of professionals, all of whom have more than 10 years experience in packaging testing industry, which provide our customers with comprehensive technical services and solutions all the time.
Technical Specifications
| Specifications | LSST-02 |
| Test Range | 0~600kPa; 0~87psi (Standard) 0-10kpa;0-1.45psi(Standard) 0~1.6 MPa;0~232.1 psi (Optional) |
| Gas Injection Head Dimension | Φ10mm (Standard), Φ4mm, Φ1.6mm (Optional) |
| Gas Supply Pressure | 0.4MPa~0.7MPa(Not in supply scope) |
| Port Size | Φ8mm PU tubing |
| No. of Load Cell | 2 (Free selection) |
| Instrument Dimension | 310mm(L)×370mm(W)×150mm(H) |
| Pedestal Size | 305mm(L)×356mm(W)×325mm(H) |
| Power Supply | AC 220V 50Hz/110V 60Hz |
| Net Weight | 25kg |
Standards
ASTM F2096, ASTM F2054, ASTM F1140, ISO 11607-1, ISO 11607-2, GB 18454, GB 19741, GB 10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005
Configuration
Standard configuration: Instrument, dual load cell, Test Frame, Micro-printer, Gross leak test fixture
Optional Configuration: Professional software, Communication cable, Test Accessories (Fixtures for Closed Package Restraining Test, Open Package Unrestrained Test, Fixture for Plastic Pilfer-proof Closure Test, Flexible Tube Test and Aerosol Vale Seal Performance and Test Device for Blister Pack Seal Performance).
Note: 1. The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers will need to prepare for gas supply.
