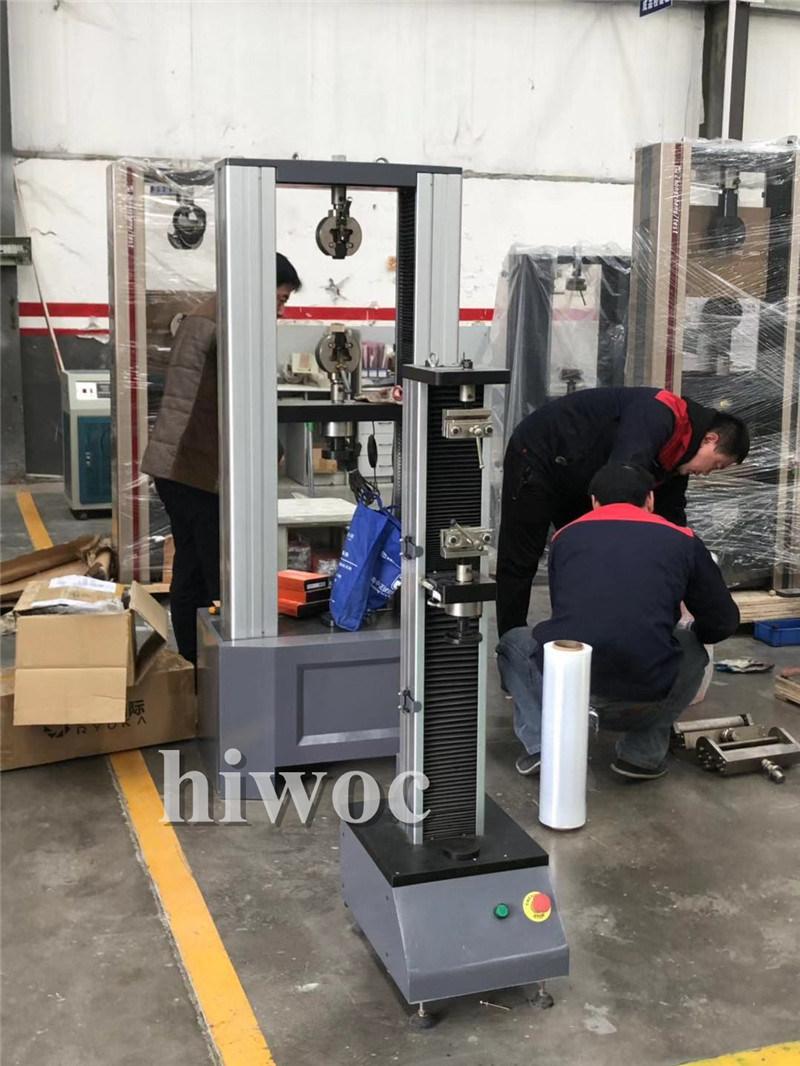

Electronic Universal Testing Machine 5000n Single Column (paper test)

Jinan Hiwoc Group Co., Ltd.
  • Max Diameter of Workpiece：Can Be Customized
  • Mass Scope of Workpiece：Could Bd Customized

Base Info

  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：Customzied
  • Oil Cylinder Position：None
  • Maximum Test Force (Kn)：05 1 2 5 10 20 50 100
  • Test Machine Level：1 or 0.5
  • Operation Mode：Microcomputer Control (Chinese or English Software
  • Force Measurement Range：2%-100% or 4%-100% of The Maximum Test Force
  • Deformation Display Error：±1% or±0.5%
  • Test Stroke：Could Be Customized
  • Working Environment：Temperature -45 ° C, Humidity 20% -80%
  • Protection Function：Overload Protection, Limit Protection
  • Meet The Standard,：Accord to National GB,T2611 Standard
  • OEM：Support
  • Transport Package：Plywood Case
  • Specification：700x580x1720mm
  • Trademark：Hiwoc
  • Origin：China
  • Production Capacity：50000sets,Year

Description

Main SpecificationWDW05   1   2   5StructureSingle-arm structureMaximum test force (KN)05   1   2   5   10   20   50   100Test machine level1 or  0.5Operation ModeMicrocomputer control (Chinese or English software operation)Force measurement range2%-100% or 0. 4%-100% of the maximum test forceTest force accuracy±1% or ±0.5%  better than indication valueDeformation display error±1% or±0.5%Speed adjust rangeStandard model:0.01-500mm/min
High configuration:0.001-500mm/minTest Stroke≥600mm(could be customized according to customer need)Test space adjustment mechanismE-type imported AC servo motor, low noise synchronous belt driveMeet the standard,Accord to national GB/T2611 standardProtection functionOverload protection, limit protectionSupply power220VWorking environmenttemperature -45 ° C, humidity 20% -80%Fixture toolAccording to the customer's requirementsOverall450x260x1470mmWeight120KG

Welcome to our factory to inspect!!
