• Model NO.：WAW-1000L
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：10000kg
• Power Source：AC380V,220V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：300kn,600kn,1000kn,2000kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Safe：with Protection Net Over Loading Limit
• Grip：Bolt or Hydraulic or Winding Clamp
• Test Force Accuracy：1 Class
• . Max Tensile Space：10m or Customized
• Max Piston Speed：200mm,Min
• Bolt Distance：500mm
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：10002*900*1500mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

Basic Info.

Model NO. WAW-1000L Loading Method Static Load Display Computer Control Computer Control Weight 10000kg Power Source AC380V/220V Oil Cylinder Position Under Application Steel Rebar, Tube, Metal, Copper, etc Capacity 300kn/600kn/1000kn/2000kn Test Range 2%~100% Color White, Blue or Customized Safe with Protection Net Over Loading Limit Grip Bolt or Hydraulic or Winding Clamp Test Force Accuracy 1 Class . Max Tensile Space 10m or Customized  Max Piston Speed 200mm/Min Bolt Distance 500mm Transport Package Standard Exporting Plywood Case with Free Fumigati Specification 10002*900*1500mm Trademark HST or OEM Origin China HS Code 9031809090 Production Capacity 300 Set/Month

Product Description

Waw-L Computer Control Steel Rope Chain Horizontal Tensile Test Machine
1. Application :

WAW-L series Computer Control Eletro-Hydraulic Horizontal Tensile Testing Machine adopting hydraulic drive, electro-hydraulic servo control technology, computer data acquisition and processing, enabling closed-loop control and automatically test high-precision test equipment,mainly conposed by the host, oil source (hydraulic power source), meansuring and control systems and test grip, the maximum test force 2000kN with 1 class test accuracy

2. Host
It is a suitable for testing long sample to meet requirement specified in the national standard tensile and compression tests, the process can be qualified performance verification tests of materials or products .
The machine host is frame structure, between and the front end and the rear end of the frame is tensile space, through oil cylinder moving back and forth adn pin position to adjust the test space .

3. oil source system
whole cabinet oil source control cabinet composed of the pump stations, electro-hydraulic proportional valve, data acquisition systems, computer and other components integrated, simple and convenient at operation, maintenance, protection, transportation
Seals, tubing using well-known brand, to ensure lasting without no leakage
Power source using Italian MARZOCCHI gear pump, ensure long-term use system pressure stable, smooth cylinder operation. Systems designed with the energy-saving, reliable, safe and environmentally friendly, the oil supply system components are used in environmental compliance, low noise level during operation.

4. Main technical parameter
1. Maximum test force: 300kn/600kn/1000kn/2000kn/3000kn/5000kn
2. Force range: 2%-100%FS
3. Test force accuracy: 1 class ( ±1%)
4. Max tensile space:10m or customized
5. Displacement error: ± 0.05%
6. Displacement resolution: 0.005 mm;
7. Piston stroke: 0-1000mm or customized
8. Max piston speed; 200mm/min
9. Bolt Distance: 500mm
10.. Effective width space: 800mm
11. Grip: Bolt type or customized
12.Power suppy: 5kVA(AC 380V)+ 0.5kVA(AC 220V); three phrase four line,

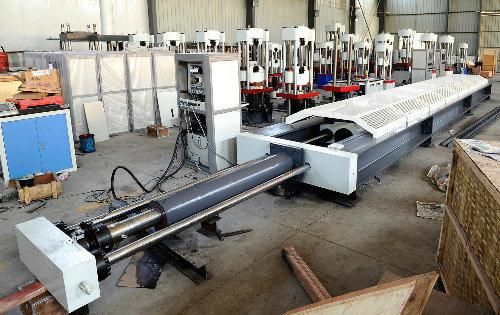

Real Pictures:

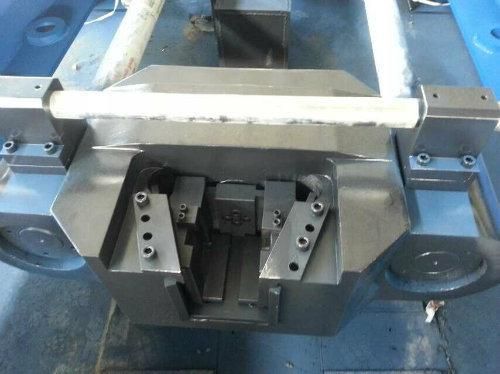

Hydraulic Automatic Wedge Grip

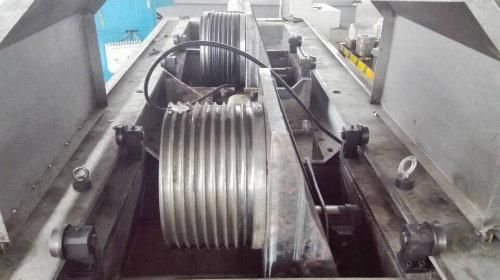

Winding grip:

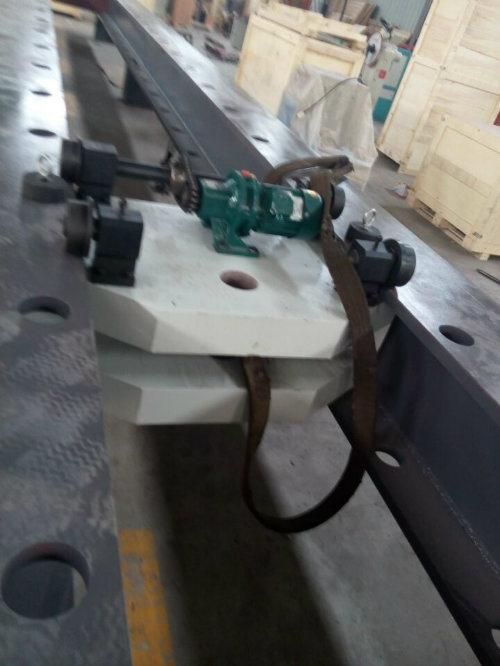

Bolt Grip:

CE Certificate:

Company introduction:
