• Model NO.：STQY1-3
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Electric
• Weight：180
• Power Source：Can Customized
• Oil Cylinder Position：No
• Application：It Is a Collection Compression and Infiltration
• Specimen′s Dimensions：30cm2
• Height：2cm Duplex
• Max.Soil Pressure：Consolidation Pressure 1000kpa
• Osmotic Pressure：200kpa
• Min. Output Transducer：1kpa
• Transport Package：Wooden Case
• Specification：97x60x121
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STQY1-3 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Weight 180 Power Source Can Customized Oil Cylinder Position No Application It Is a Collection Compression and Infiltration Specimen′s Dimensions 30cm2 Height 2cm Duplex Max.Soil Pressure Consolidation Pressure 1000kpa Osmotic Pressure 200kpa Min. Output Transducer 1kpa Transport Package Wooden Case Specification 97x60x121 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

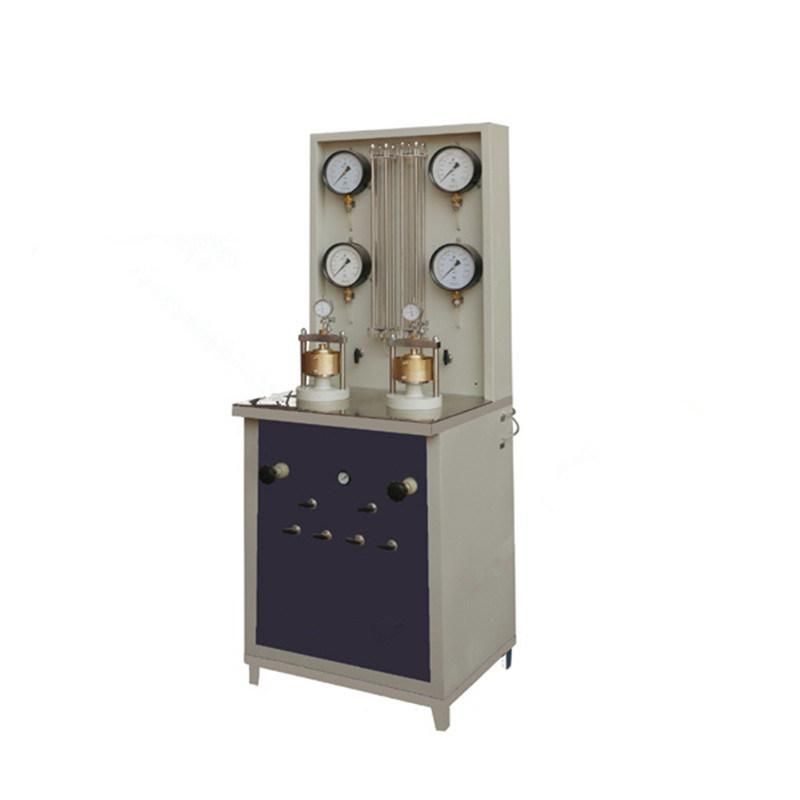

STQY1-3 Improved Consolidation Apparatus

Application: It is a collection compression and infiltration.
It can determine vertical consolidation and infiltration (Cr).
It can determine the vertical osmotic coefficient of the foundation soil (Kr).

Specimen's dimensions	30cm2
height	2cm  Duplex
Max.soil pressure	Consolidation pressure 1000KPa Osmotic pressure 200KPa
Min. output transducer	1KPa
