Hv Switch-Gear Circuit Breaker Timing Tester Automatic CB Circuit Breaker Dynamic Characteristics Analyzer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：1 Year
  • Power Source：AC220V
  • Transport Package：Plywood Case for Circuit Breaker Tester
  • Specification：37KG
  • Trademark：CHONGQING GOLD
  • Origin：Chongqing, China

Base Info

  • Model NO.：GDGK-307
  • HS Code：9030849000
  • Production Capacity：1000piece,Month

Description

12 channels for time measurement3-channel supports both the time contact and resistance contact time 6-channel isolated contacts for cascaded unit measurement of poleTime measurementRange: 4000ms Error :< 0.1ms Resolution: 0.01msTravel measurement according to sensorLinear resistance sensor:
Measurement range: 0~250mm; resolution: 0.01mm; error:<0.5mm
Measurement range: 0~25mm; resolution: 0.01mm; error:<0.05mm Angle resistance sensor:
Measurement range: 0~360°; resolution: 0.01°; error:<0.5°Pre-insertion Resistance MeasurementRange: 50~5000ohm; error :<1%RDG+2DDynamic resistance measurementTest current: 25~100A Measurement error :< 1%RDG+2DContact resistance measurementRange:0--10mohm ; Error<0.5%RDG+0.05%FS Range: 0-2mohm; Error:<0.5%RDG+2DSpeed measurement250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D 25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D Angle sensor: 0~20m/s; error:<0.5%RDG+2D Acceleration sensor: 0~20m/s; error:<5%RDG+2DCoil current measurementRange: 0~20A; resolution: 0.001A; error:<0.01AVibration measurementRange: 0~5000G; error:<3%Internal DC power sourceVoltage: 12~265V; current:0~20A
Application Field

-- Hv Switch-Gear Circuit Breaker Timing Tester Automatic CB Circuit Breaker Dynamic Characteristics Analyzer

Hv Switch-Gear Circuit Breaker Timing Tester Automatic CB Circuit Breaker Dynamic Characteristics Analyzer

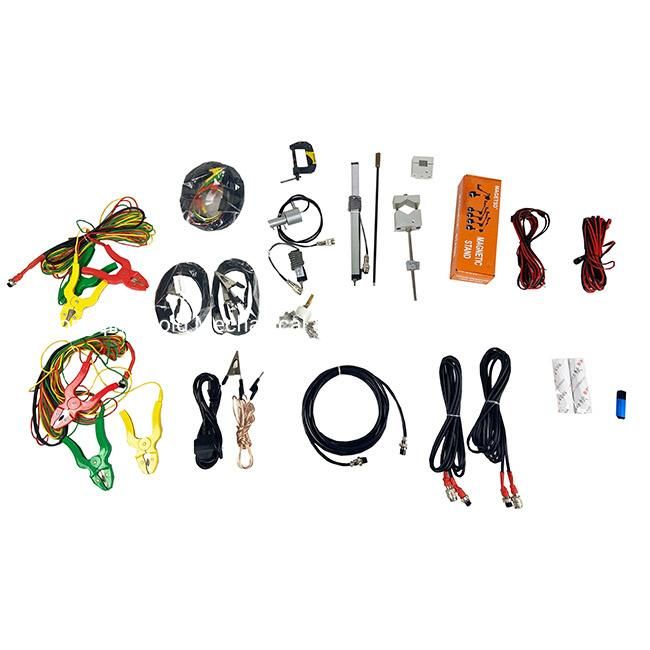

Spare Parts

-- Hv Switch-Gear Circuit Breaker Timing Tester Automatic CB Circuit Breaker Dynamic Characteristics Analyzer

Hv Switch-Gear Circuit Breaker Timing Tester Automatic CB Circuit Breaker Dynamic Characteristics Analyzer
