• Model NO.：HMZGF
• Usage：High Voltage Generator
• Output Type：DC
• Output Voltage：60-300kv
• Output Current：2 3 5 10mA
• Frequency：50Hz
• Ripple Factor：<=0.5%
• Altitude：Below 1500m
• Product Name：DC Hipot Tester
• Ripple：≤0.5%
• Voltage Precision：1% ±1 Word
• Over Voltage Rectify Accuracy：<=1.0%
• Transport Package：Wooden Box with Foam Inside
• Trademark：DC Hipot
• Origin：Hubei, China(Mainland)
• HS Code：903033900
• Production Capacity：200sets,Month

Basic Info.

Model NO. HMZGF Usage High Voltage Generator Output Type DC Output Voltage 60-300kv Output Current 23510mA Frequency 50Hz Ripple Factor <=0.5% Altitude Below 1500m Product Name DC Hipot Tester Ripple ≤0.5% Voltage Precision 1% ±1 Word Over Voltage Rectify Accuracy <=1.0% Transport Package Wooden Box with Foam Inside Trademark DC Hipot Origin Hubei, China(Mainland) HS Code 903033900 Production Capacity 200sets/Month

Product Description

High Voltage Test DC Hipot Tester DC Withstand voltage  Tester
I. Application

1) MOA lightning-arrester HV DC hi-pot DC testing
2) HV DC hi-pot and leak current measurement for HV electrical equipment, such as transformer, switchgear, and oil-type power cable.
3) Leak current measurement for water-cooling DC power generators.
4) High-stability DC HV generators with high-precision DC voltage-divider for DC HV standardization.

II. Main Feature1.dc high voltage generator(dc high voltage tester) is portable at site,light in weight & small size
2.With AIPWM technology, avoid the inaccuracy linearity of PWM ,High precision, exact measure,and Ripple factor ≤0.5 %
3.AI Zinc Oxide arrester and oil-immersed transformer measure function ,test report can be saved directly,accuracy ≤0.5 %, 75% UDC 1mA function button.
4.with AI technology to set over-voltage protection and over-current protection instead of digital dial switch which can only set voltage value,Error ≤1% .
5.Full range of smooth voltage regulation, voltage regulation precision ≤1%, stability ≤1%, voltage and current error ≤ 1.0%±1
6.With the total time T1 and segment timing T2, and arbitrary voltage, current timing function
7.dc high voltage generator(dc high voltage tester) adds a calendar and time function

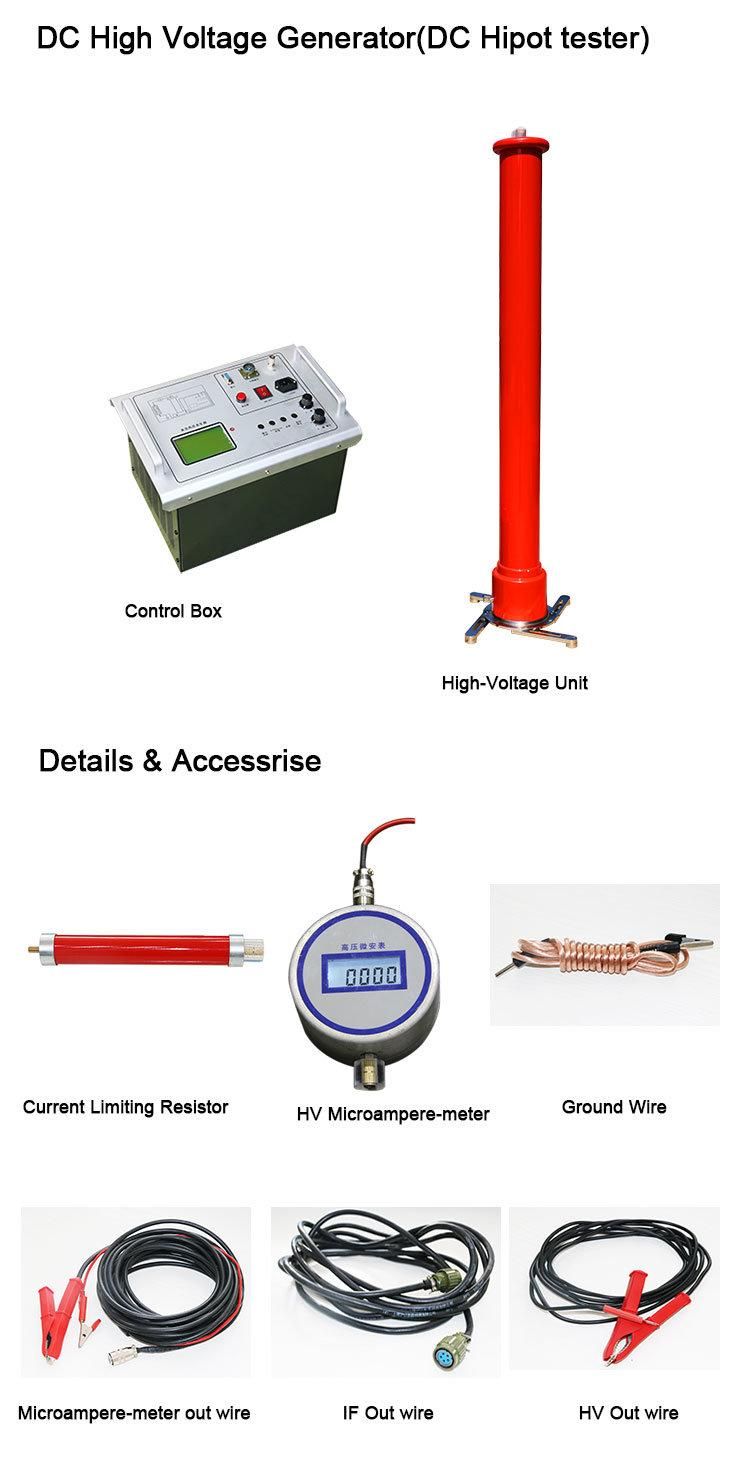

Detailed Images of DC Hipot Test Set

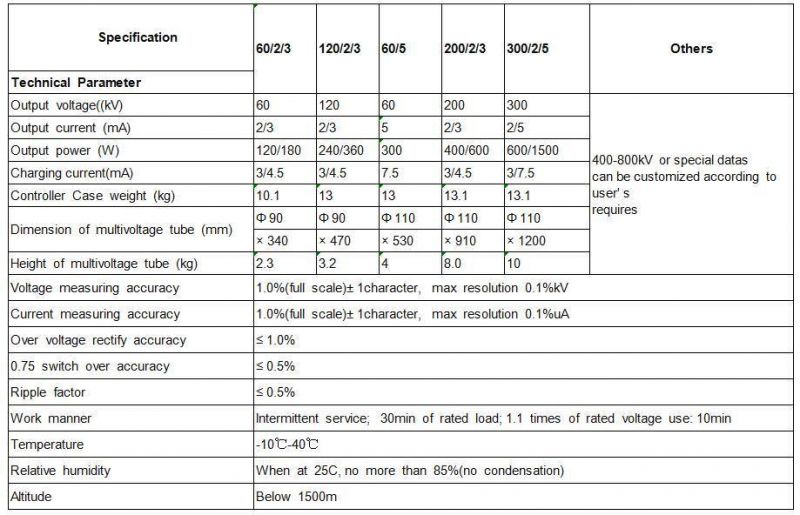

III. Technical parameters of DC Hipot Test Set

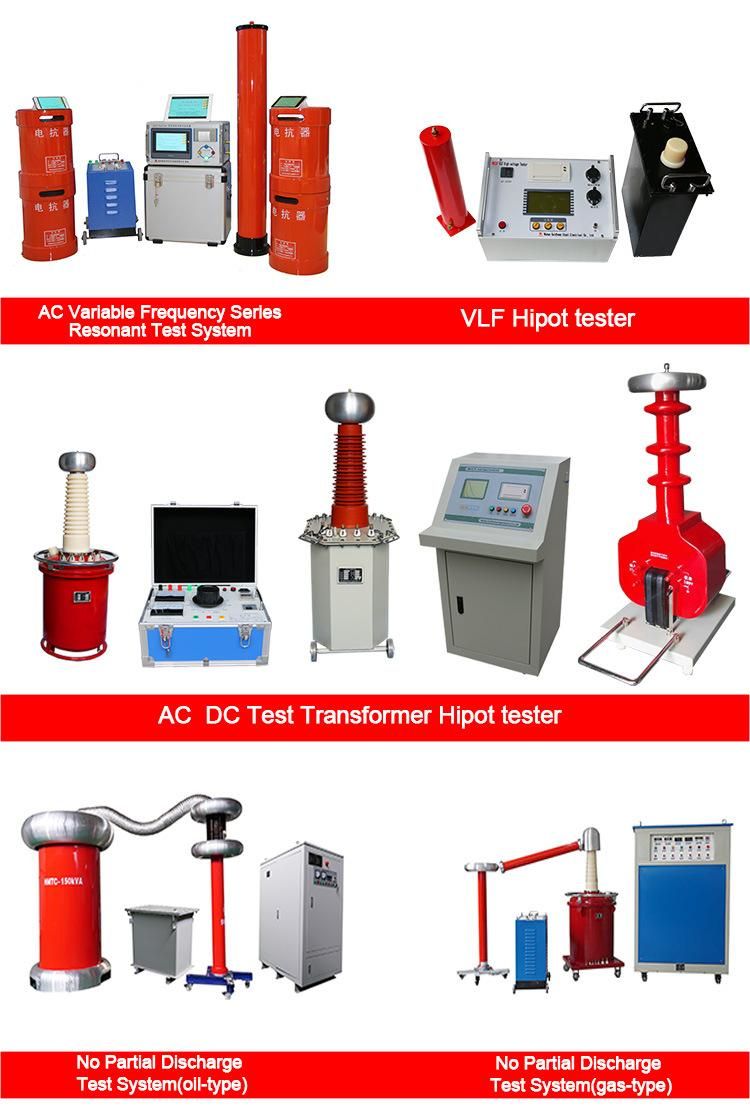

Similar product
