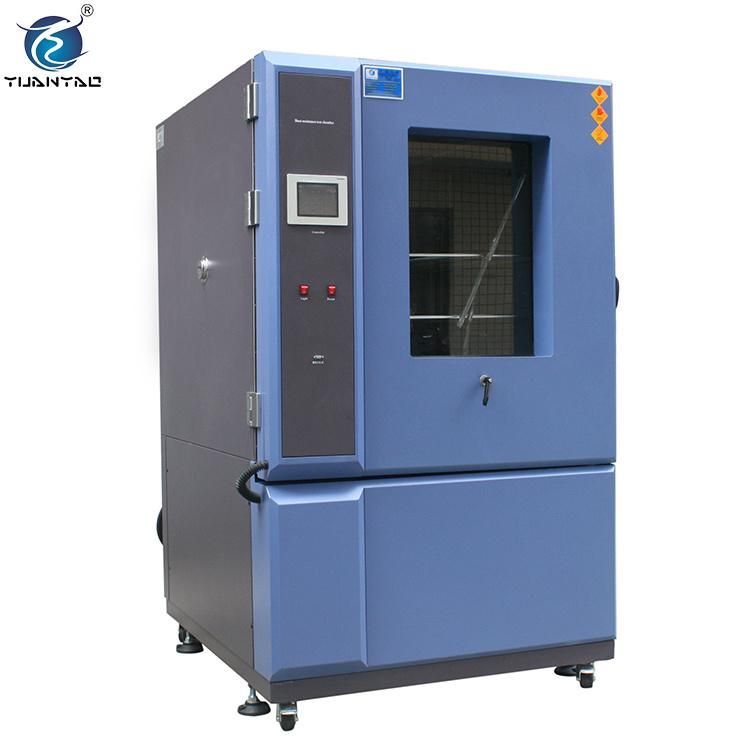

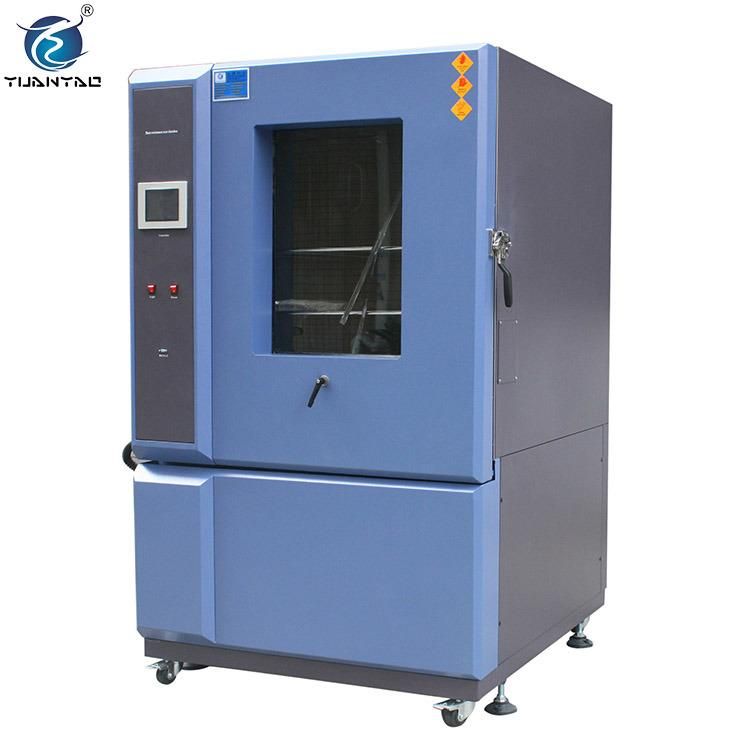

• Model NO.：YSDT-1000
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Inner Chamber Size：100*100*100cm
• Testing Temperature Range：20c +,_ 15c
• Humidity Range：45%~85%Rt
• Test Total Time：2h
• Rest Time：15 Min
• Swirl Time：5s
• Exterior Chamber Time：Cold Rolled Plate + Powder Coating
• Interior Chamber Material：SUS#304 Stainless Steel
• Power Supply：AC 3 Phase 380V
• Transport Package：Standard Export Export Wooden Case
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：8504101000
• Production Capacity：100 Sets,Month

ModelYSDT-1000-FYSDT-1000-C(IEC-529)Internal Dim.W×H×D(mm)1000×1000×10001000×1000×1000External Dim.W×H×D(mm)1350×1950×13501350×1950×1350Testing TypeF1F2F3IEC60529C1C2Concentration of dust(mg/m3)Above 60000Above 3000Above 100Above 5000Above 100Testing Temp.20°C±15°CHuimidi.Range45%RH~85%RHFlow rate of dust(m/s)No Limited5m/s10m/sTesting TimeSwirl time              5S or other                             NO                                            Rest time15min or other              Total time5H8H8H2H6HMaterialExteriorSUS#304+Powder CoatedInteriorSUS#304Other ComponentsChamber lamp,Wiper,Casters with adjusters                                               Power Source(K.W.)AC 1Ψ 220V 60/50Hz   4KW
