• Model NO.：WAL-2000
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：10000kg
• Power Source：AC380V,220V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：300kn,600kn,1000kn,2000kn,3000kn,5000kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Safe：with Protection Net Over Loading Limit
• Grip：Bolt or Hydraulic or Winding Clamp
• Bolt Distance：500mm
• Max Piston Speed：200mm,Min
• Displacement Error：0.05%
• Certificate：CE ISO
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：10002*900*1500mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9031809090
• Production Capacity：1set,Month

Basic Info.

Model NO. WAL-2000 Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Computer Control Weight 10000kg Power Source AC380V/220V Oil Cylinder Position Under Application Steel Rebar, Tube, Metal, Copper, etc Capacity 300kn/600kn/1000kn/2000kn/3000kn/5000kn Test Range 2%~100% Color White, Blue or Customized Safe with Protection Net Over Loading Limit Grip Bolt or Hydraulic or Winding Clamp Bolt Distance 500mm Max Piston Speed 200mm/Min Displacement Error 0.05% Certificate CE ISO Transport Package Standard Exporting Plywood Case with Free Fumigati Specification 10002*900*1500mm Trademark HST or OEM Origin China HS Code 9031809090 Production Capacity 1set/Month

Product Description

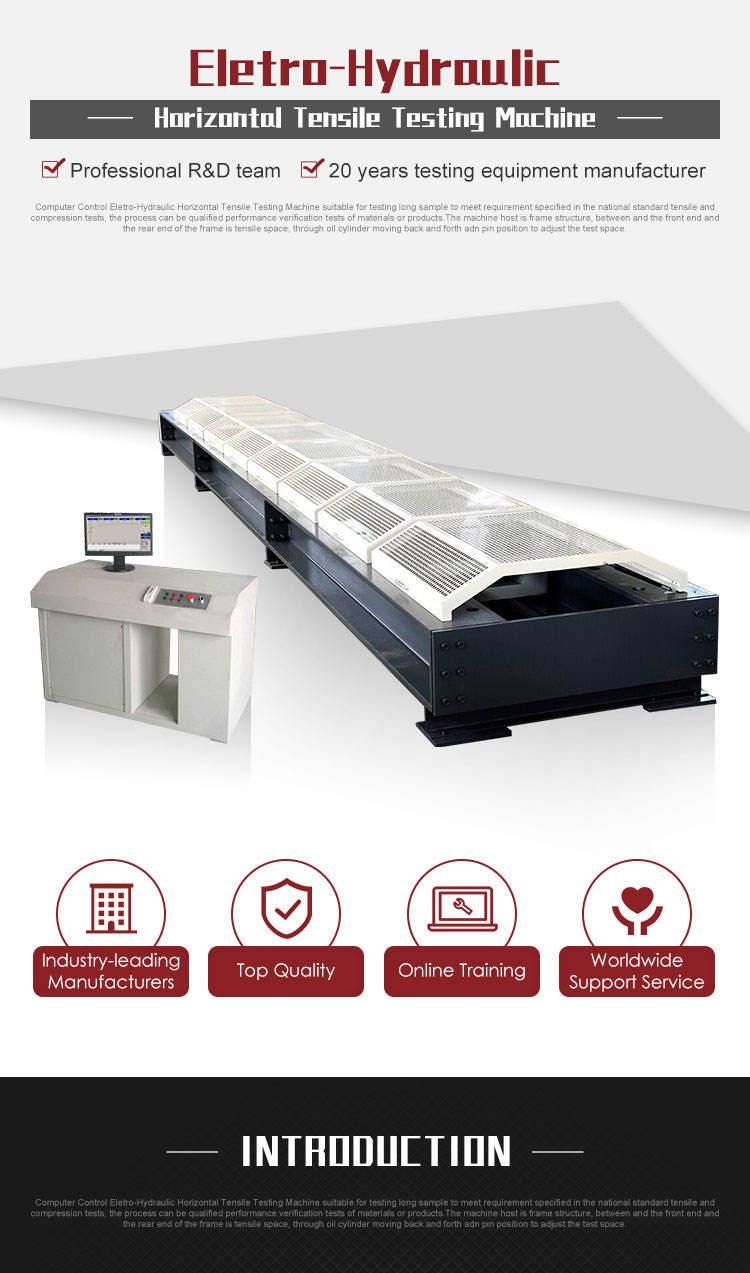

Wire Rope Horizontal Tensile Testing Machine/Testing Bed

1. Application :
WAW-L series Computer Control Eletro-Hydraulic Horizontal Tensile Testing Machine adopting hydraulic drive, electro-hydraulic servo control technology, computer data acquisition and processing, enabling closed-loop control and automatically test high-precision test equipment,mainly conposed by the host, oil source (hydraulic power source), meansuring and control systems and test grip, the maximum test force 2000kN with 1 class test accuracy

2. Host

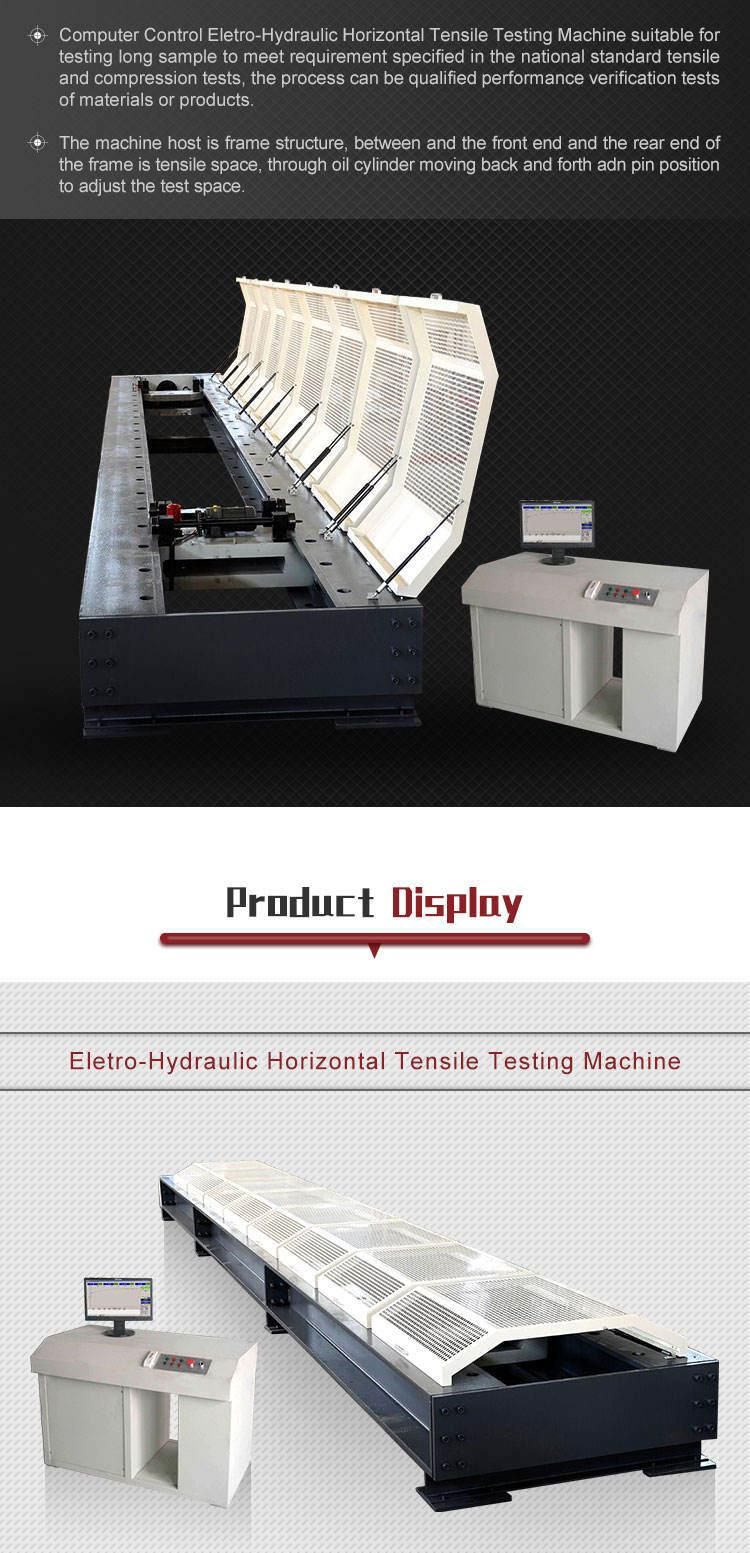

It is a suitable for testing long sample to meet requirement specified in the national standard tensile and compression tests, the process can be qualified performance verification tests of materials or products .
The machine host is frame structure, between and the front end and the rear end of the frame is tensile space, through oil cylinder moving back and forth adn pin position to adjust the test space .

3. oil source system

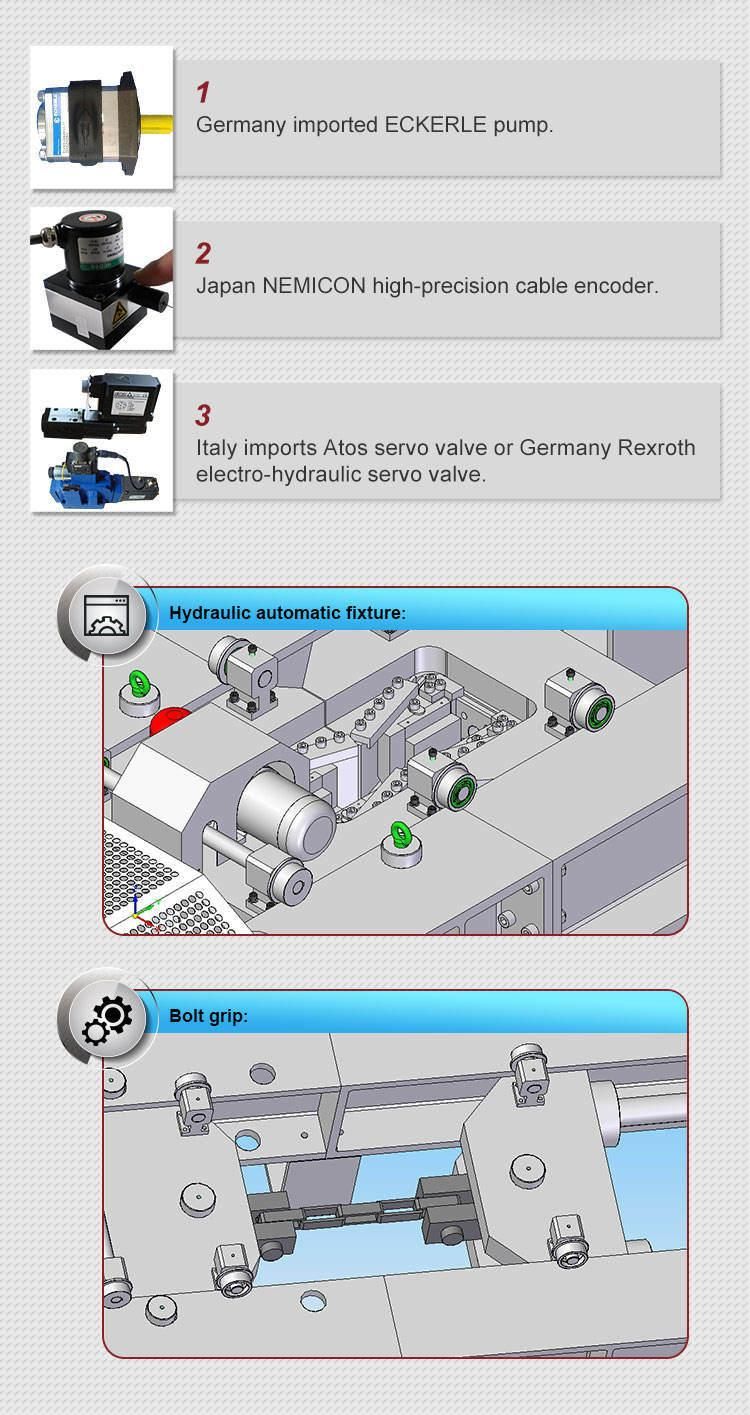

whole cabinet oil source control cabinet composed of the pump stations, electro-hydraulic proportional valve, data acquisition systems, computer and other components integrated, simple and convenient at operation, maintenance, protection, transportation
Seals, tubing using well-known brand, to ensure lasting without no leakage
Power source using Italian MARZOCCHI gear pump, ensure long-term use system pressure stable, smooth cylinder operation. Systems designed with the energy-saving, reliable, safe and environmentally friendly, the oil supply system components are used in environmental compliance, low noise level during operation.

4. Main technical parameter
1. Maximum test force: 300kn/600kn/1000kn/2000kn/3000kn/5000kn
2. Force range: 2%-100%FS
3. Test force accuracy: 1 class ( ±1%)
4. Max tensile space:10m or customized
5. Displacement error: ± 0.05%
6. Displacement resolution: 0.005 mm;
7. Piston stroke: 0-1000mm or customized
8. Max piston speed; 200mm/min
9. Bolt Distance: 500mm
10.. Effective width space: 800mm
11. Grip: Bolt type or customized
12.Power suppy: 5kVA(AC 380V)+ 0.5kVA(AC 220V); three phrase four line,

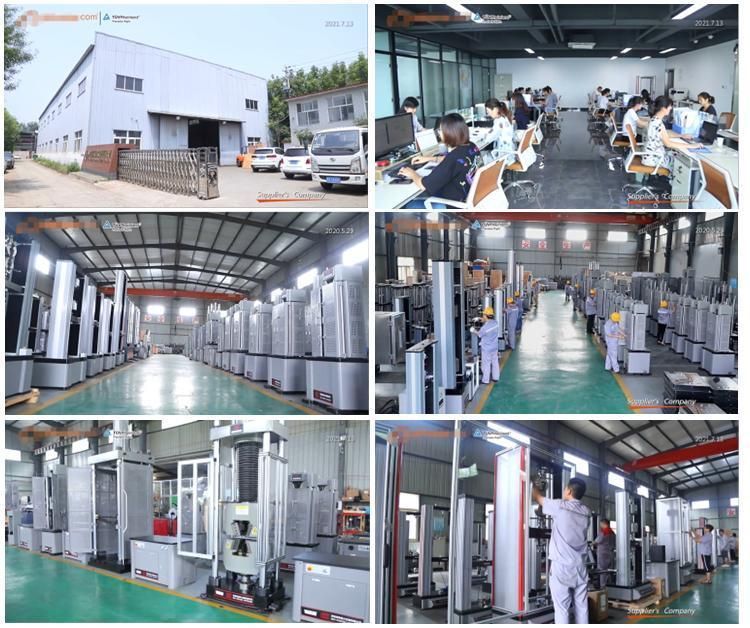

 WORK SHOP  EXHIBITON  OUR Customers all over the world    CERTIFICATE  Packaging&Shipping
