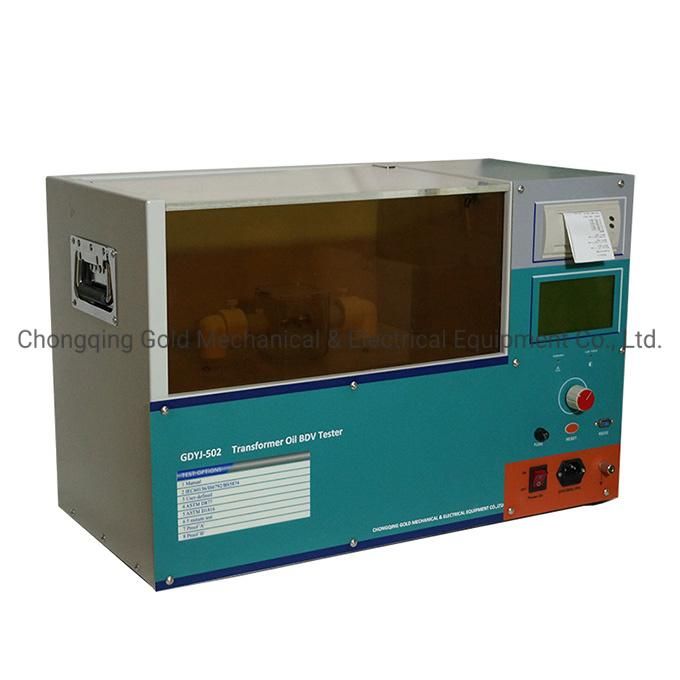

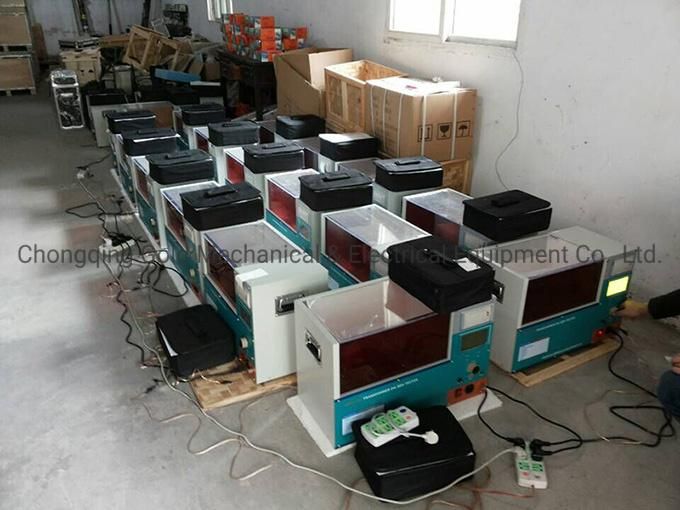

80kv 100kv Insulating Oil Breakdown Voltage Test Set

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Output Voltage：AC 0~80kv,100kv
  • Rate of Voltage Rise：2kv,S±10%
  • Measuring Precision：3%Rdg+0.3%Fs
  • Test Times Setting：1-9
  • Display：256*128 LCD
  • Transport Package：Wooden Case

Base Info

  • Model NO.：GDYJ-502
  • Specification：71*42*53CM
  • Trademark：Gold
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：300PCS,Month

Description

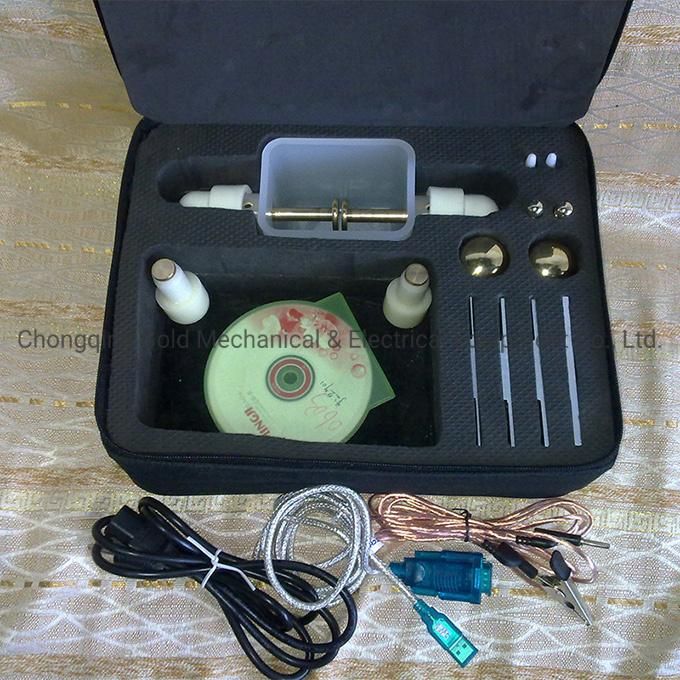

1   Breakdown test of user-defined2   Proof test3   Calibration interface for customers4   Unloading data to PC and making word report automatically.5   Result print

Specifications:

1Output voltageAC 0~80KV/AC 0~100KV2Rate of voltage rise2KV/s±10%3Measuring precision3%RDG+0.3%FS4Test times setting 1~95Mixing time setting 0~99 second6Waiting time setting0-9 minute 59second7Maximum storage capacity100 groups of test data8Test standardsIEC601569Display256*128 LCD10Rated power supplyAC 220V±10% 50Hz/60Hz11Environment temperatures 0-50°C   12Relative humidity≤80%RH13Size   420×380×410mm314Weight28kg


GDYJ Series Insulating Oil Dielectric Strength Tester

Model

GDYJ-501

GDYJ-502

GDYJ-502A

Output Voltage

AC 0~80KV/0~100KV

AC 0~100KV

AC 0~80KV

Rate of Voltage Rise

2KV/s±10%

0.5/2/3/5 KV/s±5%

2KV/s±10%

Max. Time Setting

0~9mins

9mins

0~99 seconds

Test Precision

3% RGD+0.3%FS

3% RGD+0.3%FS

3% RGD+0.3%FS

Max. Data Storage

100 groups

100 groups

50 groups

Power Supply

AC220V±10% 50/60Hz

AC220V±10% 50/60Hz

AC220V±10% 50/60Hz

Environment Temp.

0~50Centigrade

0~50Centigrade

0~50Centigrade

Related Humidity

<80%RH

<80%RH

<80%RH

Dimension

420*380*410mm

620*430*330mm

420*380*410mm

Weight

28kg

41kg

28kg
