• Model NO.：GDBC-901
• Turn Ratio Resolution：0.0001
• Test Voltage：0-80kv
• Product Name：Transformer Turns Ratio Tester Meter
• Transport Package：Wooden Case
• Specification：57*44*33CM
• Trademark：Gold
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：300PCS,Month

Basic Info.

Model NO. GDBC-901 Turn Ratio Resolution 0.0001 Test Voltage 0-80kv Product Name Transformer Turns Ratio Tester Meter Transport Package Wooden Case Specification 57*44*33CM Trademark Gold Origin Chongqing HS Code 9031809090 Production Capacity 300PCS/Month

Product Description

TTR tester three phase power tester transformer turn ratio tester meter

Product Introduction:

 GDBC-901 TTR tester three phase power tester transformer turn ratio tester meter is designed according IEC76-1 and IEC60044.

GDBC-901 TTR tester three phase power tester transformer turn ratio tester meter could be applied to test the turns ratio and group vector of single or three phase transformer.

Also the connection group of three phase transformer could be calculated with the ratio. All parameters are measured in one test for three phase transformer.

Specifications:

1	Item Name	GDBC-901 TTR Tester Three Phase Power Tester  Transformer Turns Ratio Tester Meter
2	Ratio measurement range	1-10000
3	Group measurement	1~12
4	Phase measurement error	1 degree
5	Ratio measurement error	1-2000 ± 0.2%RDG   2000-10000  ± 0.5%RDG
6	Test voltage	0~80V, frequency 50Hz
7	Power supply	AC220V ± 10%, 50Hz/60Hz
8	Environment temperature	0-50°C
9	Humidity	≤85%R
10	Dimension	58*45*36CM
11	Weight	22Kg



Main Functions:

1) Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;

2) Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;

3) Polarity testing: single phase power transformer, three phase power transformer, CT, PT;

4) Vector group testing: three phase power transformer;

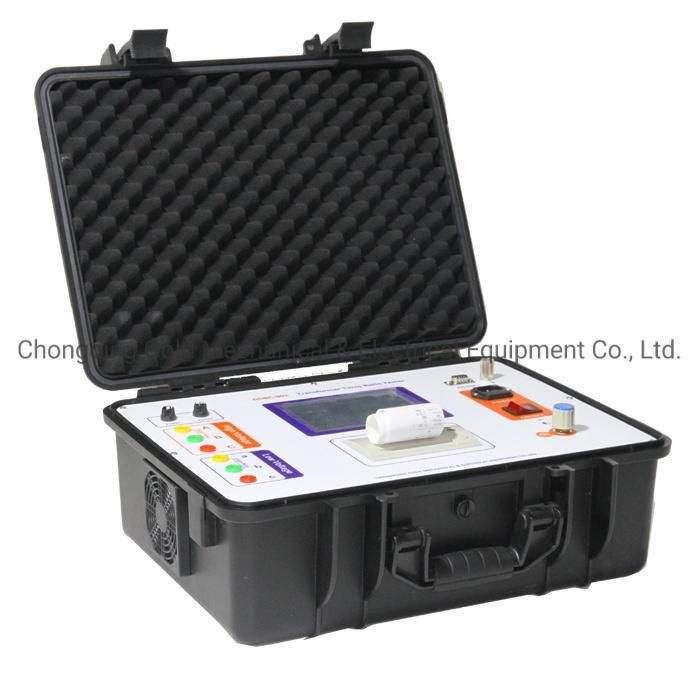

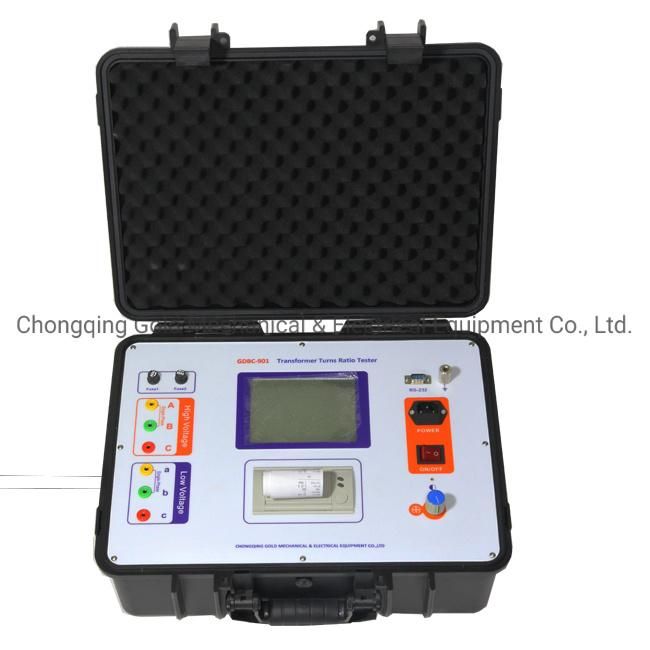

TTR tester three phase power tester transformer turn ratio tester meter Product details:
